eDP Display Modules for Embedded Computing and Industrial HMI Systems
Embedded DisplayPort TFT LCD modules for industrial PCs, panel PCs, embedded systems and high-resolution HMI projects.
eDP displays help embedded product teams build internal display interfaces when the host platform supports Embedded DisplayPort output.
LMTEK provides eDP display module options for industrial PCs, panel PCs, embedded computers, high-resolution HMIs and custom display projects. Your eDP display project can be selected by size, resolution, eDP lane count, EDID / AUX behavior, connector type, power sequence, backlight control, touch option, brightness, cable route and mechanical fit.
Project Review Focus
OEM / ODM Ready
Custom eDP solutions

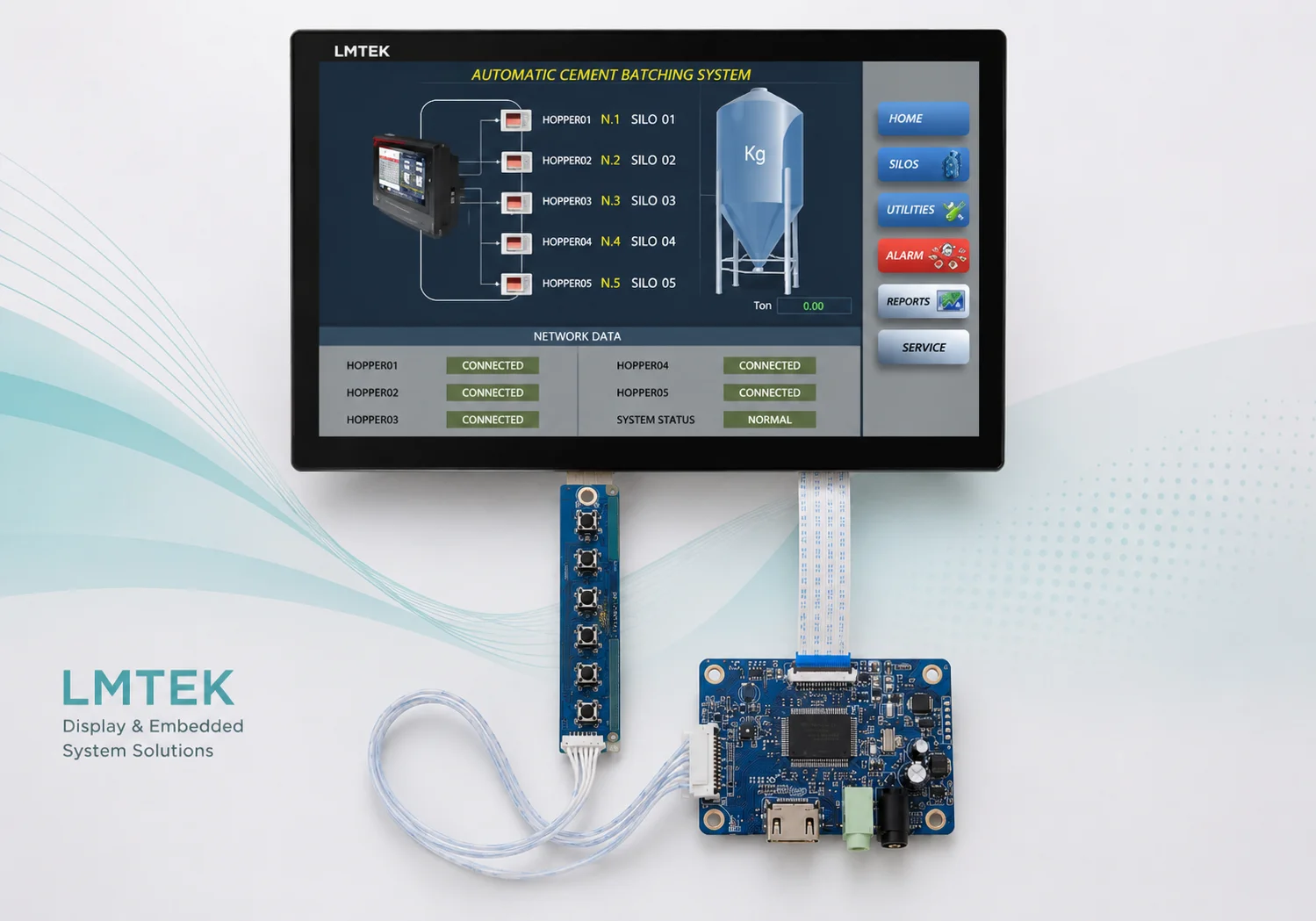

Embedded DisplayPort TFT LCD Modules for Industrial Computing Platforms
LMTEK supplies eDP display modules for product teams developing industrial PCs, panel PCs, embedded computers and high-resolution HMI systems. An eDP TFT LCD is typically selected when your host platform supports Embedded DisplayPort output and your project needs a panel-level display interface for production-oriented integration.
Typical Selection Points
Typical selection points include display size, resolution, eDP lane configuration, eDP version / link rate, EDID, AUX channel, TCON / driver IC, connector type, cable route, power sequence, backlight enable, PWM dimming, touch support, brightness and mechanical structure.
OEM / ODM Project Support
If you are looking for an eDP display manufacturer for an OEM/ODM project, LMTEK can help match display, touch, backlight, cable and mechanical options to your host platform, enclosure design and sample validation timeline.
This helps your team reduce interface mismatch, cable routing risk, backlight control issues and display bring-up delays before moving into validation.
Reduce Interface Mismatch
Pre-validated eDP lane and EDID configuration for your host platform.
Avoid Cable Routing Risk
Connector type, cable route and power sequence matched to your enclosure.
Backlight Control Ready
Backlight enable and PWM dimming aligned to your system design.
Faster Bring-Up
Reduce display bring-up delays before entering validation phase.
What Is an eDP Display Module?
An eDP display module is a TFT LCD module that uses eDP, or Embedded DisplayPort, as the internal display interface between the host system and the panel.
eDP is commonly used in embedded computing platforms, industrial PCs, panel PCs and high-resolution display systems. Key design points may include eDP lane count, eDP version / link rate, AUX channel, EDID, panel detection, power sequencing, backlight enable, PWM dimming, connector definition and cable routing.
Key eDP Design Parameters
Design Note: Final eDP lane configuration, link rate, EDID behavior, backlight control, connector definition and power sequence should always be checked by the confirmed model datasheet and host platform documentation.
eDP vs Other Display Interfaces
How eDP compares for embedded and industrial applications
eDP is usually a panel-level internal display interface rather than a controller-board-based external input like HDMI.
eDP is often selected for newer embedded computing platforms and high-resolution panel integration compared with LVDS.
eDP is more commonly associated with industrial PC, panel PC and higher-performance embedded computing platforms compared with MIPI DSI.
Common Application Platforms
When to Choose an eDP Display
Choose an eDP display when your industrial PC, embedded computer, SBC or panel PC platform supports Embedded DisplayPort output and your product needs internal display integration.
eDP displays are often used when your project requires high-resolution UI, industrial computing performance, panel-level connection and a production path without an HDMI controller board.
Interface Fit at a Glance
| Choose eDP Display When | Consider Other Interfaces When |
|---|---|
|
Your host platform supports Embedded DisplayPort output
|
Your system only supports HDMI output
|
|
Your project needs high-resolution panel-level integration
|
Your project needs faster controller-board-based validation
|
|
Your product is an industrial PC, panel PC or embedded computer
|
Your HMI is better suited for LVDS industrial panels
|
|
Your design needs internal display connection without HDMI controller board
|
Your compact SoC platform is designed around MIPI DSI
|
|
Your project requires production-oriented display integration
|
Your UI is simple and can use SPI, MCU or RGB
|
eDP is not automatically the best choice for every display project. For fast GUI validation, HDMI may be more practical. For mature industrial HMI panels, LVDS may be suitable. For compact SoC-based designs, MIPI DSI may be a better fit.
Key Advantages of eDP Displays
Panel-Level Interface for Embedded Computing
eDP displays support internal panel-level display integration for industrial PCs, panel PCs and embedded computing systems. This helps your team build production-oriented display assemblies without relying on an external HDMI controller-board path.
Suitable for High-Resolution Industrial Display Systems
eDP TFT LCD modules are often considered for high-resolution HMI, industrial computing and panel PC projects. Final suitability depends on panel model, eDP lane configuration, host platform, power design and backlight requirements.
Reduced Need for HDMI Controller Board
Compared with HDMI TFT display modules, an eDP display can reduce the controller-board-based input path when the host system supports eDP output. This may help simplify the internal display architecture for selected production programs.
Display, Touch, Backlight and Mechanical Alignment
LMTEK helps align eDP display selection with touch matching, backlight control, connector definition, cable routing, front-panel structure and enclosure fit. This helps your team validate the display as part of the complete embedded computing interface.
Typical Applications of eDP Displays

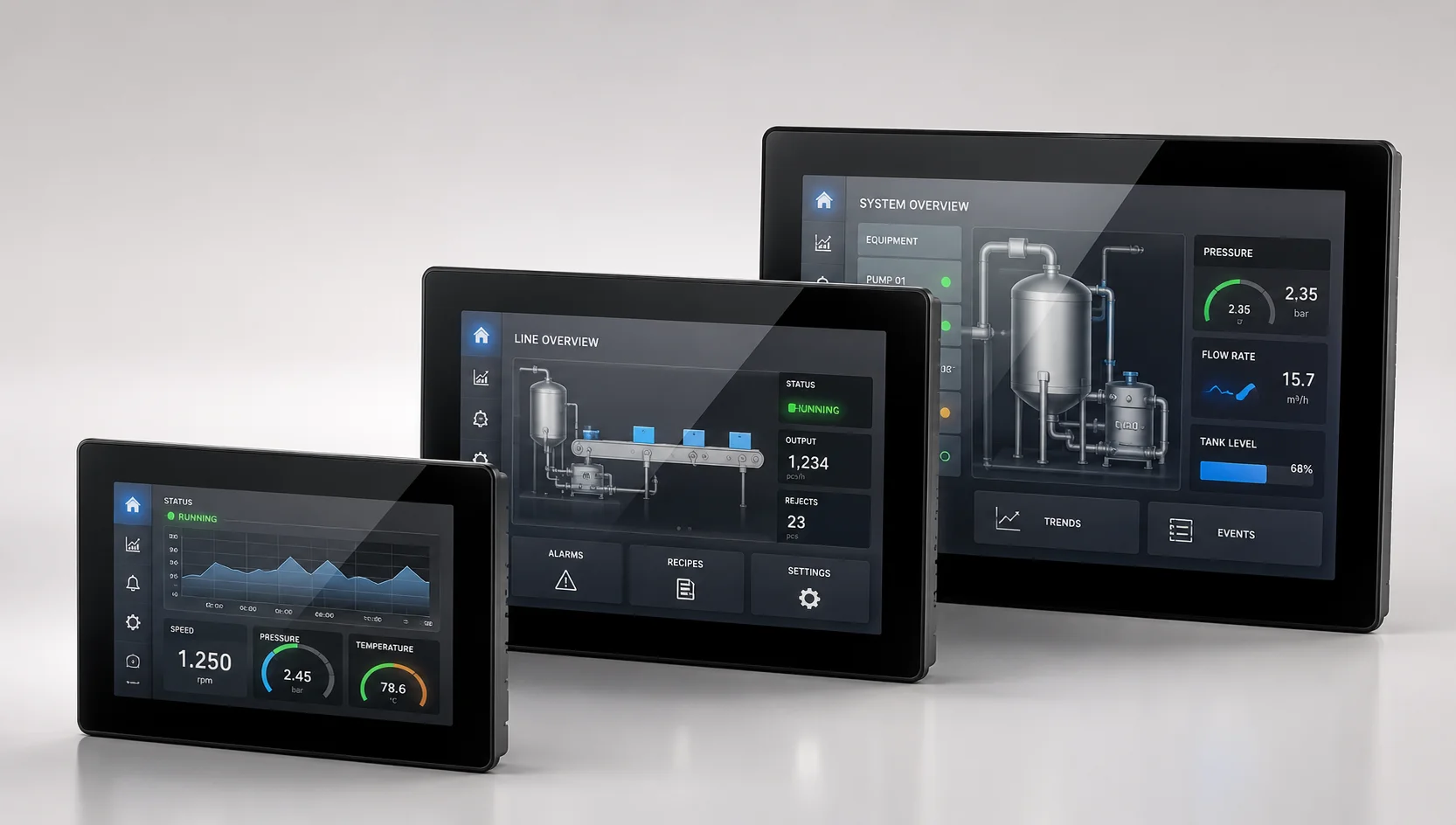

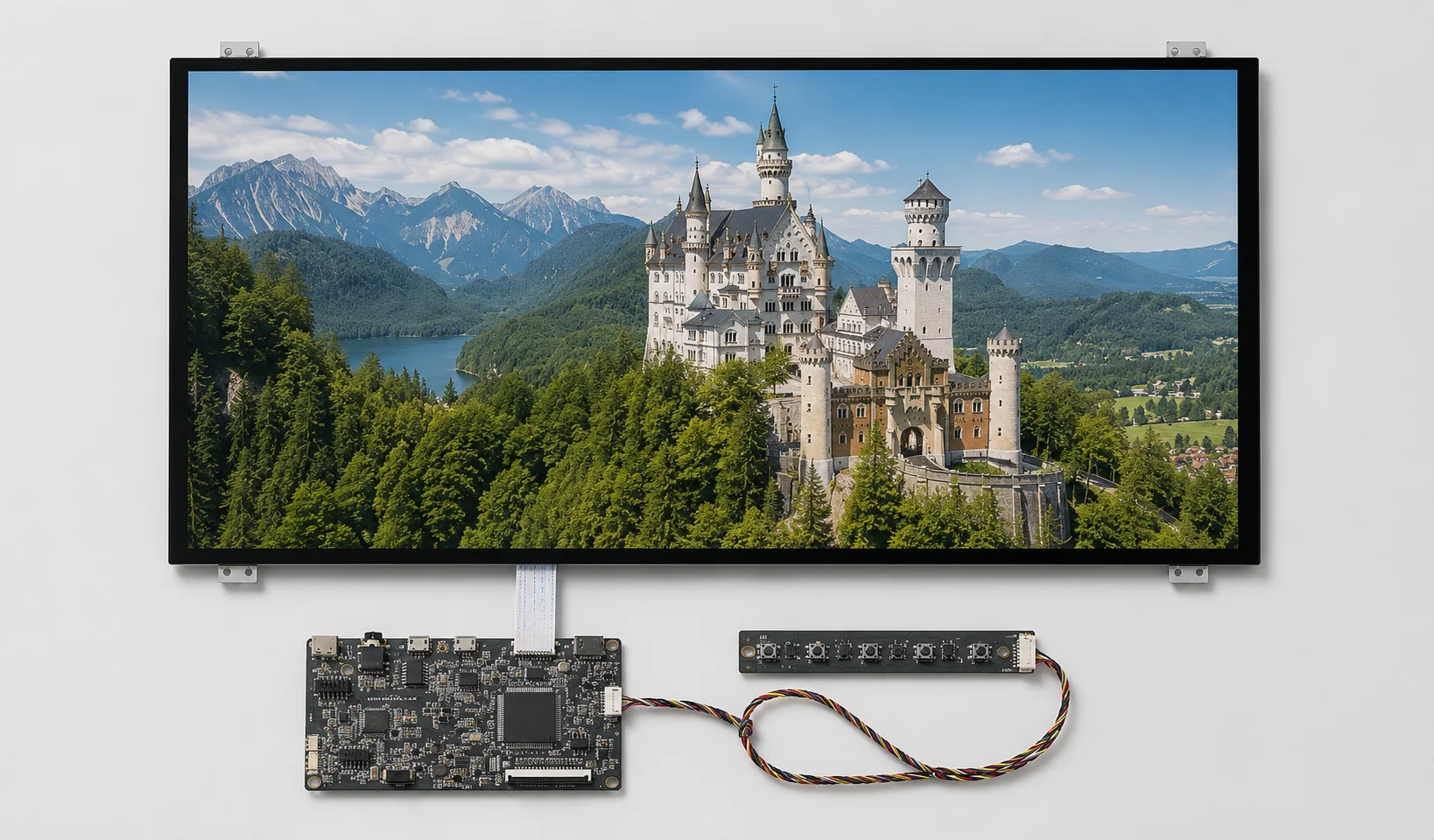

eDP Display for Industrial PCs
eDP displays can be used in industrial PCs, embedded computers and local operator terminals that require internal high-resolution display integration.

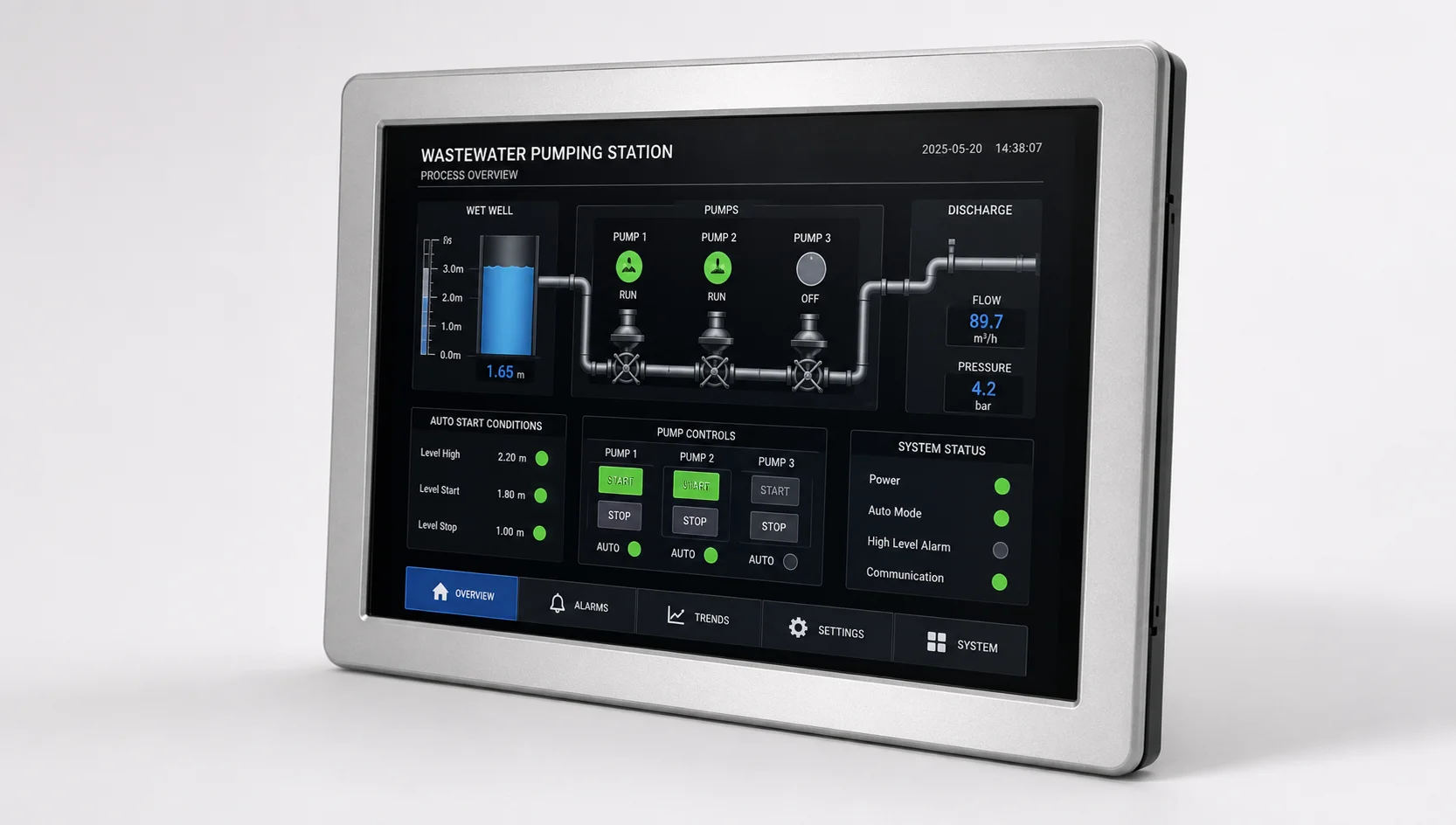

eDP TFT Display for Panel PC Projects
eDP TFT display modules are suitable for panel PCs, integrated HMIs, machine control stations and equipment front panels.

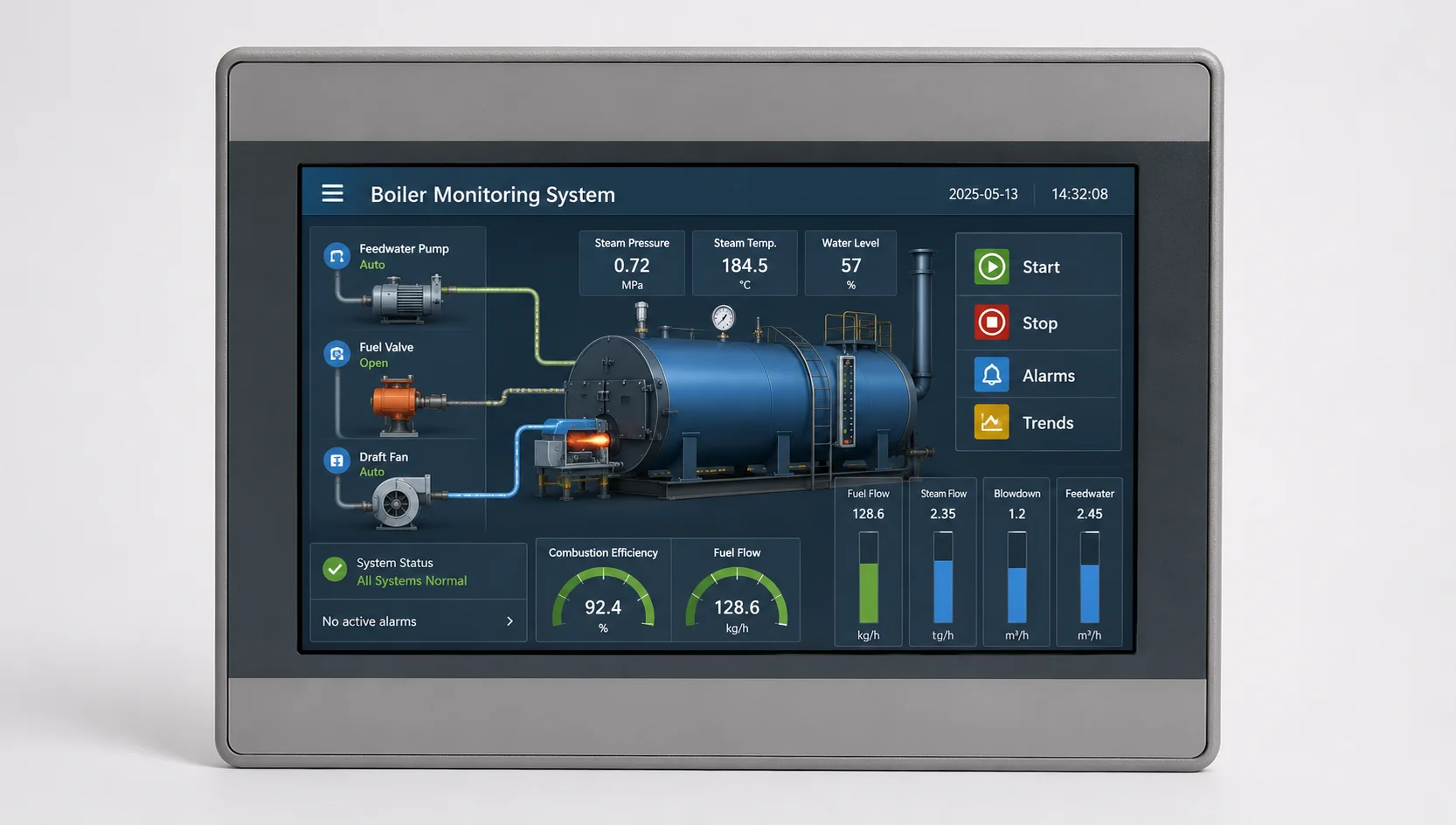

eDP Display Module for High-Resolution HMI
eDP display modules can support high-resolution UI, graphical dashboards, data visualization interfaces and multi-pane industrial display layouts.

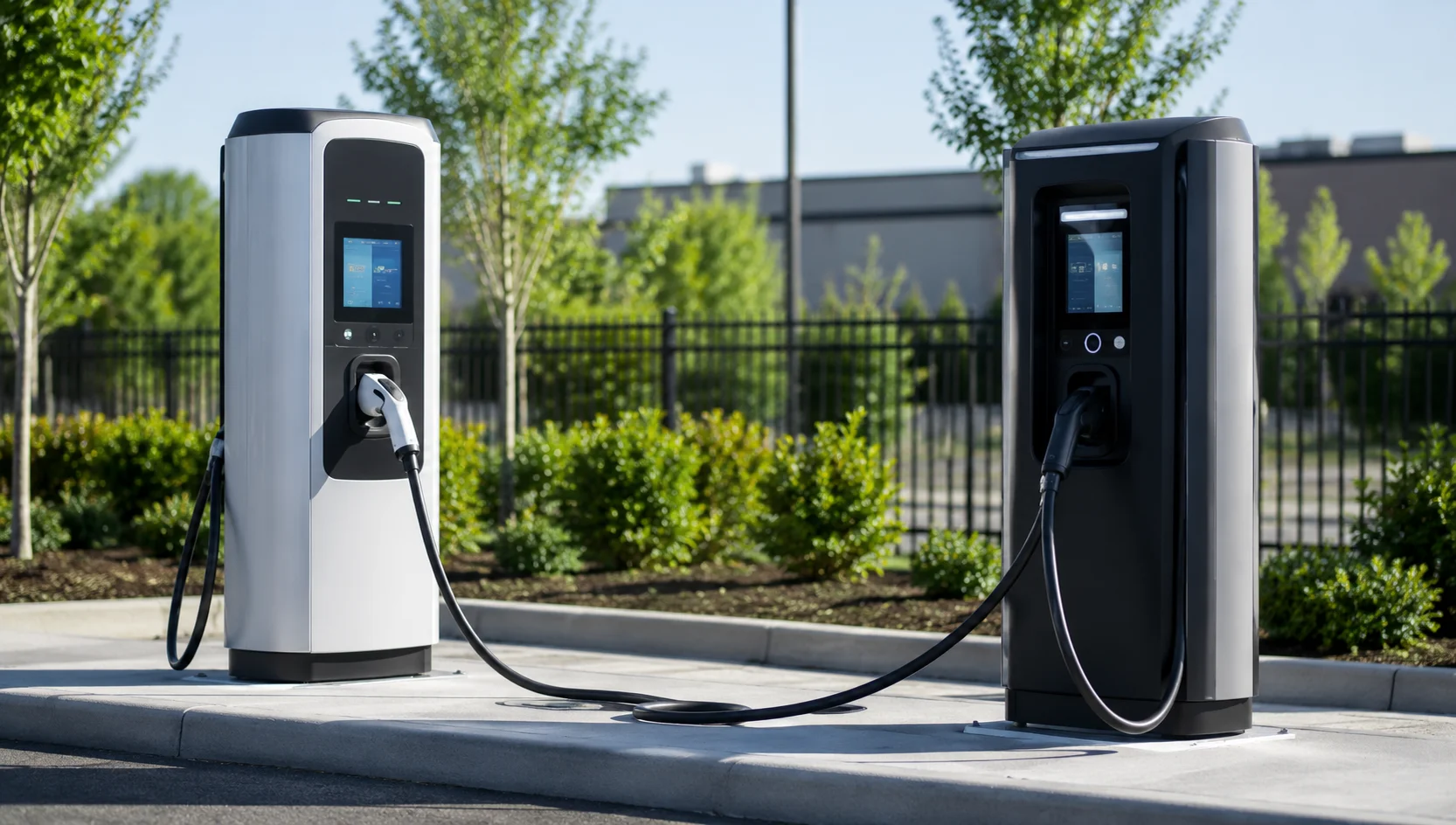

eDP Touch Display for Smart Building and Energy Systems
eDP touch displays may be considered for smart building controls, energy management devices, EV charger interfaces and BMS terminals.
eDP Display for Industrial Computing Platforms
eDP displays are suitable for embedded Linux, Windows or Android computing platforms where the host system supports Embedded DisplayPort output.
How to Select an eDP Display Module
An eDP display module should not be selected by size alone. Your team should confirm display size, resolution, eDP lane configuration, EDID / AUX, connector, cable routing, power sequence, backlight control and host platform capability before sample validation.
Display Size and Resolution
Confirm the target display size, resolution, aspect ratio and UI content. Higher resolution may require more graphics capability, memory bandwidth, power budget and backlight planning.
eDP Lane Count and Link Configuration
Confirm the required eDP lane count, eDP version and link configuration based on the panel datasheet and host platform. Do not assume every host or panel supports every lane configuration.
EDID, AUX Channel and Panel Detection
Check EDID behavior, AUX channel communication, panel detection and system boot recognition. These details can affect display bring-up and operating system behavior.
Driver IC / TCON and Power Sequence
Confirm driver IC or TCON, reset timing, power sequencing, panel enable, backlight enable and PWM dimming requirements before sample selection.
Cable, Connector and Signal Routing
Review cable length, connector type, pinout, shielding, grounding, routing path and mechanical stress before validation. High-speed display signals should be evaluated together with system layout and enclosure design.
Touch Interface and Cover Lens
If touch is required, confirm RTP or PCAP, I²C or USB touch interface, cover lens, printing area and bonding method. Touch interface and display interface should be checked separately.
Brightness, Backlight and Power Budget
Check brightness, backlight voltage/current, PWM dimming requirement and power budget. Brightness should be confirmed by model and operating environment.
Host Platform, OS and Driver Validation
Confirm industrial PC, SBC or embedded computer eDP output, BIOS / device tree / driver configuration, Linux / Windows / Android support and sample validation timeline before moving into production planning.
Engineering Note: All eight parameters above should be reviewed together as a system. Confirming each item before sample ordering reduces integration risk and shortens validation cycles.

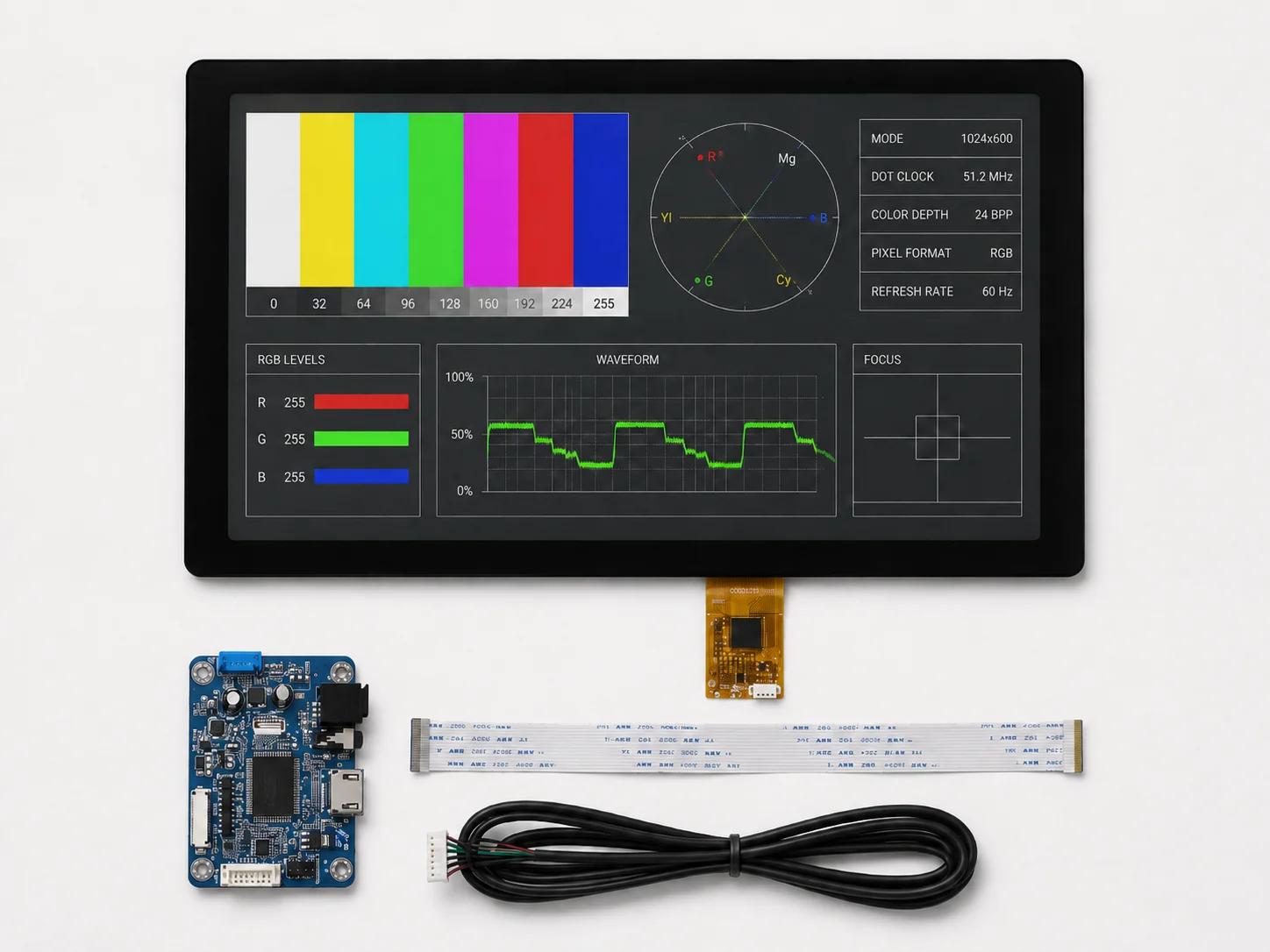

Need a Custom eDP Display?
Project-Based Support for Touch, Backlight, Cable Routing and Mechanical Fit
If your project requires more than a standard eDP display module, LMTEK can evaluate selected customization needs based on project feasibility and production requirements.
Typical requirements may include touch panel matching, cover lens design, bonding method, backlight tuning, eDP cable or connector alignment, pin definition, enclosure fit, front-panel design and display-platform alignment.
For detailed customization options, please visit our Custom TFT Display page.
Related TFT Display Interface Categories
TFT Displays
Explore LMTEK TFT display modules with size, resolution, brightness, touch and interface options for industrial and embedded applications.
View TFT Displays

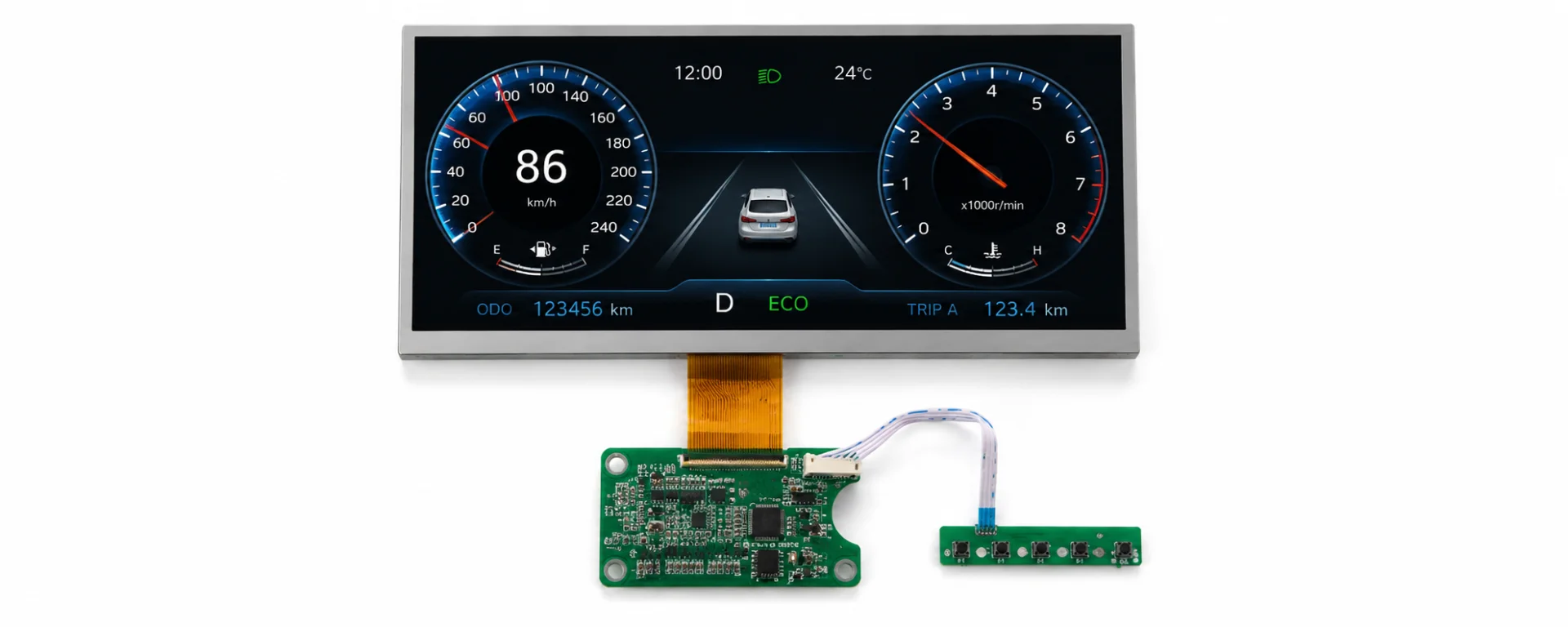

HDMI TFT Displays
Explore HDMI TFT display options for controller-board-based integration, SBC projects and fast sample validation.
View HDMI TFT Displays

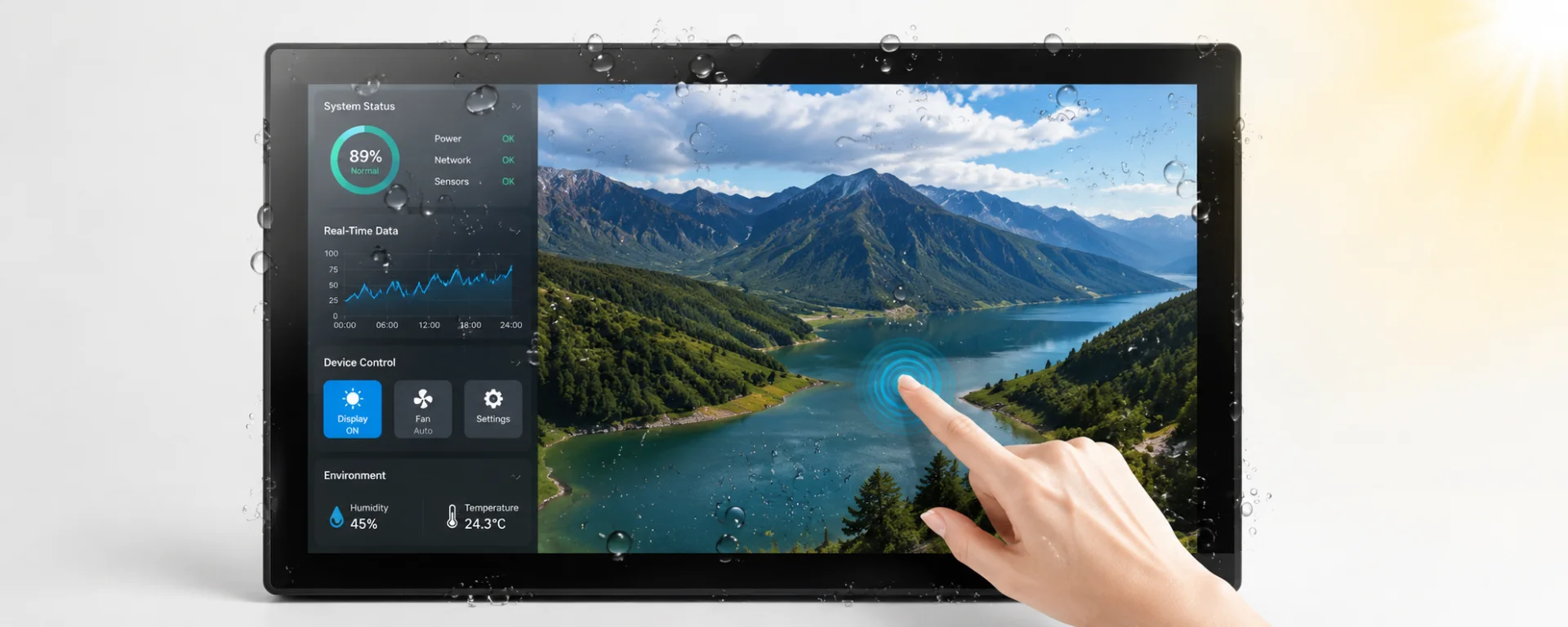

LVDS Displays
Review LVDS display options for industrial HMIs, larger TFT panels and applications that need stronger signal stability.
View LVDS Displays

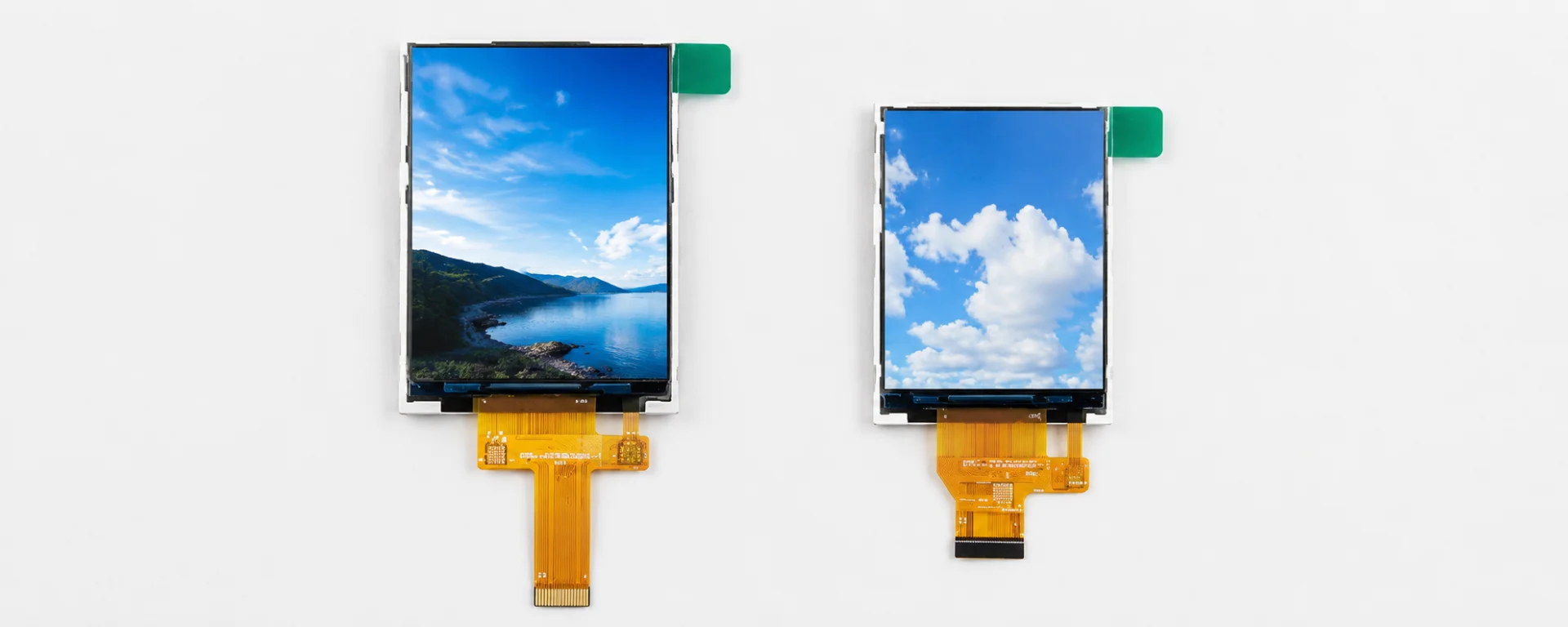

MIPI Displays
Explore MIPI DSI display options for compact embedded systems, SoC platforms and panel-level integration.
View MIPI Displays

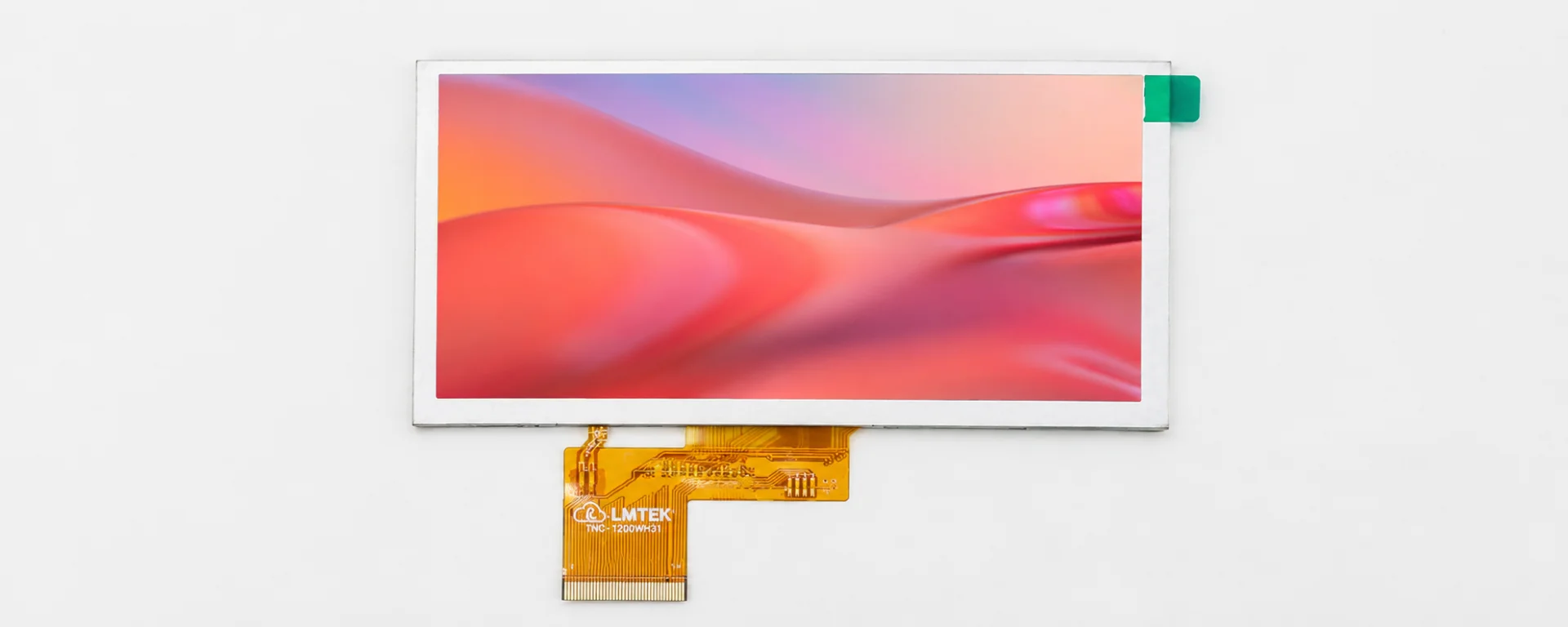

RGB TFT Displays
Review RGB TFT display modules for parallel pixel data, PCLK, HSYNC / VSYNC, DE and graphical embedded UI.
View RGB TFT Displays

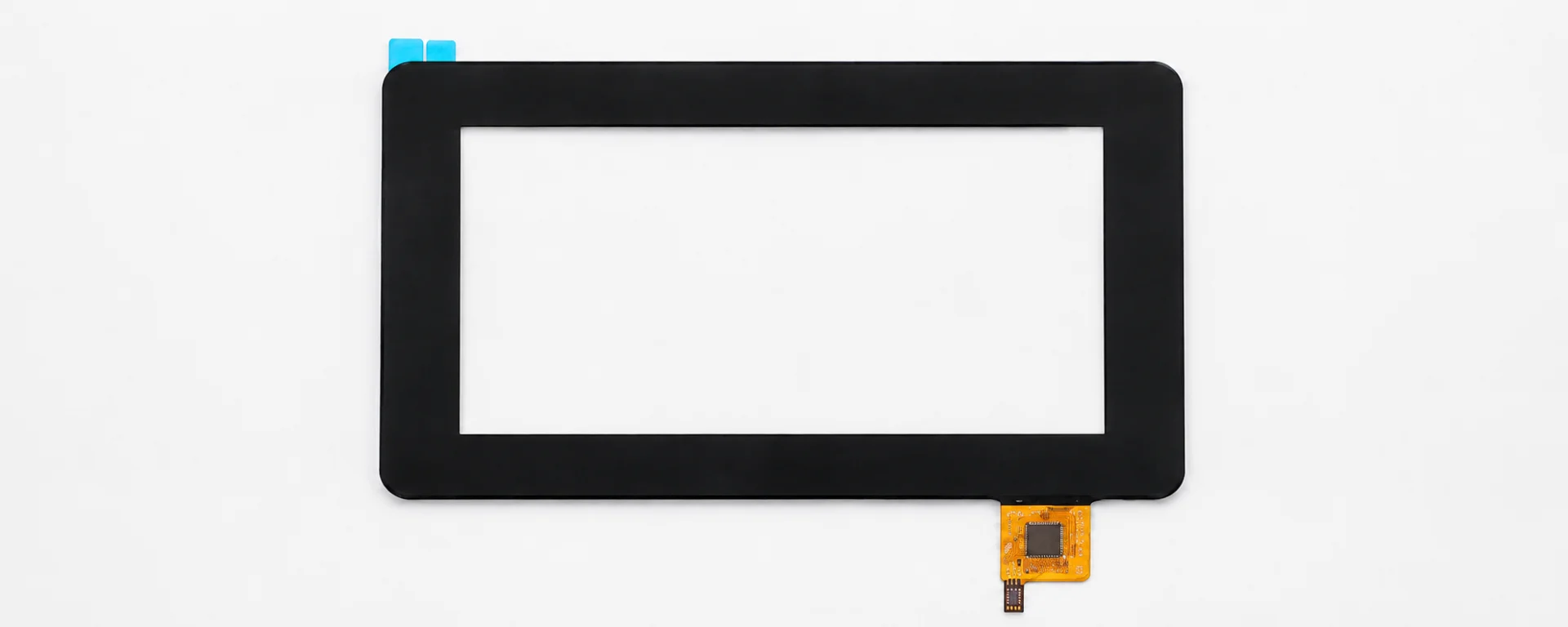

Touch Screens
Review resistive and capacitive touch screen options with cover lens, surface treatment, bonding and interface support.
View Touch Screens

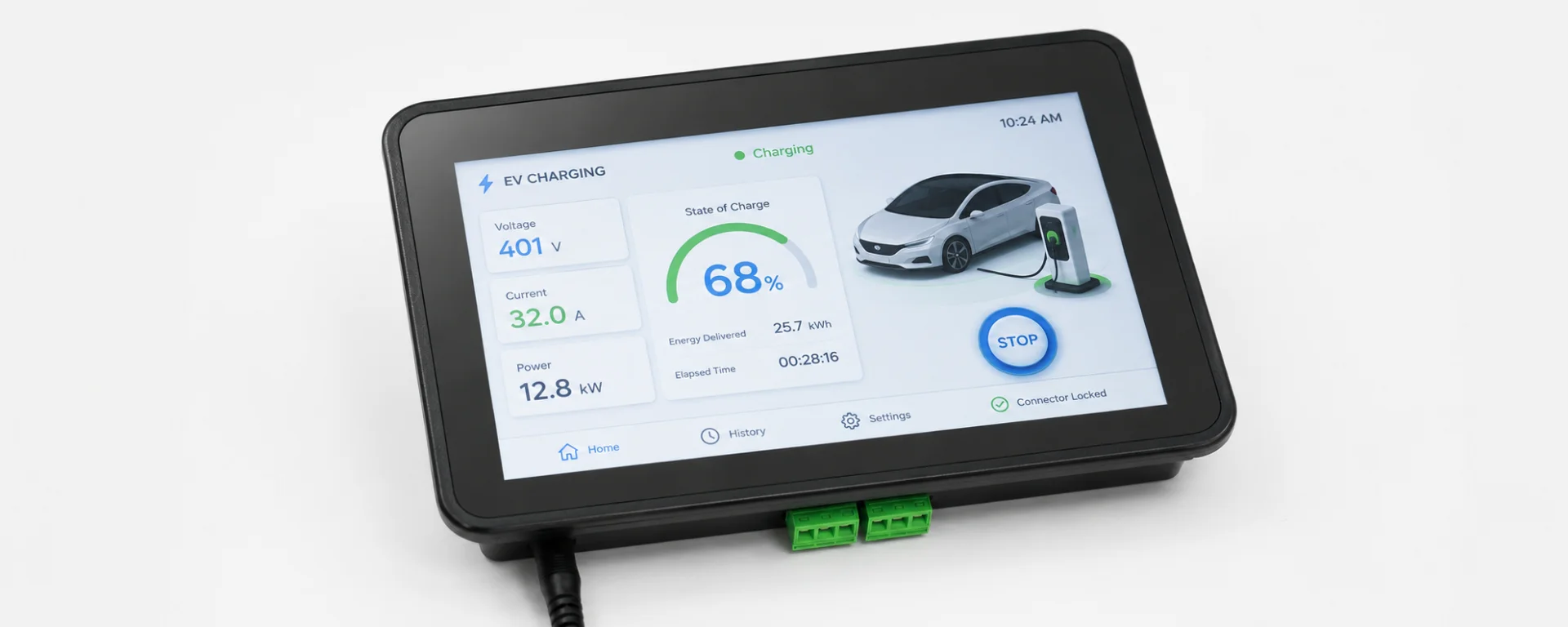

Embedded SBC / HMI-Ready Platform
Explore display, touch, embedded SBC, I/O and mechanical integration support for platform-based HMI development.
Explore HMI-Ready Platforms

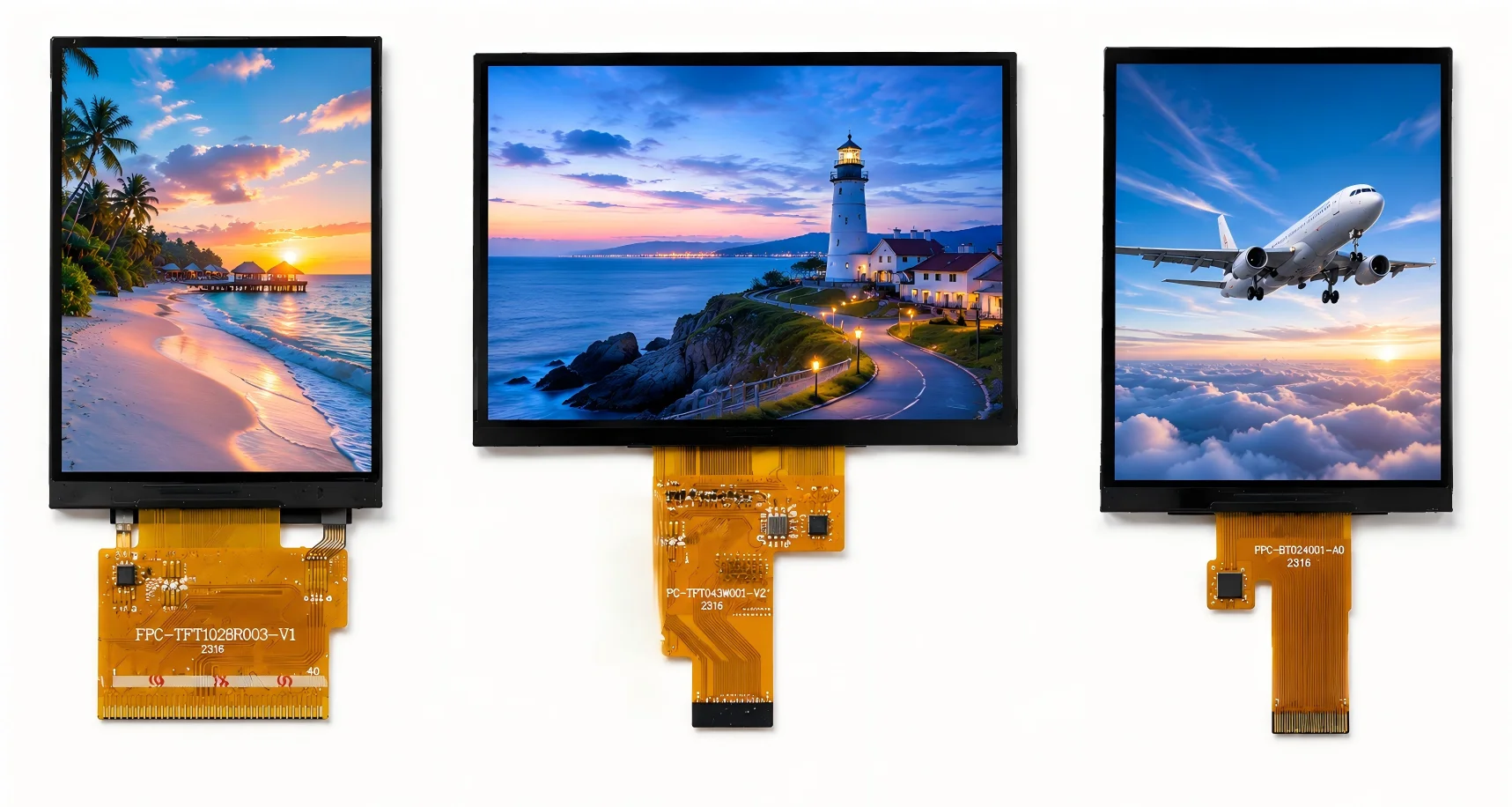

Custom TFT Displays
Need changes to touch, cable routing, backlight, connector definition or mechanical fit? Review LMTEK's project-based custom TFT display options.
View Custom TFT DisplayseDP Display FAQ
What is an eDP display?
What is the difference between eDP display and HDMI TFT display?
What is the difference between eDP display and LVDS display?
What is the difference between eDP display and MIPI display?
What should be checked when selecting an eDP display module?
Can eDP displays support capacitive touch?
Is an eDP display the same as a laptop replacement screen?
Can LMTEK support custom eDP display integration?
Share Your eDP Display Requirements
Send us your target specifications and application details. LMTEK will review your display size, resolution, eDP lane configuration, host platform, touch requirement and mechanical constraints to help recommend a suitable eDP display module or customization path.
Recommended Information to Submit
- Target display size
- Resolution requirement
- eDP lane count, if known
- eDP version / link rate requirement, if known
- Host platform: industrial PC / SBC / embedded computer
- Operating system: Linux / Windows / Android / RTOS
- EDID / AUX / panel detection requirement
- Driver IC / TCON requirement, if any
- Connector or cable requirement
- Power sequence requirement, if available
- Touch requirement: no touch / RTP / PCAP
- Touch interface: I2C / USB / other
- Brightness requirement
- Backlight control method
- Module dimension or enclosure limit
- Operating environment
- Application and expected annual volume
- Existing datasheet or reference panel
- Sample and production timeline
Bring your size, resolution, eDP lane requirement, host platform and enclosure constraints. LMTEK will help match suitable eDP display options to your project requirements.
