MIPI Display Modules for Embedded Systems and Compact HMIs
MIPI DSI TFT LCD modules for embedded systems, smart controls, compact HMIs and SoC-based display platforms.
MIPI displays help embedded product teams build compact display interfaces that require verified host-platform compatibility, MIPI DSI lane matching and reliable display bring-up. LMTEK provides MIPI display module options for embedded systems, smart control panels, compact HMIs, industrial devices and custom display projects. Your MIPI display project can be selected by size, resolution, MIPI DSI lane count, driver IC, initialization requirement, touch option, brightness, FPC direction and mechanical fit.
Project Review Focus
Interface
MIPI DSI 2/4-Lane
MIPI DSI TFT LCD Modules for Compact Embedded Platforms
LMTEK supplies MIPI display modules for product teams developing embedded systems, compact HMIs, smart controls and SoC-based display platforms. A MIPI DSI TFT LCD is typically selected when your product needs a compact display interface, fewer signal lines and a display connection aligned with modern embedded processors.
Typical selection points include display size, resolution, 2-lane or 4-lane MIPI DSI, driver IC, initialization sequence, host platform, touch support, brightness, FPC direction, connector definition and sample validation timeline.
If you are looking for a MIPI display manufacturer for an OEM/ODM project, LMTEK can help match display, touch and interface options to your controller platform, mechanical design and production plan.
This helps your team reduce interface mismatch, FPC redesign, driver bring-up uncertainty and sample validation delays.
Key Selection Parameters
Display Size & Resolution
Match physical dimensions and pixel density to your enclosure and UX requirements.
2-Lane / 4-Lane MIPI DSI
Confirm lane count compatibility with your SoC or embedded processor MIPI output.
Driver IC & Initialization
Verify driver IC model and initialization sequence against your platform BSP.
Touch Option & FPC Direction
Select RTP or CTP touch and confirm FPC connector direction for your PCB layout.
Brightness & Surface Treatment
Specify backlight brightness (nits) and AR/AG/AF coating for your ambient light conditions.
What Is a MIPI Display Module?
A MIPI display module is a TFT LCD module that uses MIPI DSI — Mobile Industry Processor Interface Display Serial Interface — to transmit display data between a host processor and the display module.
MIPI DSI Serial Interface
MIPI DSI uses high-speed serial lanes instead of a wide parallel data bus. Depending on the display model and host platform, a MIPI TFT LCD module may use 2-lane or 4-lane MIPI DSI.
Driver IC, initialization sequence, lane configuration, command mode or video mode support should be confirmed by the selected model datasheet.
MIPI DSI vs. Other Display Interfaces
Fewer Signal Lines
Compared with RGB, MIPI DSI uses fewer display signal lines and is often a better fit for compact embedded designs where PCB routing space is limited.
Panel-Level Interface
Compared with HDMI, MIPI DSI is usually a panel-level display interface rather than an external video input, making it suitable for integrated product designs.
SoC Platform Fit
Compared with LVDS, MIPI is often selected for compact SoC-based platforms and short FPC integration where board-to-panel distance is minimal.
Share Your MIPI Interface Requirements
Tell us your display size, resolution, lane count, host platform and project timeline. Our engineers will help match MIPI display, touch and interface options to your design.
When to Choose a MIPI Display
Choose a MIPI display when your host controller, SoC or SBC supports MIPI DSI output and your product needs compact display integration with fewer signal lines.
MIPI displays are often used when your UI requires higher pixel density, compact FPC routing, Android / Linux platform alignment or display-touch integration inside a slim device enclosure.
Interface Fit at a Glance
| Choose MIPI When | Consider Other Interfaces When |
|---|---|
|
Your host platform supports MIPI DSI output
|
Your controller only supports RGB, MCU or SPI
|
|
Your product needs fewer display signal lines
|
Your display is far from the main board
|
|
Your UI requires compact high-resolution integration
|
Your industrial panel is better suited for LVDS or eDP
|
|
Your project uses Android / Linux SoC platforms
|
Your application requires external HDMI input
|
|
Your display and controller are connected through short FPC routing
|
Your project needs a simple low-pin-count SPI display
|
MIPI is not automatically the best choice for every display project. For long internal cable routing, LVDS may be more suitable. For external controller-board input, HDMI may be more practical. For simple embedded UI, SPI, MCU or RGB may be enough depending on your controller platform and display requirements.
LMTEK MIPI Display Product Series
LMTEK offers MIPI display product series for embedded products that require compact TFT LCD modules, MIPI DSI interface options, touch matching, driver alignment discussion or project-based FPC and pin definition support.
High-performance TFT LCD modules with MIPI interface, sorted by size.
Project Support Note
LMTEK can support model selection, display-touch matching, sample validation and production planning based on your application, host platform and project timeline. For production programs, lifecycle expectations, PCN requirements and alternative model review can also be discussed during project evaluation.

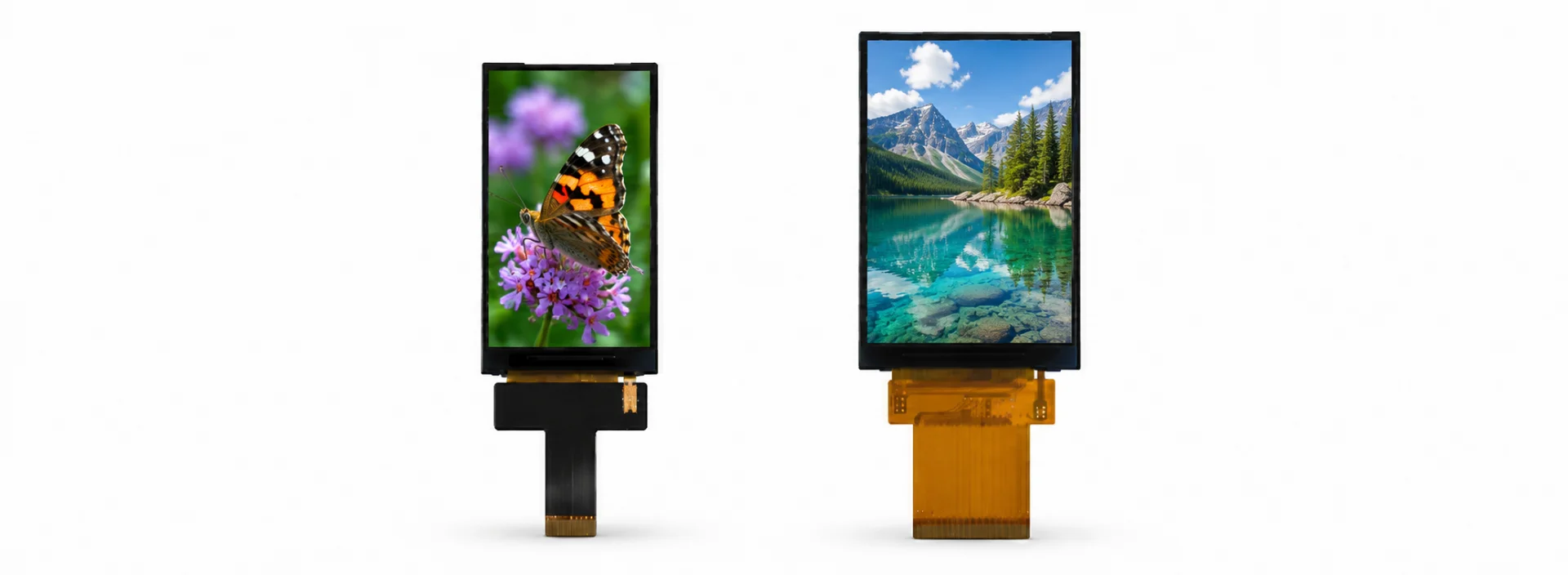

2-Lane MIPI DSI Display Modules
2-lane MIPI DSI display modules may be suitable for selected compact display projects where the panel resolution, driver IC and host platform are properly matched.
Request 2-Lane MIPI Display Options

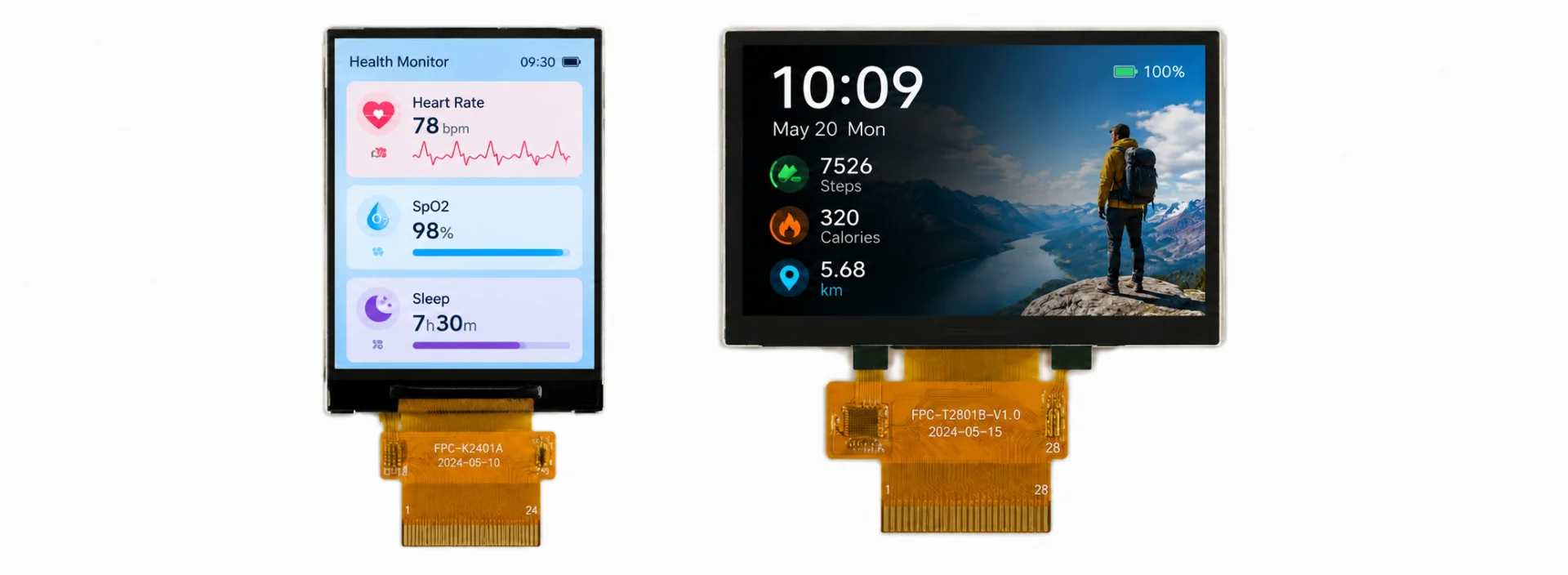

4-Lane MIPI DSI Display Options
4-lane MIPI DSI display options may be considered for selected higher-resolution or richer graphical UI projects. Your team should confirm lane configuration, display driver IC, initialization sequence and host controller support before sample selection.
Check 4-Lane MIPI DSI Availability

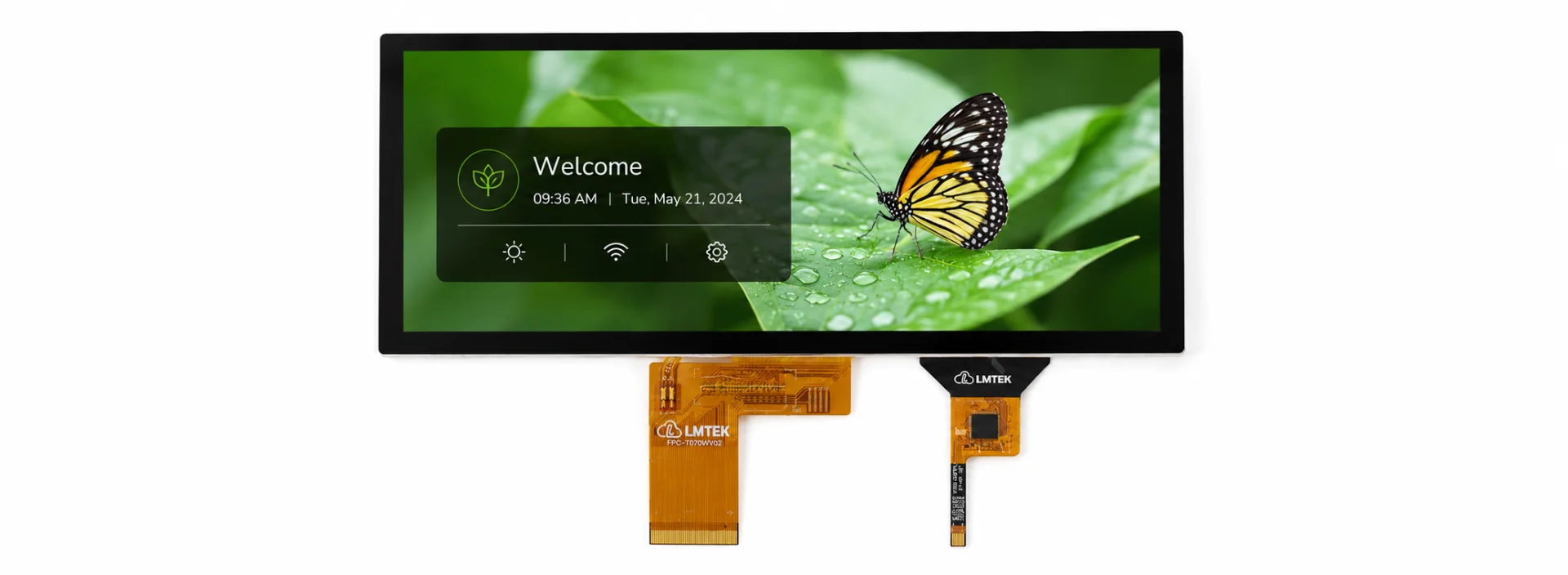

MIPI Display with Touch
A MIPI display with touch is suitable when your product requires direct user interaction in a compact front-panel design. Touch selection should be checked together with cover lens design, bonding method, touch interface, FPC routing and operating environment.
Review MIPI Touch Display OptionsKey Advantages of MIPI Displays
Compact High-Speed Serial Interface
MIPI DSI uses high-speed serial lanes to reduce display signal line count compared with wide parallel interfaces. This makes MIPI display modules a practical option for compact embedded products where connector size, FPC width and internal space are limited.
Suitable for SoC-Based Embedded Platforms
MIPI TFT displays are often considered for SoC-based platforms, Android / Linux systems, compact HMIs and smart control panels. Final suitability depends on the host controller, display driver, lane count and software bring-up path.
Good Fit for Compact High-Resolution Displays
MIPI DSI can be a good fit for compact high-resolution TFT LCD modules when the display model and host platform support the required lane configuration and initialization sequence.
Touch, FPC and Driver Alignment Support
LMTEK helps align MIPI display selection with touch matching, FPC direction, pin definition, driver IC discussion, backlight brightness and mechanical structure. This helps your team validate the display as part of the complete embedded interface.
Ready to evaluate a MIPI display for your project?
Our engineering team is ready to support model selection, sample validation and production planning.
Typical Applications of MIPI Displays
From compact HMI panels to smart building controls, MIPI displays power a wide range of embedded and industrial applications.

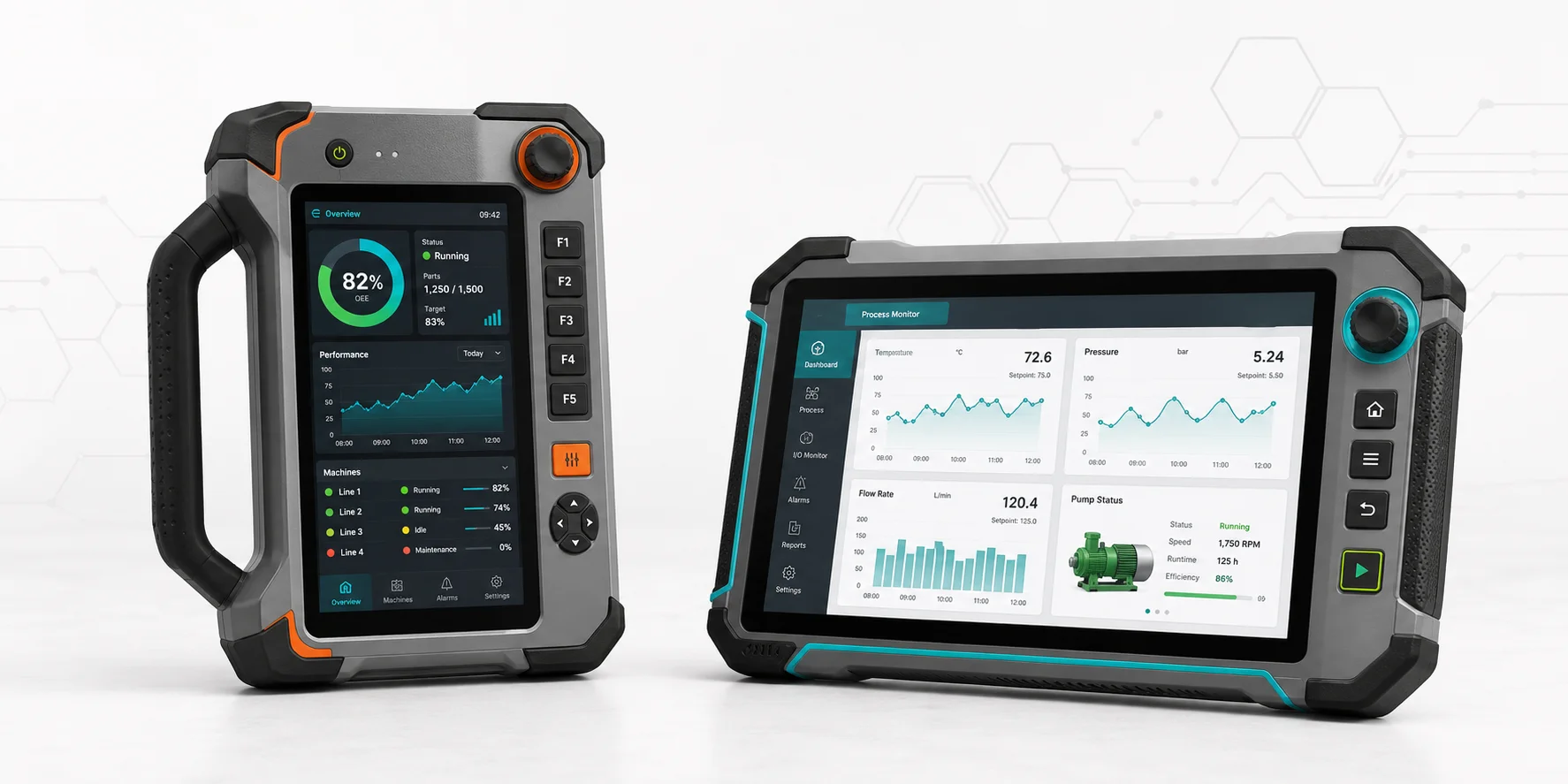

MIPI Display for Compact HMI Panels
MIPI displays can be used in compact HMI panels, wall-mounted control devices, local operator terminals and smart equipment interfaces where a slim front-panel design is required.

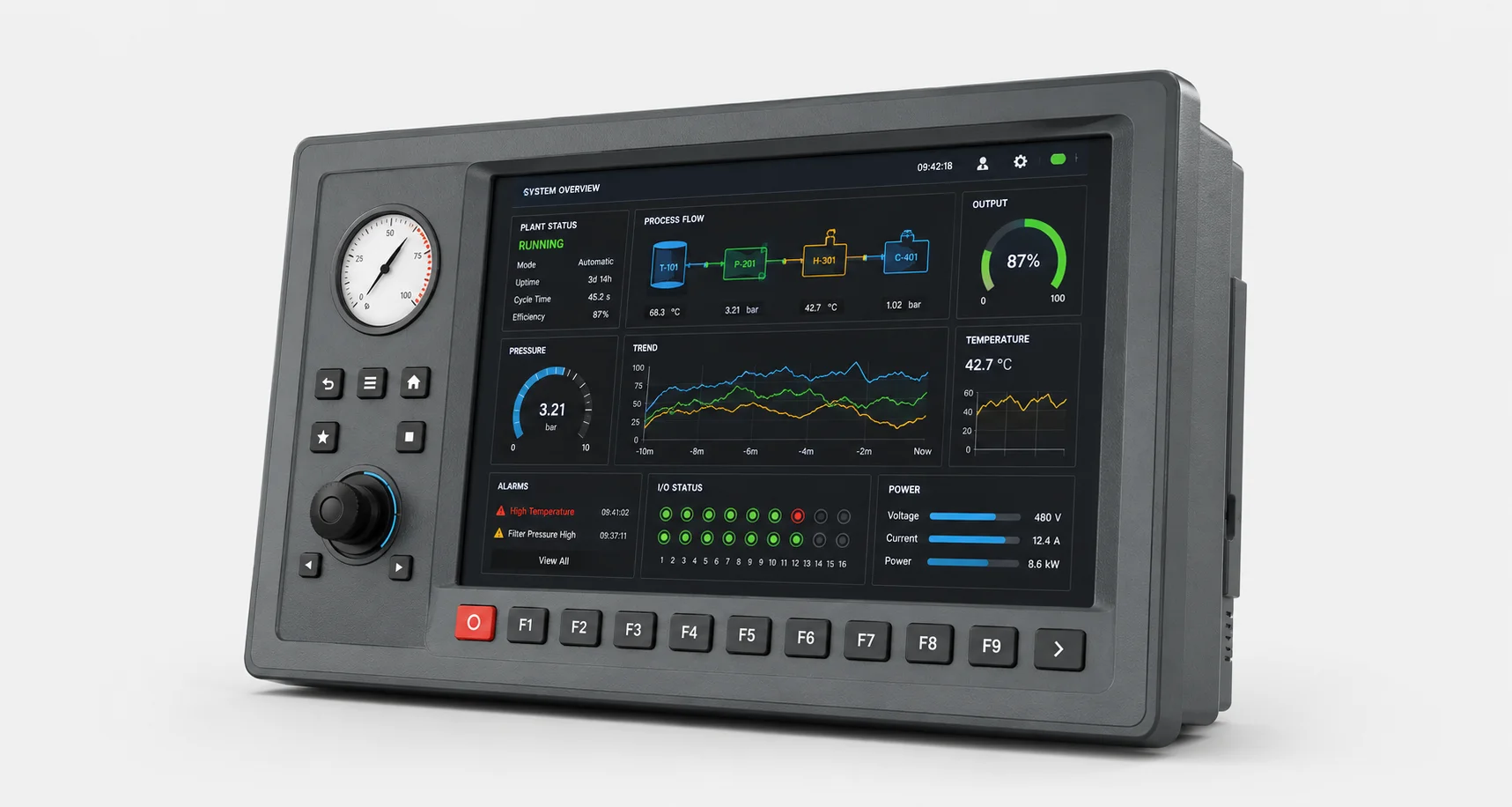

MIPI TFT Display for Embedded Systems
MIPI TFT display modules are suitable for embedded control systems, SoC-based devices, SBC platforms and Linux / Android display systems where the host supports MIPI DSI output.

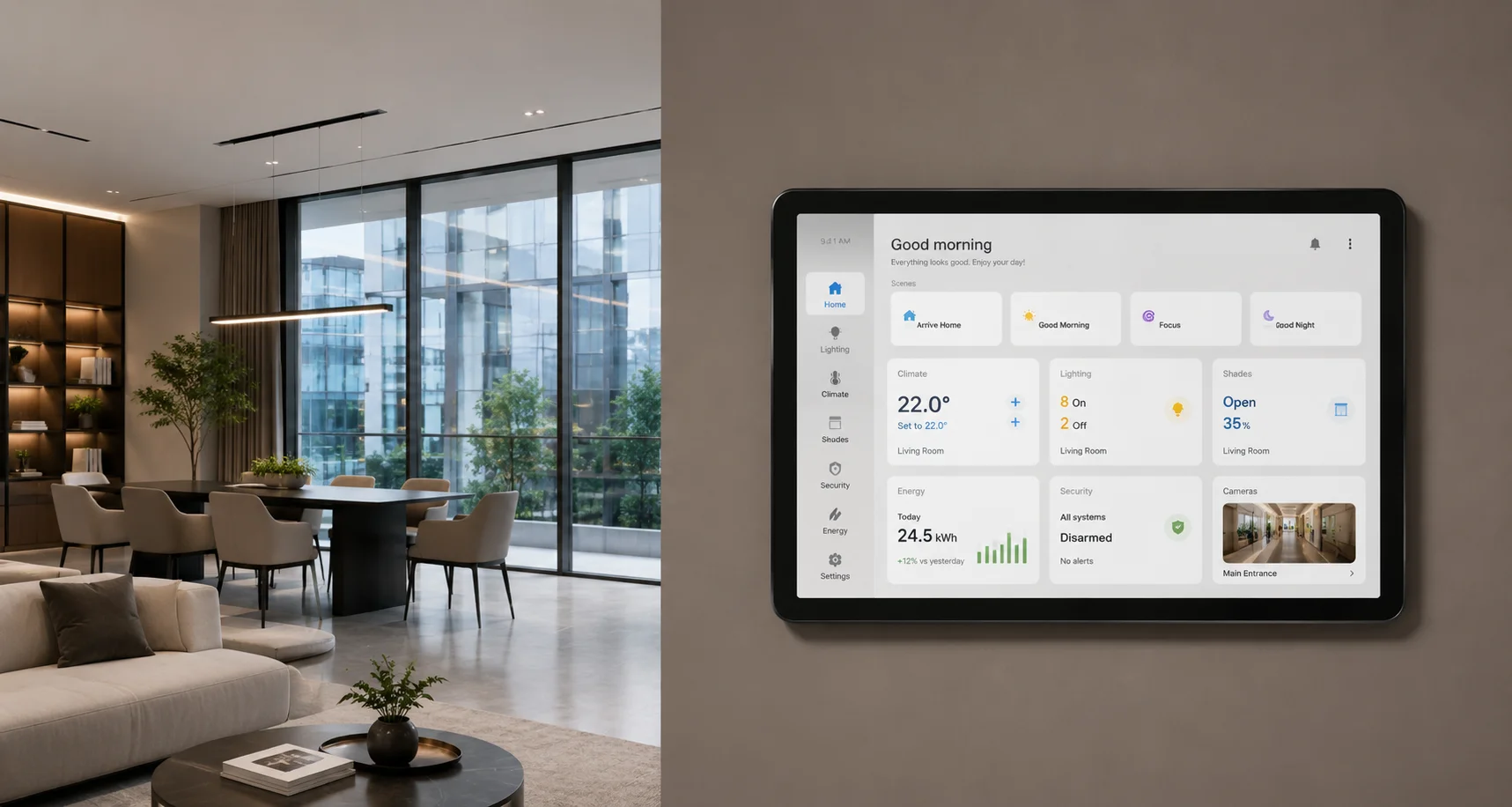

MIPI DSI Display for Smart Home and Building Controls
MIPI DSI displays can support smart thermostats, lighting controls, HVAC panels, room controllers and BMS terminals that require compact UI, touch interaction and clean mechanical integration.
MIPI Display Module for Healthcare-Related Interfaces
Selected healthcare-related devices may use MIPI display modules for compact readings, monitoring feedback or simplified control interfaces. Any medical or compliance requirement should be confirmed by project and application.

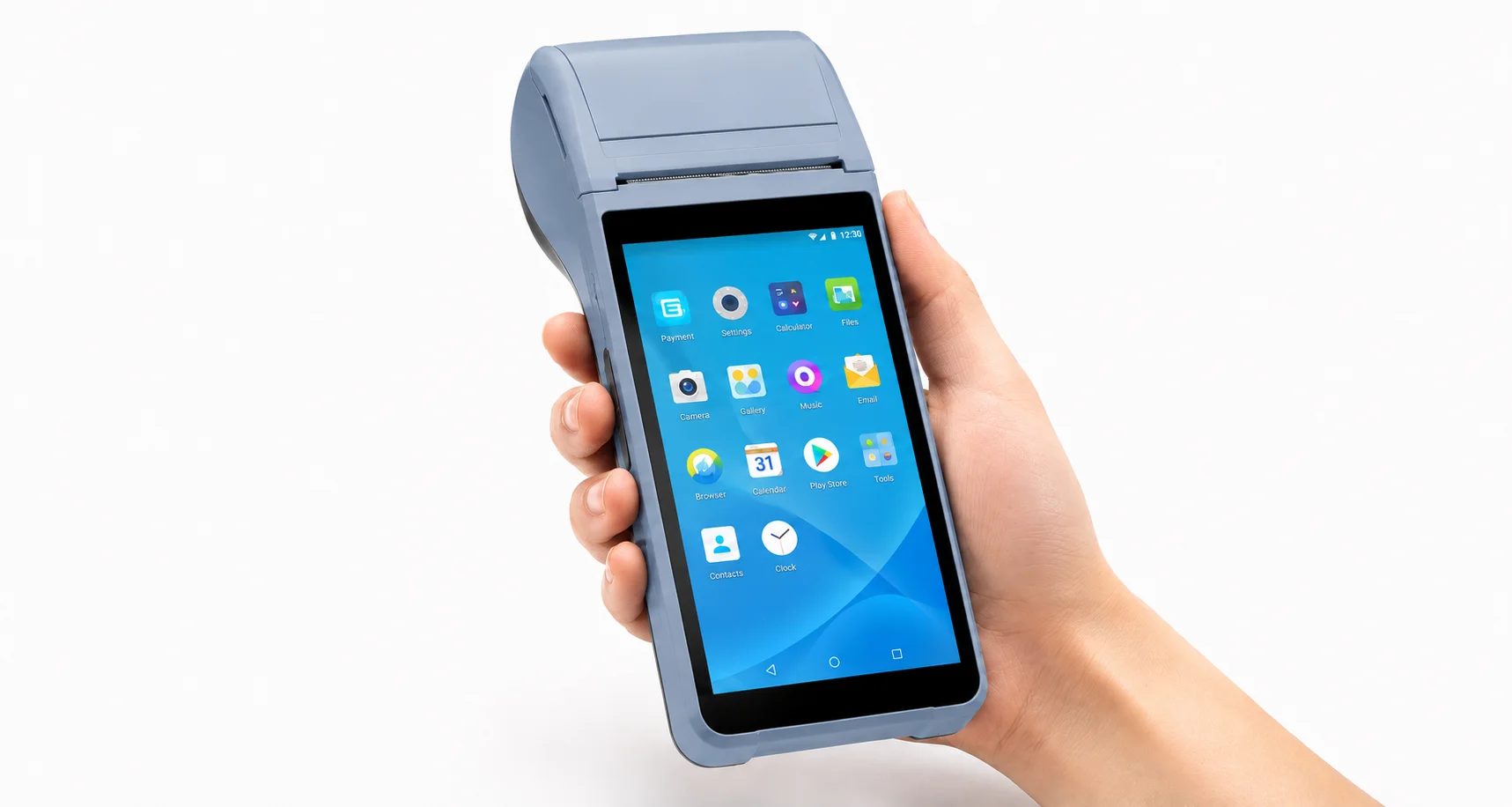

MIPI Touch Display for Industrial and Commercial Devices
MIPI touch displays may be considered for industrial devices, commercial electronics, appliances and compact control panels that require display, touch and enclosure integration in one front-panel design.
How to Select a MIPI Display Module
A MIPI display module should not be selected by size alone. When selecting a MIPI LCD module, your team should confirm the TFT LCD MIPI interface, lane count, driver IC, initialization requirement, FPC routing and host platform capability before sample validation.
Display Size and Resolution
Confirm the target display size, resolution, aspect ratio and UI content. MIPI displays are often selected for compact graphical interfaces, but final suitability depends on lane count, host output capability and software bring-up requirements.
MIPI DSI Lane Count
Confirm whether your project needs 2-lane or 4-lane MIPI DSI. Lane configuration must match the display model, host processor and PCB / FPC design.
Driver IC and Initialization Sequence
Check driver IC, initialization sequence, command set, reference code and platform documentation before sample selection. These items are important for display bring-up on Linux / Android or other embedded platforms.
Command Mode / Video Mode
If command mode or video mode configuration is involved, confirm support by panel datasheet and host capability. Do not assume every MIPI display supports every mode.
FPC, Connector and Pin Definition
Review FPC length, connector pitch, pin definition, routing path and mechanical constraints before sample validation. High-speed MIPI routing should also be checked together with impedance, grounding, EMI and connector design during system integration.
Touch Interface and Cover Lens
If touch is required, confirm whether the project needs RTP or PCAP, and check I²C or USB touch interface options together with cover lens, printing area and bonding method.
Brightness, Backlight and Power Budget
Check brightness, backlight voltage/current, PWM dimming requirement and power budget. Brightness should be confirmed by model and operating environment.
Platform Driver and Sample Validation
For MIPI display projects, confirm host platform, BSP status, driver adaptation needs, initialization support and sample validation timeline before moving into production planning.
Engineering Note: Confirm TFT LCD MIPI interface, lane count, driver IC, initialization requirement, FPC routing and host platform capability before sample validation. Size alone is not a sufficient selection criterion.

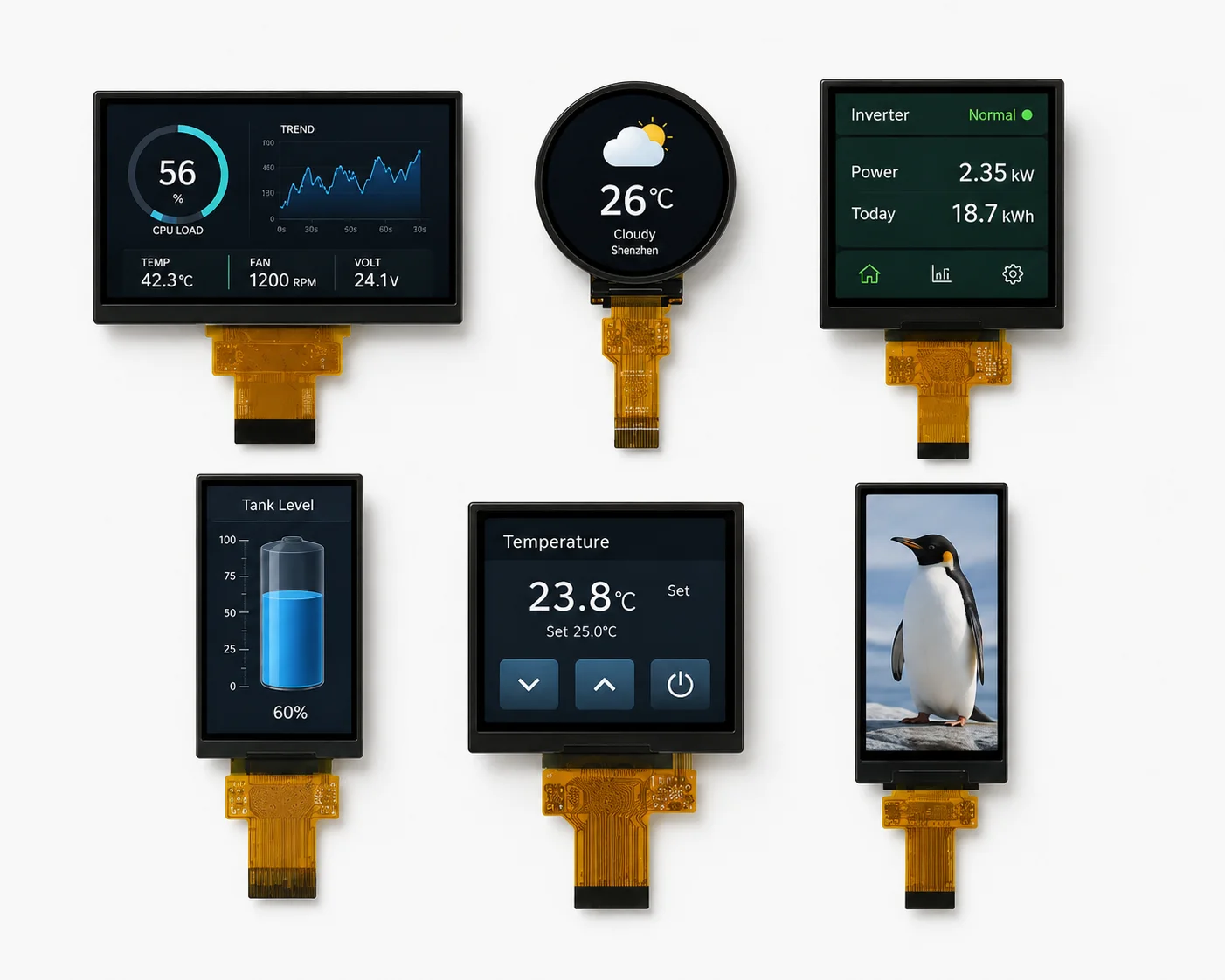

Need a Custom MIPI Display?
Project-Based Support for FPC, Touch, Backlight and Driver Alignment
If your project requires more than a standard MIPI display module, LMTEK can evaluate selected customization needs based on project feasibility and production requirements.
Typical requirements may include:
For detailed customization options, please visit our Custom TFT Display page.
Explore Custom TFT Display OptionsFeasibility-First Approach
Every customization is evaluated against project requirements and production feasibility.
Engineering Team Support
Experienced engineers assist from initial selection through driver bring-up and integration.
One-Stop Integration
Display, touch, cover lens and mechanical fit -- all aligned in a single validated solution.
Related TFT Display Interface Categories

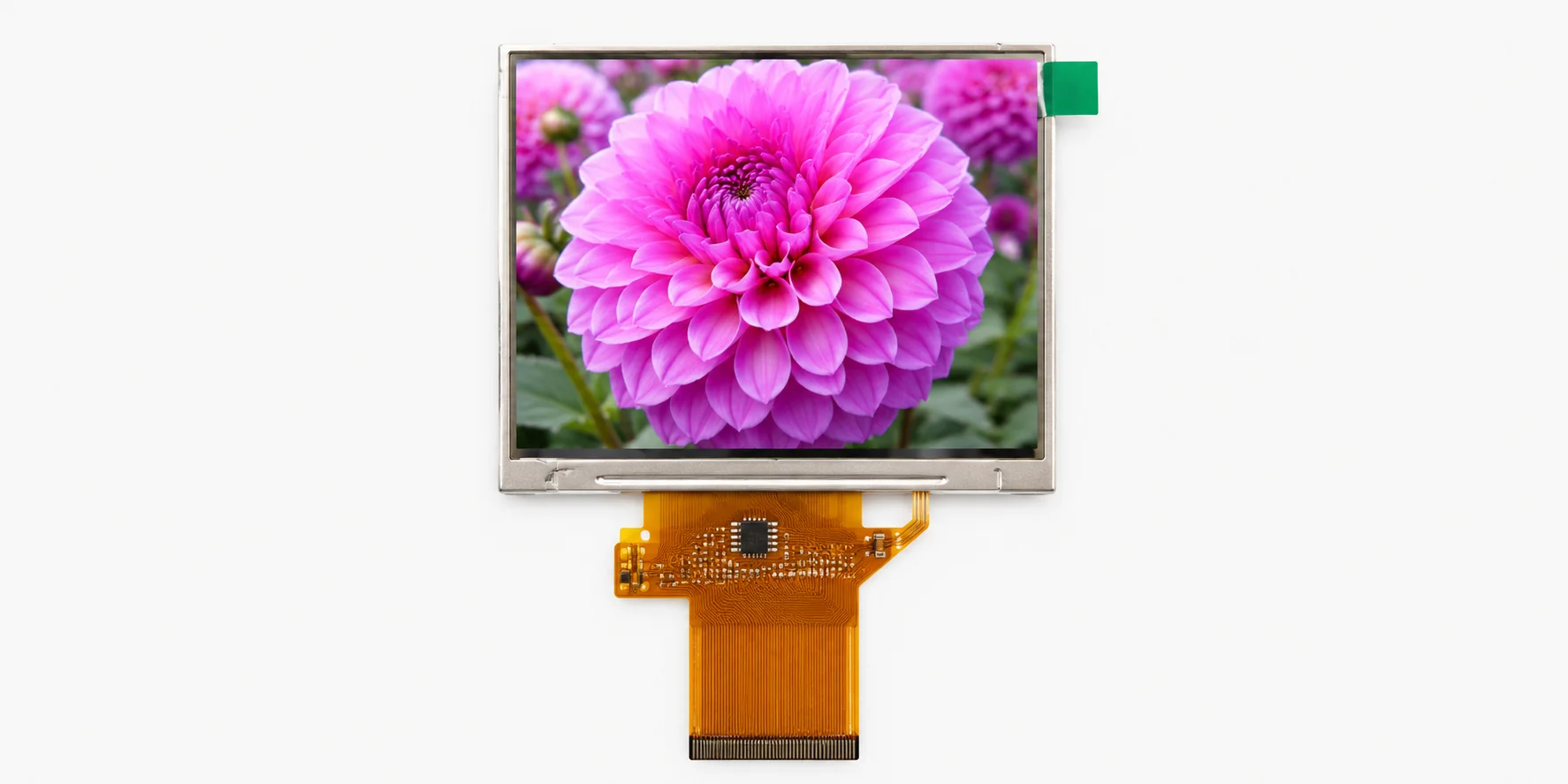

RGB TFT Displays
Review RGB TFT display modules for parallel pixel data, PCLK, HSYNC / VSYNC, DE and graphical embedded UI.
View RGB TFT Displays

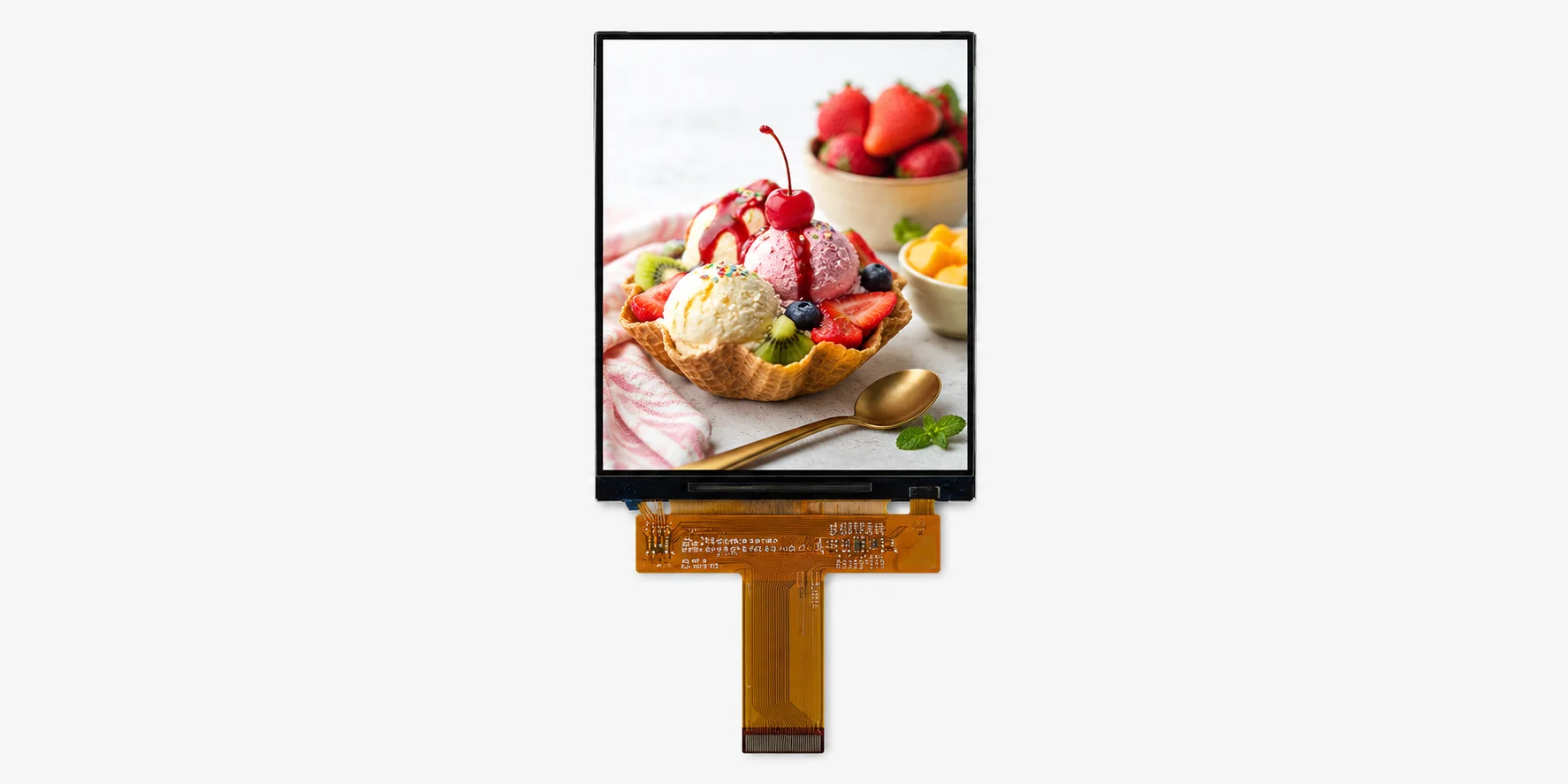

MCU TFT Displays
Review MCU TFT display modules for 8080/6800 bus, controller-based UI and compact embedded interfaces.
View MCU TFT Displays

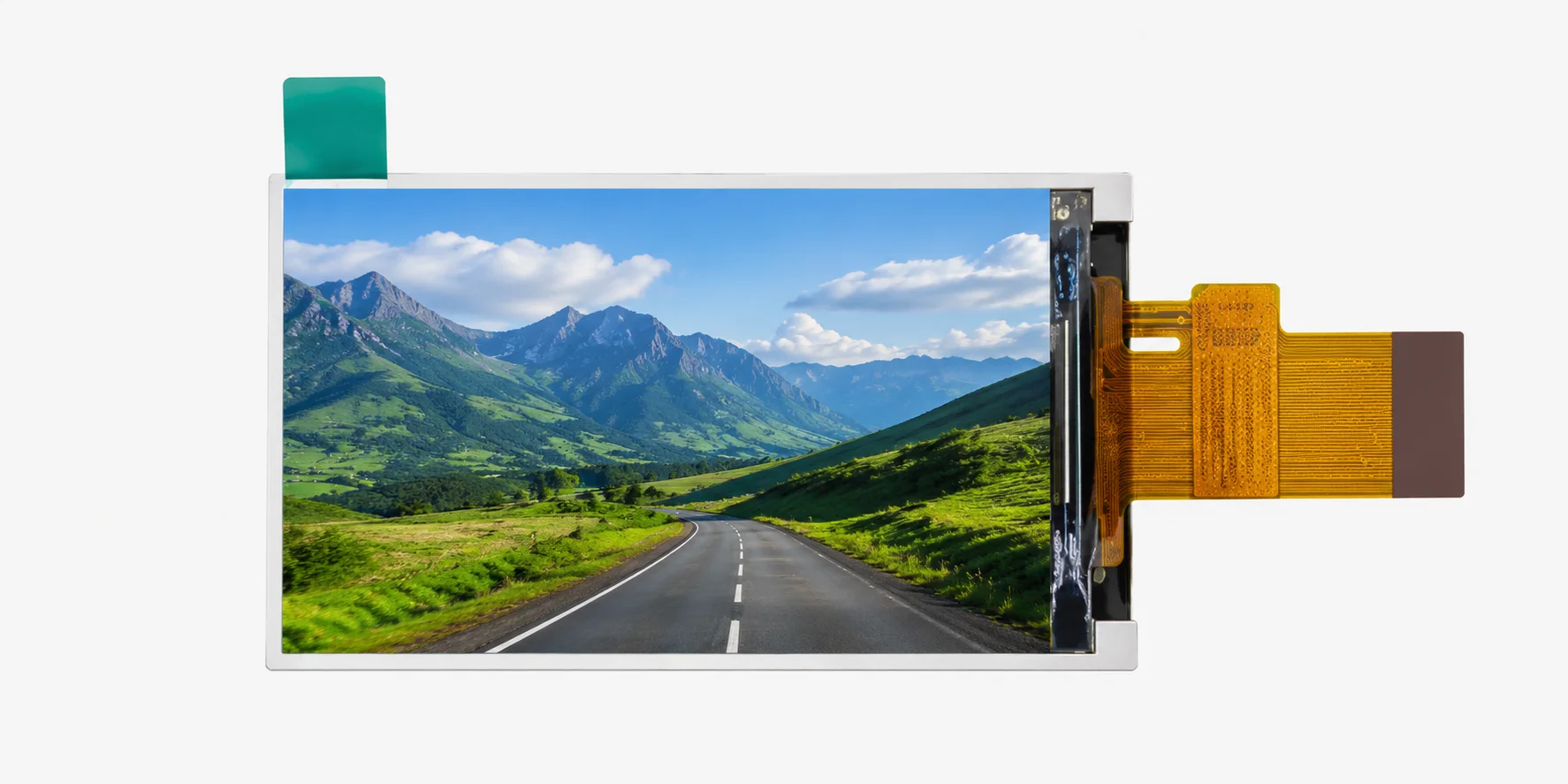

SPI TFT Displays
Review SPI TFT display options for compact devices, low-pin-count designs and simple graphical interfaces.
View SPI TFT Displays

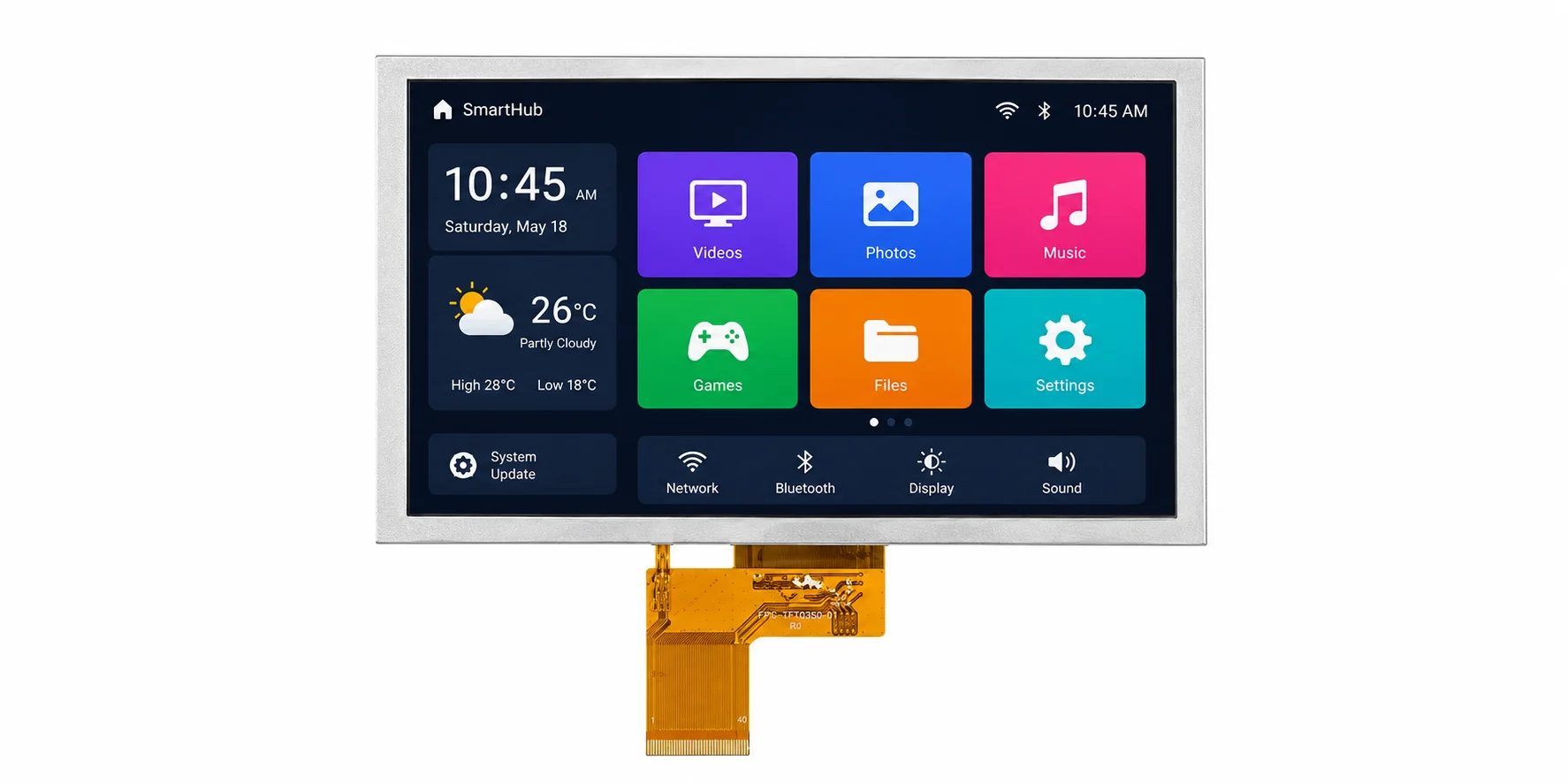

LVDS Displays
Review LVDS display options for industrial HMIs, larger TFT panels and applications that need stronger signal stability.
View LVDS Displays

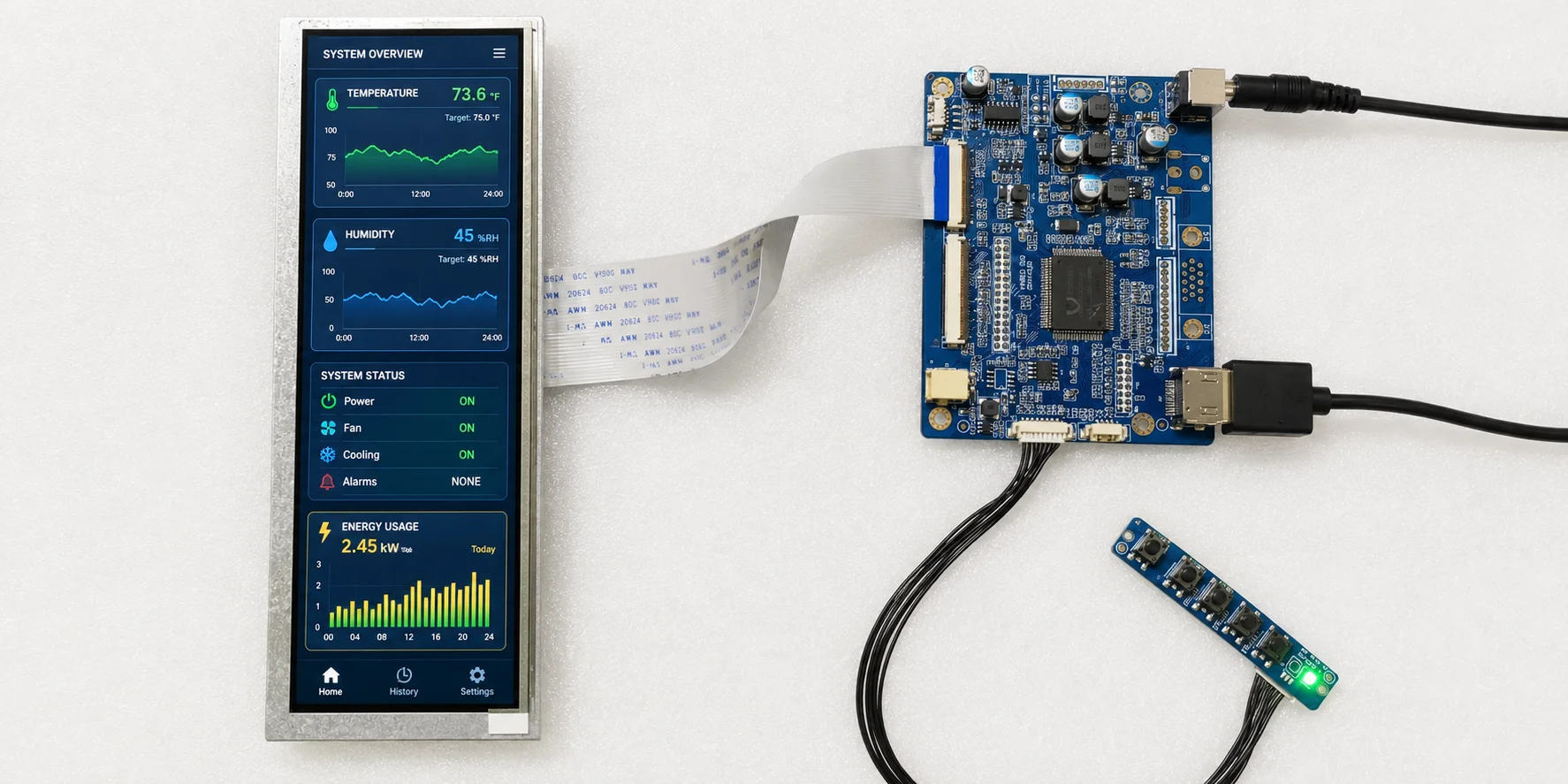

HDMI TFT Displays
Explore HDMI TFT display options for controller-board-based integration, SBC projects and fast sample validation.
View HDMI TFT Displays

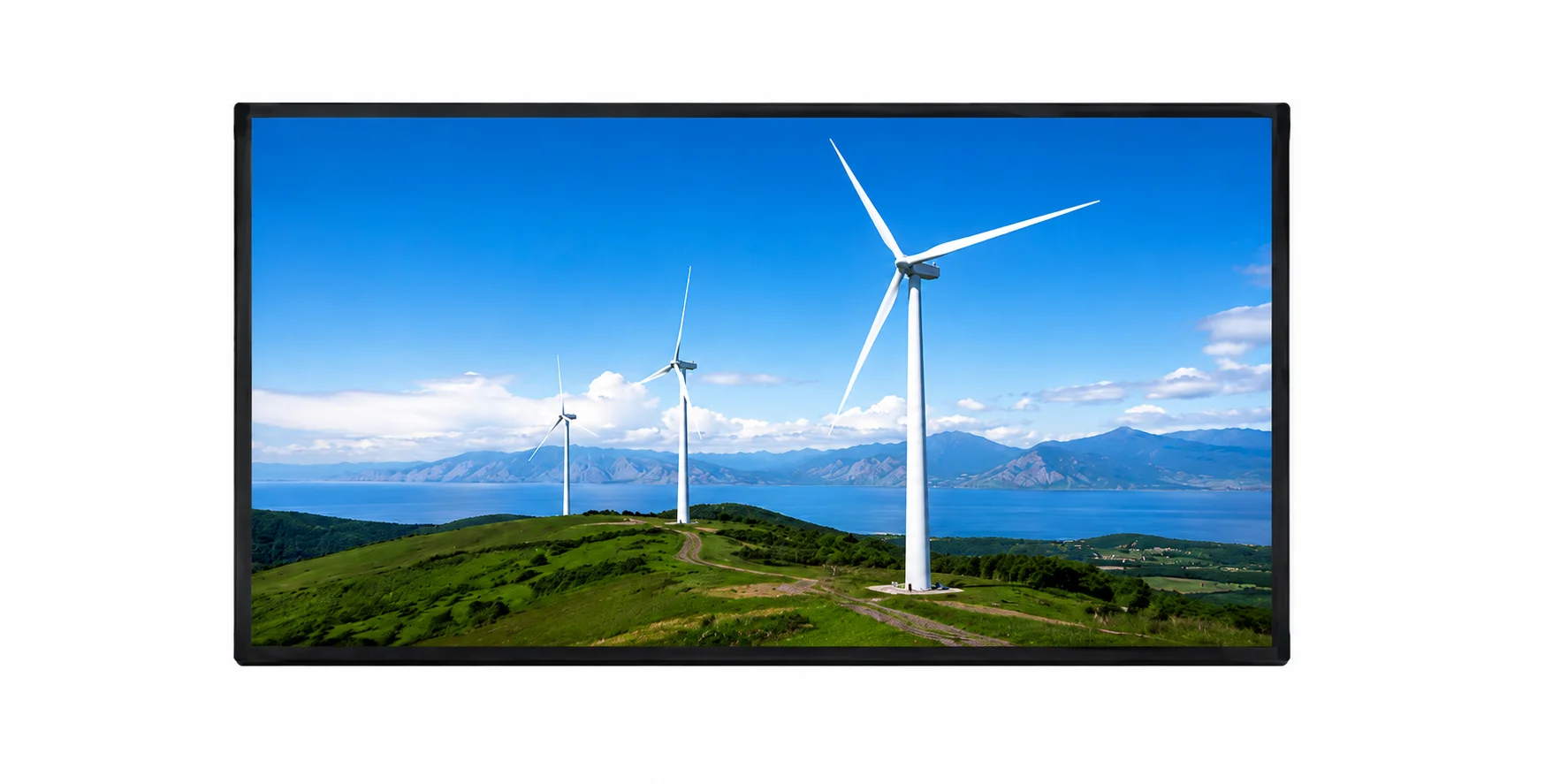

eDP Displays
Review eDP display options for high-resolution embedded computing platforms and industrial display systems.
View eDP Displays

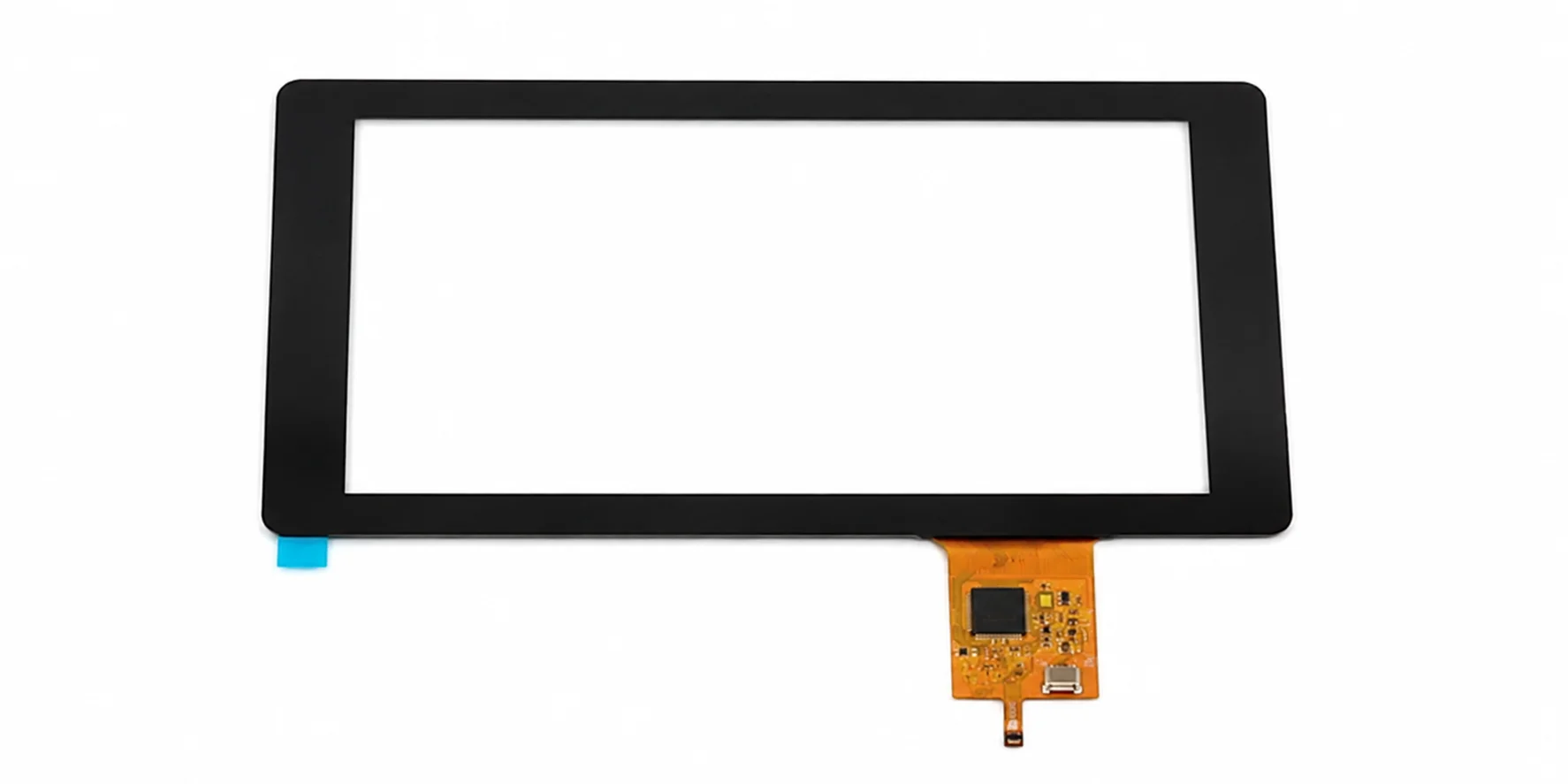

Touch Screens
Review resistive and capacitive touch screen options with cover lens, surface treatment, bonding and interface support.
View Touch Screens

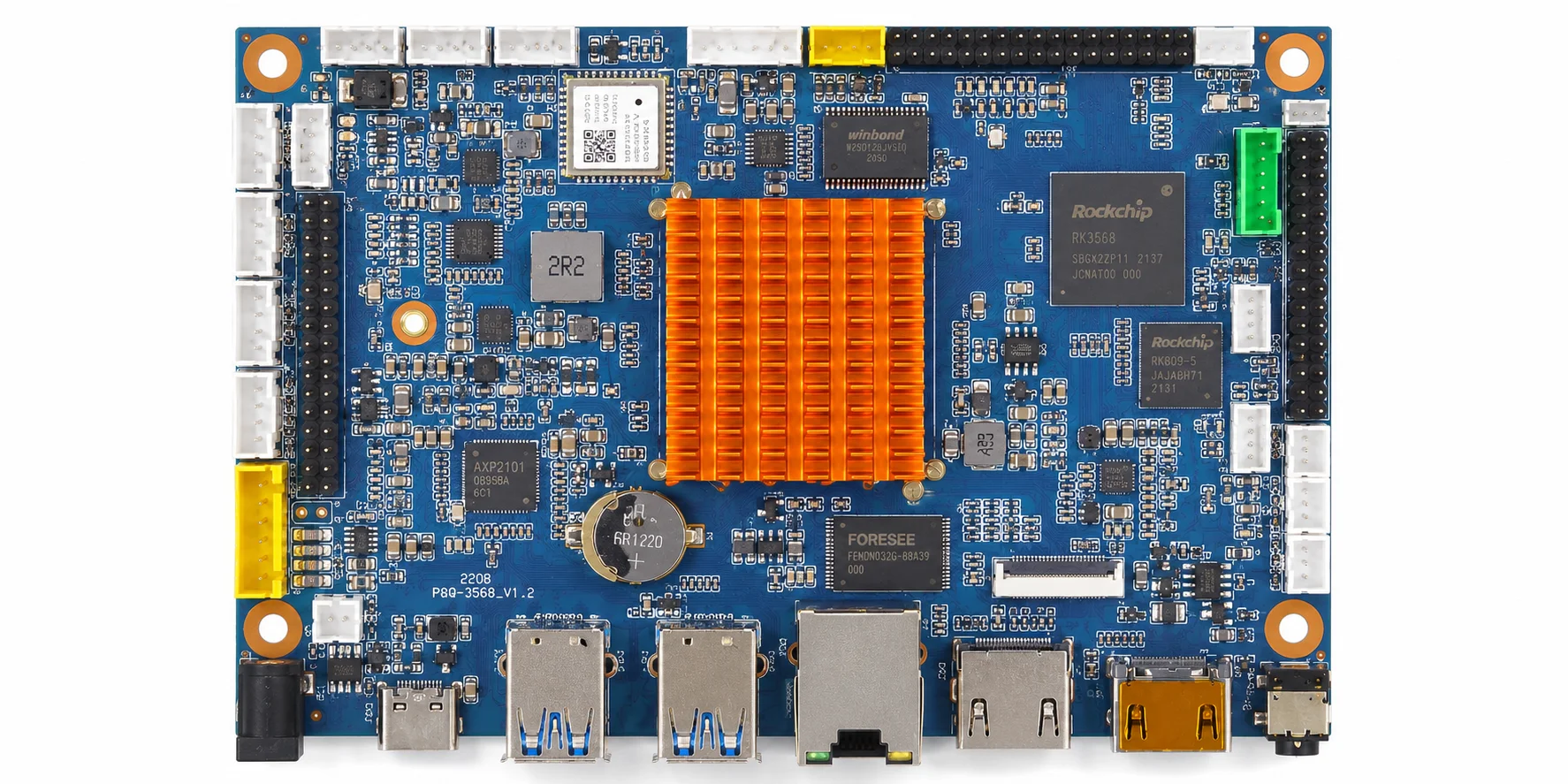

Embedded SBC / HMI-Ready Platform
Explore display, touch, embedded SBC, I/O and mechanical integration support for platform-based HMI development.
Explore HMI-Ready PlatformsMIPI Display FAQ
What is a MIPI display?
A MIPI display is a TFT LCD module that uses MIPI DSI to transmit display data from a host processor or SoC to the display module. It is commonly used in compact embedded systems, smart control panels and SoC-based HMI devices.
What is the difference between MIPI display and RGB TFT display?
RGB uses parallel pixel data and timing signals. MIPI DSI uses high-speed serial lanes, reducing signal line count and FPC width. RGB can be practical for simpler board-level interfaces, while MIPI is often used for compact SoC-based display platforms.
What is the difference between MIPI display and LVDS display?
MIPI DSI is often selected for compact high-resolution display integration with short FPC routing. LVDS is commonly used for industrial panels, longer internal routing and noise-sensitive environments. The right choice depends on host platform, panel model and system design.
What are 2-lane and 4-lane MIPI DSI displays?
2-lane and 4-lane MIPI DSI displays refer to the number of high-speed data lanes used for display transmission. The required lane count depends on resolution, refresh requirement, driver IC and host controller support.
Does a MIPI display need driver initialization?
Yes, MIPI display projects usually require driver initialization, display command settings or platform-level configuration. The required support depends on the driver IC, host platform, operating system and available reference code.
Can MIPI displays support capacitive touch?
Yes, selected MIPI display modules can be matched with capacitive touch depending on model availability and project requirements. Touch interface, cover lens, bonding and operating environment should be evaluated together.
Can LMTEK customize the FPC or support display-platform alignment for MIPI displays?
LMTEK can review project-based requirements such as FPC direction, pin definition, MIPI lane alignment, touch matching, cover lens, backlight tuning and display-platform alignment. The available scope depends on the selected display platform and production requirements.
Share Your MIPI Display Requirements
Send us your target specifications and application details. LMTEK will review your display size, resolution, MIPI lane configuration, driver IC, initialization requirement, touch option and mechanical constraints to help recommend a suitable MIPI display module or customization path.
Recommended Information to Submit
- Target display size
- Resolution requirement
- MIPI DSI lane count: 2-lane / 4-lane / other
- Host controller, SoC or SBC platform
- Linux / Android / RTOS platform, if applicable
- Driver IC requirement, if any
- Initialization code or BSP requirement, if available
- FPC direction, connector pitch or pin definition
- Touch requirement
- Brightness requirement
- Backlight control method
- Operating environment
- Application and expected annual volume
- Existing datasheet or reference panel
- Sample and production timeline
Bring your size, MIPI lane count, host platform, driver requirements and timeline. LMTEK will help match suitable MIPI display options to your project requirements.
