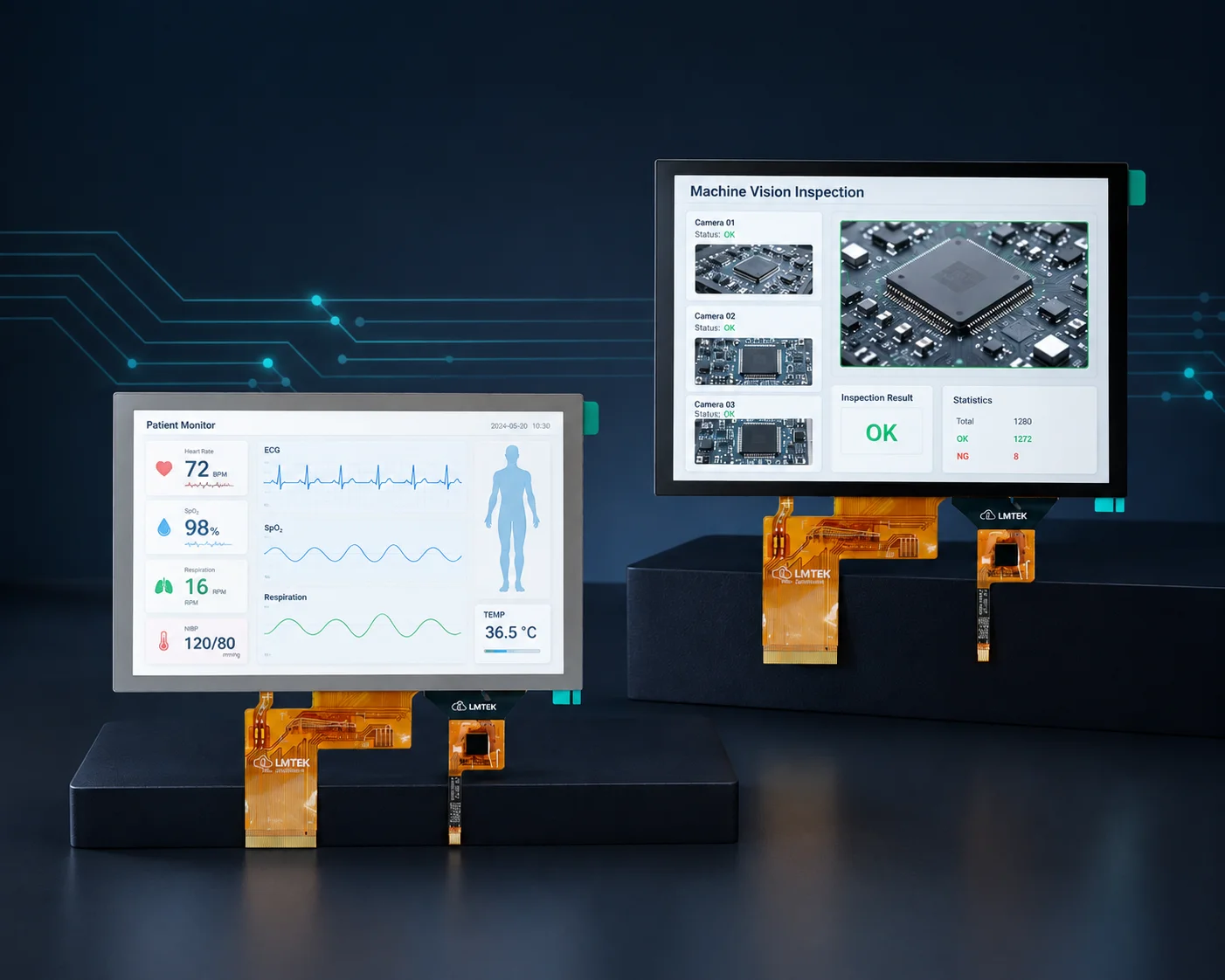

LVDS Display Modules for Industrial HMI and Embedded Systems
LVDS TFT LCD modules for industrial HMIs, embedded systems, machine panels and stable display signal integration.
LVDS displays help industrial product teams build stable display interfaces when the system requires reliable signal transmission, medium or larger TFT panels, or more reliable internal signal routing than a simple parallel interface.
LMTEK provides LVDS display module options for industrial HMIs, embedded systems, machine control panels, energy devices and custom display projects. Your LVDS display project can be selected by size, resolution, single or dual channel LVDS, driver IC, timing, brightness, touch requirement, FPC direction, cable route and mechanical fit.
Project Review Focus

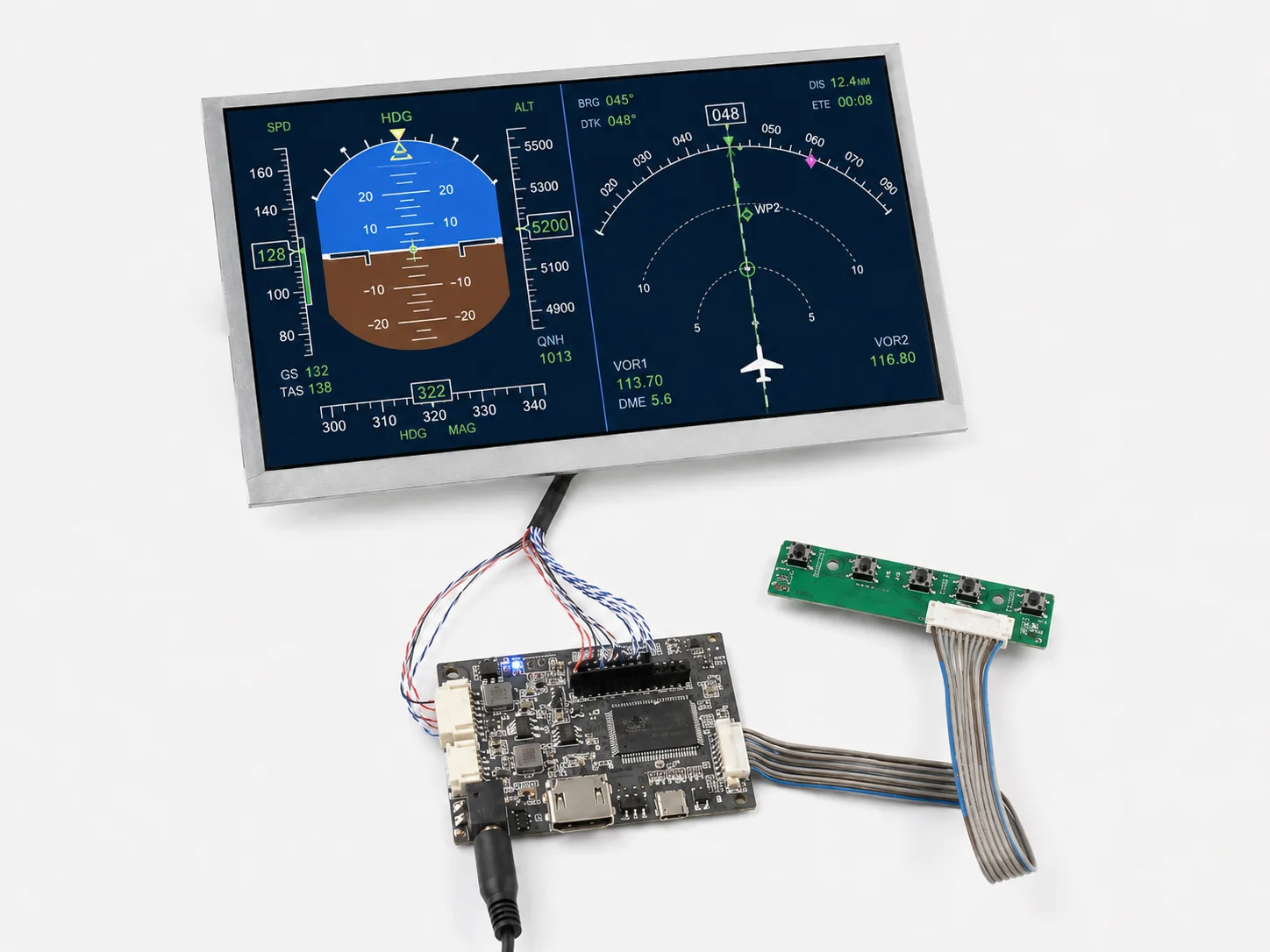

LVDS TFT LCD Modules for Stable Industrial Display Integration
LMTEK supplies LVDS display modules for product teams developing industrial HMIs, embedded control systems and equipment-level display interfaces. An LVDS TFT LCD is typically selected when your project requires stable display signal transmission, reliable timing and an interface suitable for medium or larger TFT panels.
Typical selection points include display size, resolution, single-channel or dual-channel LVDS, LVDS mapping, driver IC, timing parameters, brightness, operating temperature, touch support, FPC direction, cable route and mounting structure.
If you are looking for an LVDS display manufacturer for an OEM/ODM project, LMTEK can help match display, touch and interface options to your host platform, enclosure design and sample validation timeline.
This helps your team reduce signal mismatch, cable routing risk, FPC redesign and display bring-up delays before moving into validation.
What Is an LVDS Display Module?
An LVDS display module is a TFT LCD module that uses LVDS, or Low Voltage Differential Signaling, to transmit display data between the host system and the panel. LVDS uses differential signal pairs, making it suitable for stable high-speed display transmission in many industrial and embedded display systems.
An LVDS TFT display may use single-channel or dual-channel LVDS depending on the display size, resolution, panel design and host platform. Final signal mapping, connector definition and timing requirements should always be checked by the confirmed model datasheet.
LVDS Compared to Other Interfaces
LVDS uses differential signaling instead of many parallel data lines.
LVDS is usually a panel-level interface rather than an external video input.
LVDS is often used in industrial HMI and larger display platforms where signal stability and mature panel availability are important.
LVDS Interface Key Facts
- Low Voltage Differential Signaling (LVDS)
- Supports single-channel and dual-channel configurations
- Suitable for medium to large TFT panel sizes
- Mature interface with wide industrial panel availability
- Stable high-speed signal transmission
- Check datasheet for mapping, connector and timing
Share Your LVDS Interface Requirements
Tell us your project specifications -- size, resolution, channel type, timing, touch requirements and host platform -- and our engineering team will help match the right LVDS display module for your application.
When to Choose an LVDS Display
Choose an LVDS display when your product needs stable display transmission, industrial integration, medium or larger TFT panels, or internal routing that may be less suitable for parallel RGB.
LVDS displays are often used when your HMI or embedded device must keep the display connection reliable inside equipment, control cabinets, machine panels or industrial terminals.
Interface Fit at a Glance
| Choose LVDS When | Consider Other Interfaces When |
|---|---|
|
Your application needs stable differential display signaling
|
Your product needs very low pin count
|
|
Your TFT panel is medium or larger size
|
Your display is a compact MIPI DSI panel
|
|
Your system works in a noise-sensitive industrial environment
|
Your panel is close to the processor and RGB is enough
|
|
Your HMI needs reliable internal cable routing
|
Your project requires external HDMI input
|
|
Your platform supports single or dual channel LVDS
|
Your system is built around eDP industrial computing displays
|
LVDS is not automatically the best choice for every display project. For very compact products, MIPI DSI or SPI may be better. For short board-level layouts, RGB may be enough. For SBC or PC-style input, HDMI may be more practical.
LMTEK LVDS Display Product Series
LMTEK offers LVDS display product series for industrial products that require stable TFT display integration, touch matching, brightness review, or project-based FPC and pin definition support.
For faster evaluation, request the available model list, datasheet, LVDS timing parameters, pinout and mechanical drawing for your selected LVDS display series.
Browse LMTEK LVDS TFT LCD display modules. Filter by size, resolution, interface and specifications to find the right module for your project. Reach out to the LMTEK service team for more options.
Final specifications should be verified by confirmed LMTEK model number, datasheet and project requirements. LVDS channel, LVDS mapping, driver IC, brightness, operating temperature and touch option are model-dependent.
Project Support
LMTEK can support model selection, sample validation and production planning based on your application, target volume and project timeline. For production programs, lifecycle expectations, PCN requirements and alternative model review can also be discussed during project evaluation.

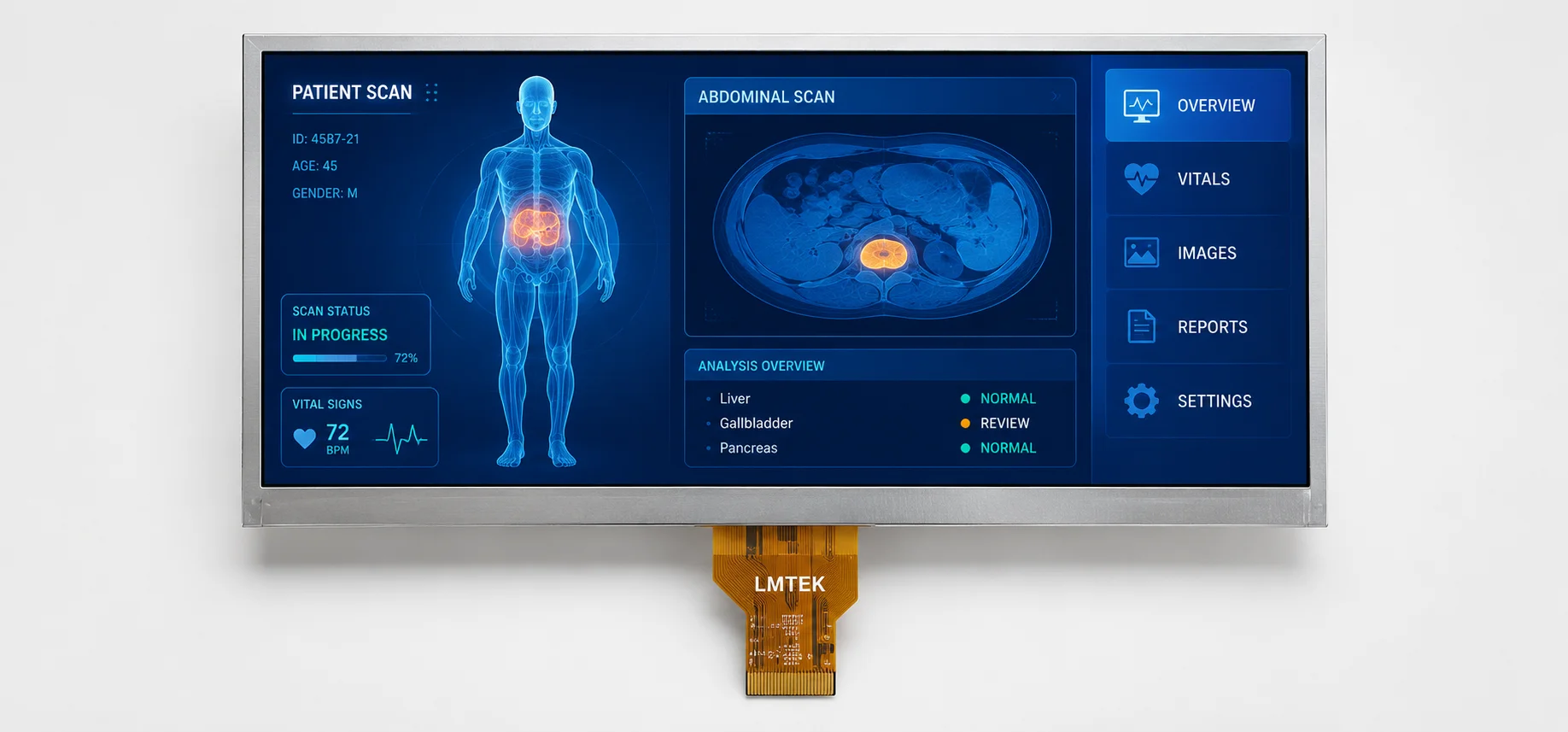

Single Channel LVDS Display Modules
Single channel LVDS display modules are often used when the panel, timing and host platform are properly matched for selected embedded display systems and industrial panels.
Request Single Channel LVDS Options

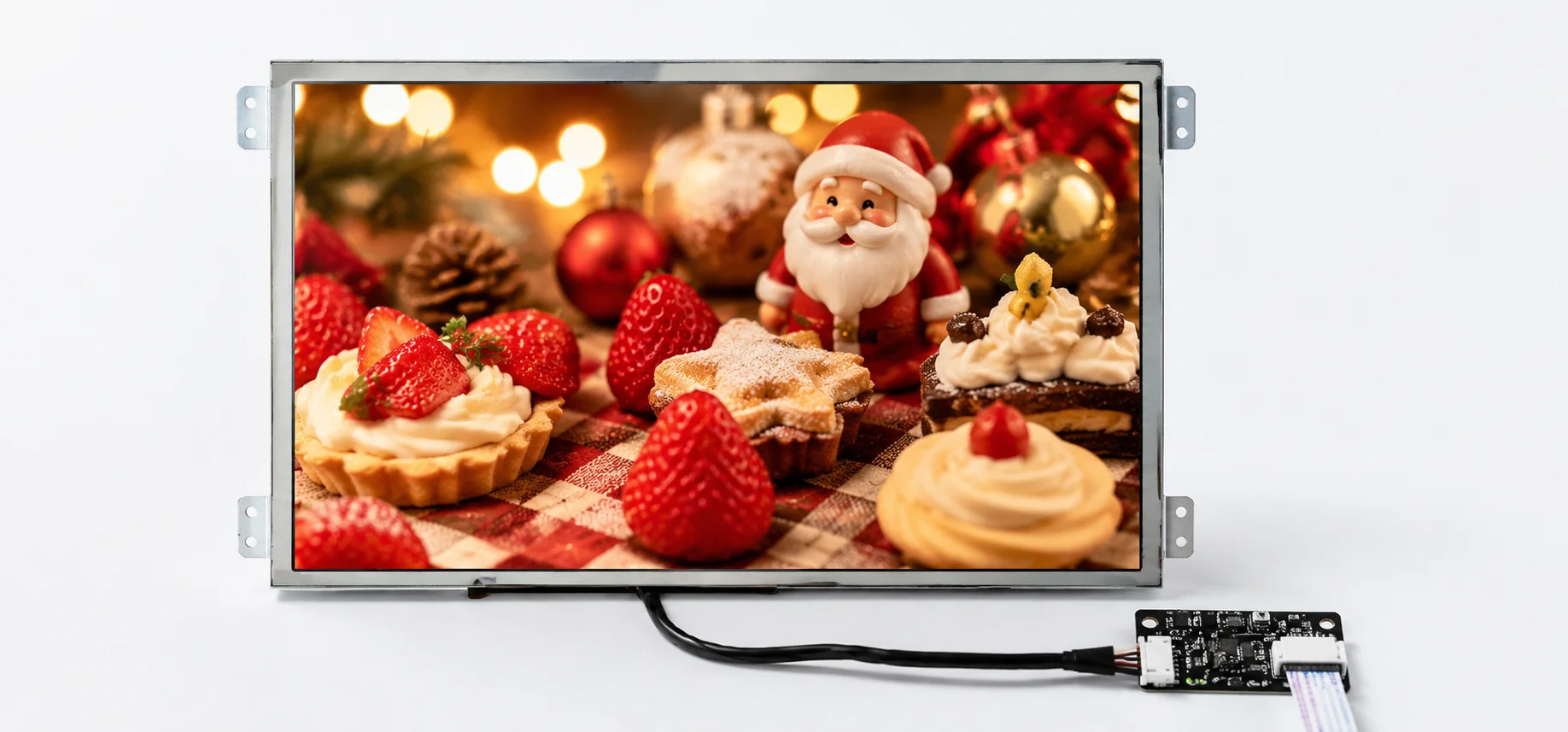

Dual Channel LVDS Display Options
Dual channel LVDS display options may be used for selected higher-resolution or larger display projects. Your team should confirm channel configuration, LVDS mapping, clock timing and host controller support before sample selection.
Check Dual Channel LVDS Availability

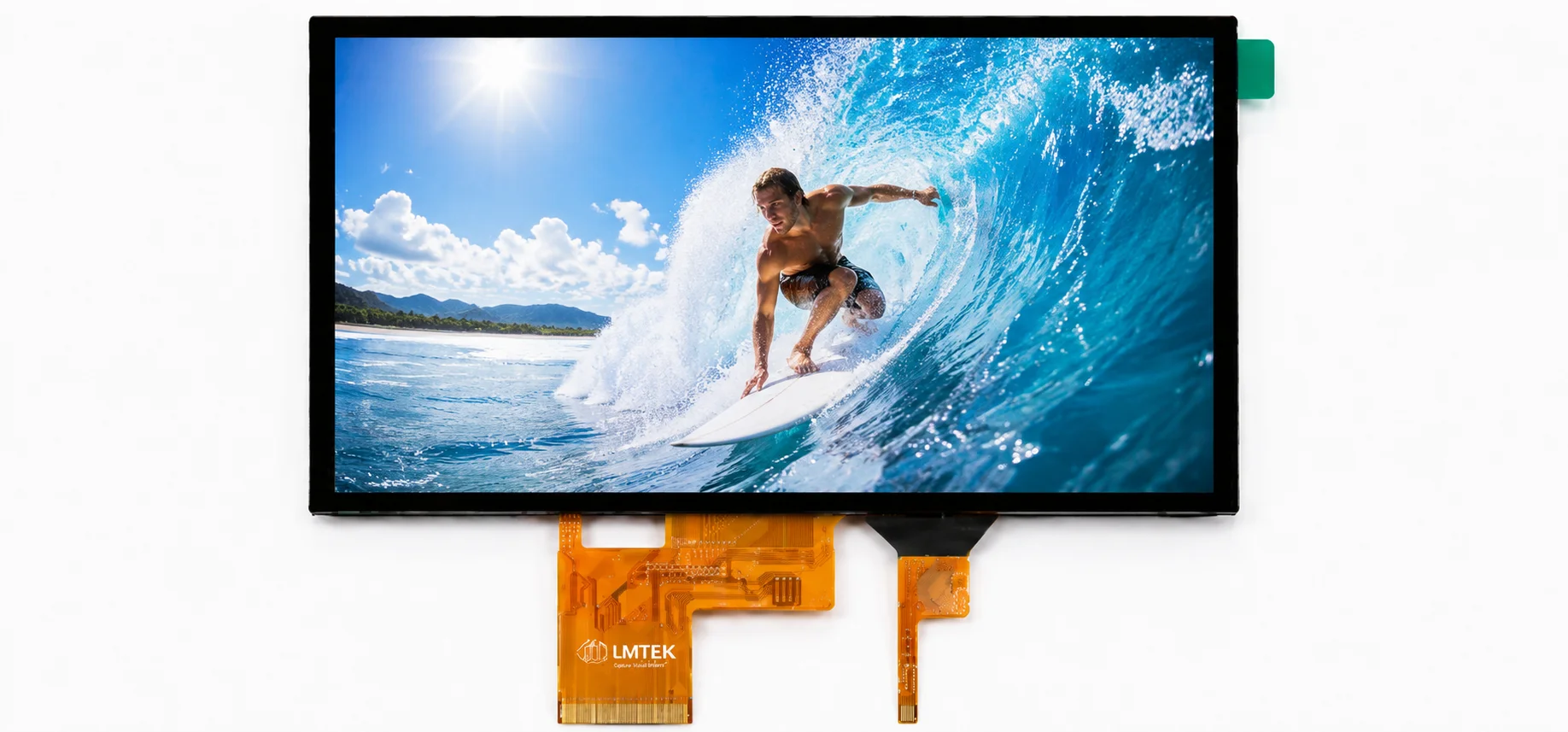

LVDS Display with Touch
An LVDS display with touch is suitable when your product requires direct user interaction. Touch selection should be checked together with cover lens design, bonding method, touch interface, front-panel structure and operating environment.
Review LVDS Touch Display OptionsKey Advantages of LVDS Displays
Stable Differential Signal Transmission
LVDS uses differential signal pairs to support stable display data transmission. This makes LVDS display modules a practical choice for industrial systems where signal integrity, timing alignment and internal routing need careful control.
Suitable for Industrial HMI and Larger TFT Panels
LVDS TFT LCD modules are commonly considered for industrial HMIs, embedded control terminals and medium or larger TFT panels. Suitable size and resolution depend on the panel model, LVDS channel configuration, driver IC and host platform.
Better Fit for Noise-Sensitive Equipment
Compared with parallel RGB, LVDS can be a better fit for noise-sensitive equipment and internal display connections that require stronger signal stability. Cable design, shielding, grounding and system layout should still be confirmed during project evaluation.
Touch, Backlight and Mechanical Integration Support
LMTEK helps align LVDS display selection with touch panel matching, backlight brightness, FPC direction, pin definition, cover lens design and mechanical structure. This helps your team validate the display as part of the complete front-panel interface.
Typical Applications of LVDS Displays

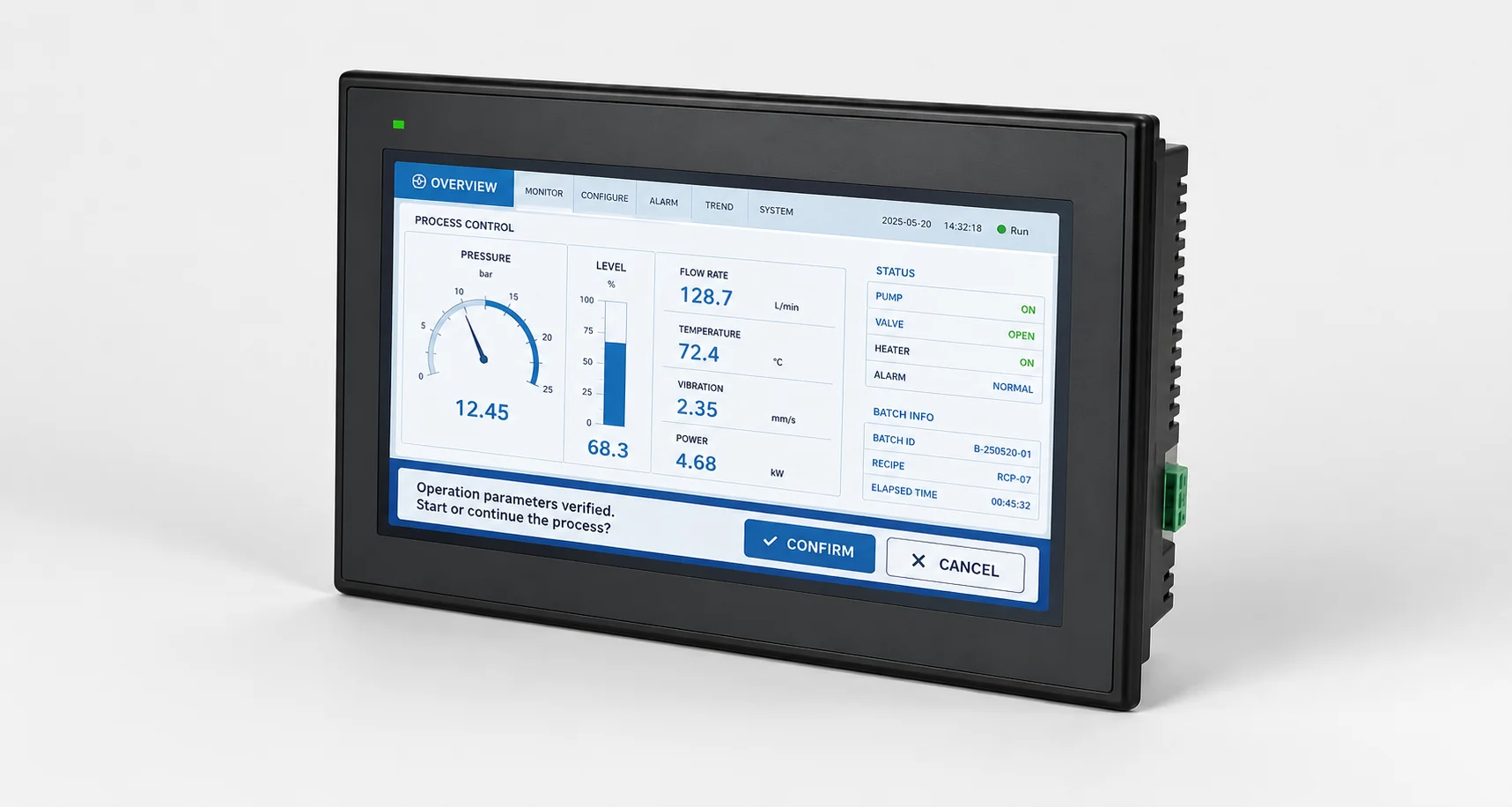

LVDS Display for Industrial HMI Panels
LVDS displays can be used in industrial HMI panels, machine control interfaces, factory automation terminals and operator panels that require stable display integration and clear visual feedback.

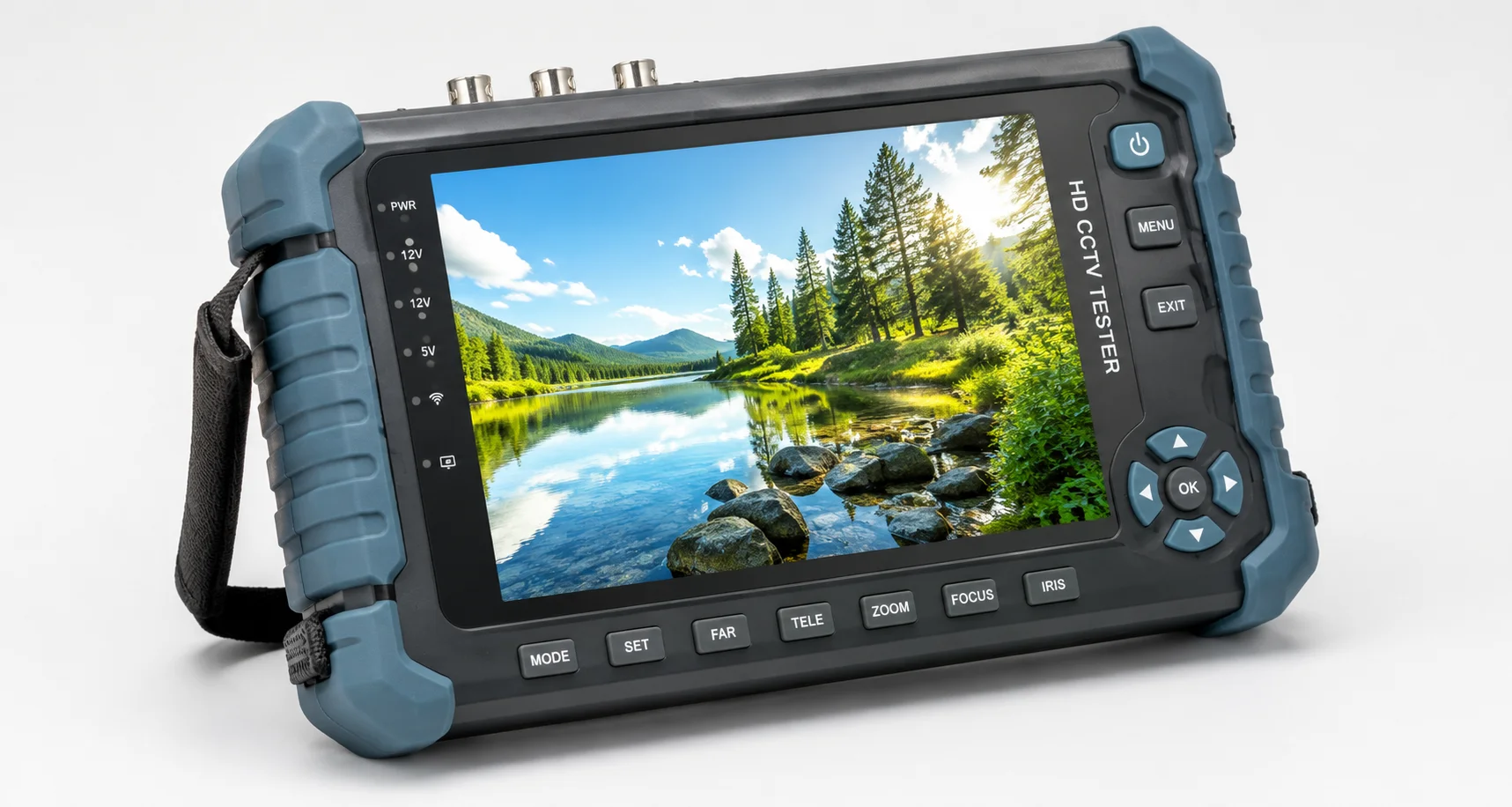

LVDS TFT Display for Embedded Systems
LVDS TFT display modules are suitable for embedded control systems, SBC-based devices, equipment terminals and display platforms where the host system supports LVDS output.

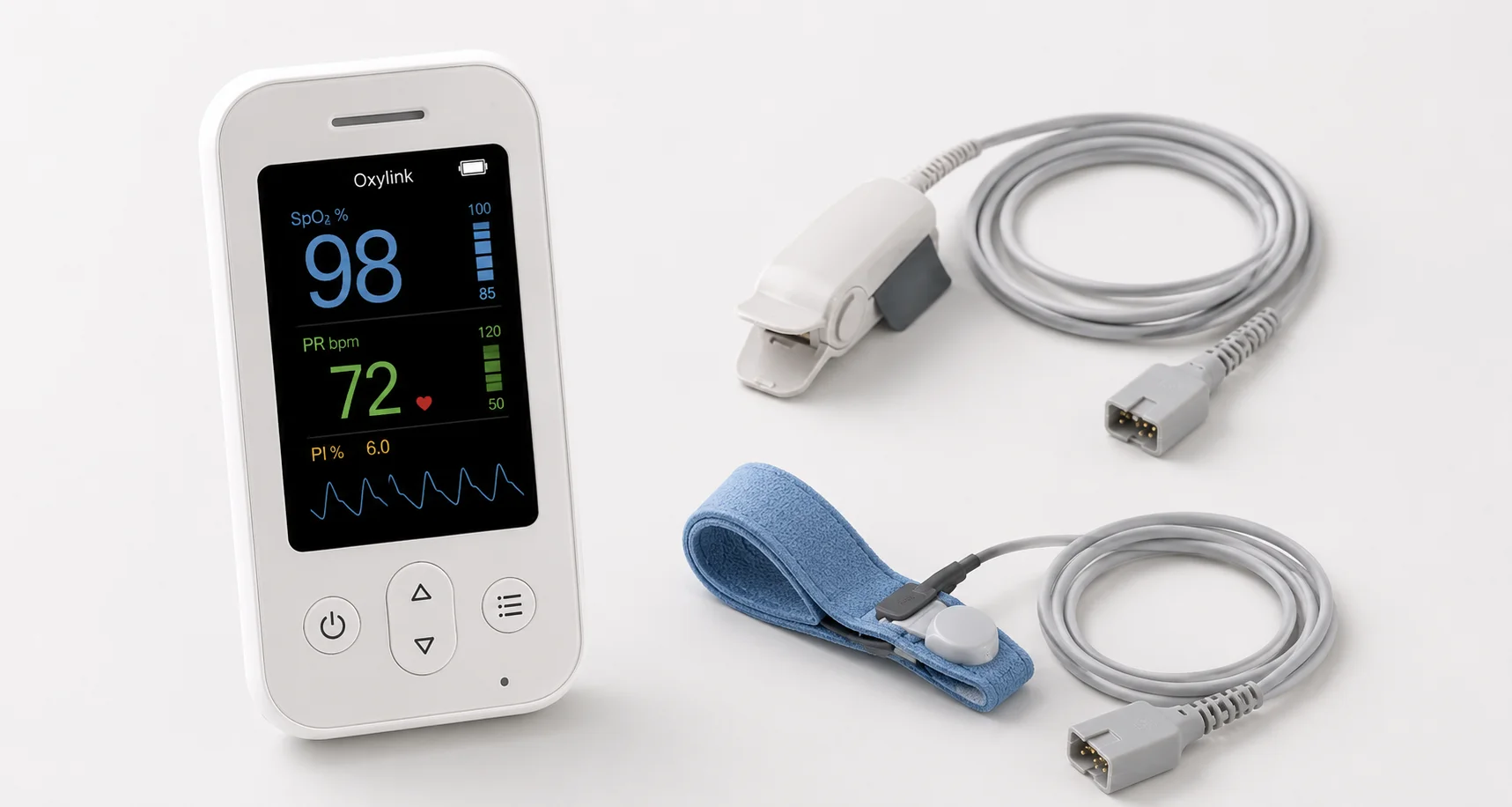

LVDS TFT LCD for Healthcare-Related Interfaces
Selected healthcare-related devices may use LVDS TFT LCD modules for monitoring interfaces, equipment displays or compact control panels. Any medical or compliance requirement should be confirmed by project and application.

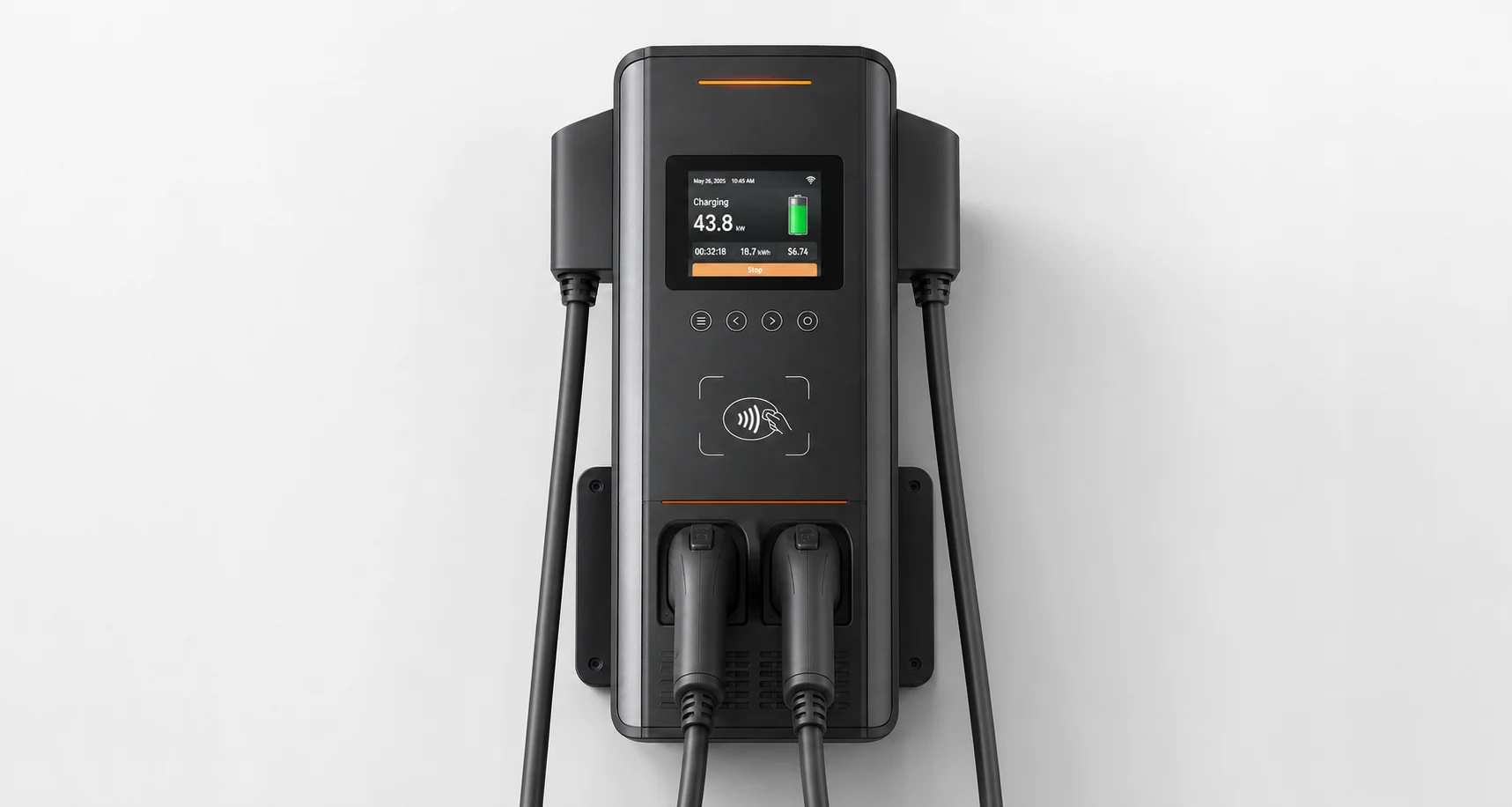

LVDS Display Module for Energy and EV Charging Panels
LVDS display modules can support energy management devices, EV charging panels and power monitoring interfaces where local visualization, status display and stable operation are important.
LVDS Display for Transportation and Outdoor Equipment
LVDS displays may be considered for transportation terminals, outdoor equipment panels and semi-outdoor HMI applications. Brightness, operating temperature, enclosure and sealing requirements should be confirmed by model and system design.

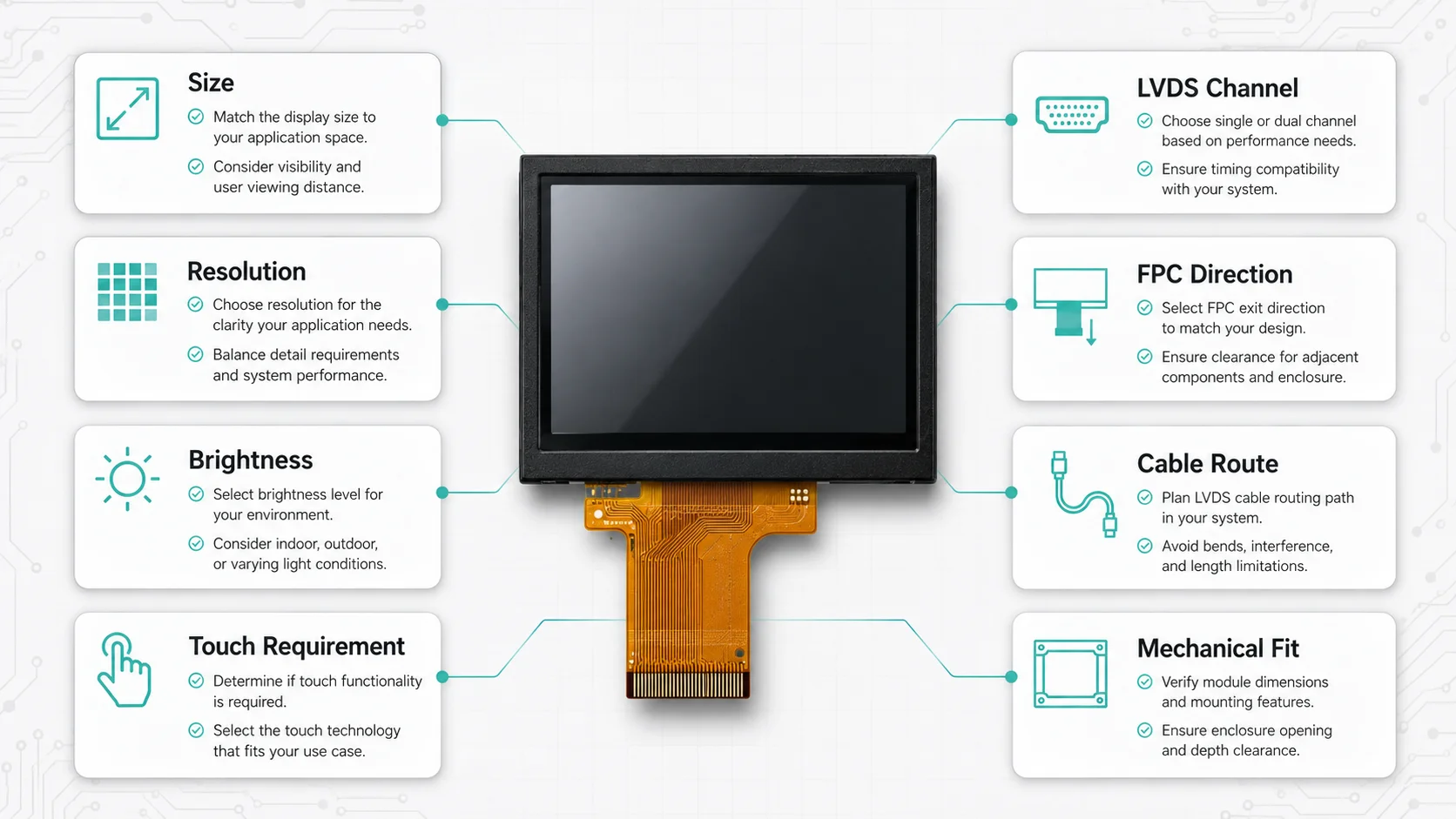

How to Select an LVDS Display Module
An LVDS display module should not be selected by size alone. When selecting an LVDS LCD module, your team should confirm the TFT LCD LVDS interface, channel configuration, timing signals, cable route and host platform capability before sample validation.
Display Size and Resolution
Confirm the target display size, resolution, aspect ratio and UI content. LVDS displays are often selected for industrial display systems, but final suitability depends on the panel model and host output capability.
Single / Dual Channel LVDS
Confirm whether your project needs single-channel or dual-channel LVDS. Channel configuration must match the panel datasheet, host output and LVDS mapping.
LVDS Timing, Mapping and Driver IC
Check driver IC, LVDS mapping, clock frequency, timing parameters and initialization requirements. These details are important for reliable display bring-up and system-level validation.
Cable Length, Connector and Signal Routing
Review FPC or cable length, connector type, shielding, grounding and routing path before sample selection. This can reduce signal instability and redesign risk during integration.
Touch Interface and Cover Lens
If touch is required, confirm whether the project needs RTP or PCAP, and check I²C or USB touch interface options together with cover lens, printing area and bonding method.
Brightness, Backlight and Power Budget
Check brightness, backlight voltage/current, PWM dimming requirement and power budget. Brightness should be confirmed by model and operating environment.
Operating Temperature and Lifecycle
For industrial LVDS display projects, confirm operating temperature, backlight lifetime, sample timeline, annual volume and lifecycle requirements before moving into validation.
Need Help Selecting?
Our engineering team can help you confirm the right LVDS display module for your project requirements.
LVDS Display Selection Process
Define Requirements
Size, resolution, channel
Verify Datasheet
Timing, driver IC, mapping
Confirm Integration
Touch, cable, backlight
Sample Validation
Test & approve
Need a Custom LVDS Display?
Project-Based Support for FPC, Pin Definition, Touch and Backlight
If your project requires more than a standard LVDS display module, LMTEK can evaluate selected customization needs based on project feasibility and production requirements.
Typical requirements may include FPC direction, pin definition, LVDS mapping, interface adjustment, touch panel matching, cover lens design, brightness tuning, bonding method and mechanical fit.
For detailed customization options, please visit our Custom TFT Display page.
Explore Custom TFT Display OptionsRelated TFT Display Interface Categories
TFT Displays
Explore LMTEK TFT display modules with size, resolution, brightness, touch and interface options for industrial and embedded applications.
View TFT DisplaysRGB TFT Displays
Review RGB TFT display modules for parallel pixel data, PCLK, HSYNC / VSYNC, DE and graphical embedded UI.
View RGB TFT DisplaysMCU TFT Displays
Review MCU TFT display modules for 8080/6800 bus, controller-based UI and compact embedded interfaces.
View MCU TFT DisplaysSPI TFT Displays
Review SPI TFT display options for compact devices, low-pin-count designs and simple graphical interfaces.
View SPI TFT DisplaysMIPI Displays
Explore MIPI DSI display options for compact, high-resolution embedded systems and SoC-based platforms.
View MIPI DisplaysHDMI TFT Displays
Explore HDMI TFT display options for controller-board-based integration, SBC projects and fast sample validation.
View HDMI TFT DisplayseDP Displays
Review eDP display options for high-resolution embedded computing platforms and industrial display systems.
View eDP DisplaysTouch Screens
Review resistive and capacitive touch screen options with cover lens, surface treatment, bonding and interface support.
View Touch ScreensCustom TFT Displays
Need changes to FPC, pin definition, touch, backlight or mechanical fit? Review LMTEK's project-based custom TFT display options.
View Custom TFT DisplaysLVDS Display FAQ
What is an LVDS display?
What is the difference between LVDS display and RGB TFT display?
What is the difference between LVDS display and MIPI display?
What are single-channel and dual-channel LVDS displays?
Can LVDS displays support capacitive touch?
Which sizes and resolutions are suitable for LVDS displays?
Can LMTEK customize the FPC or pin definition for LVDS displays?
Share Your LVDS Display Requirements
Send us your target specifications and application details. LMTEK will review your display size, resolution, LVDS channel configuration, timing signals, touch requirement and mechanical constraints to help recommend a suitable LVDS display module or customization path.
