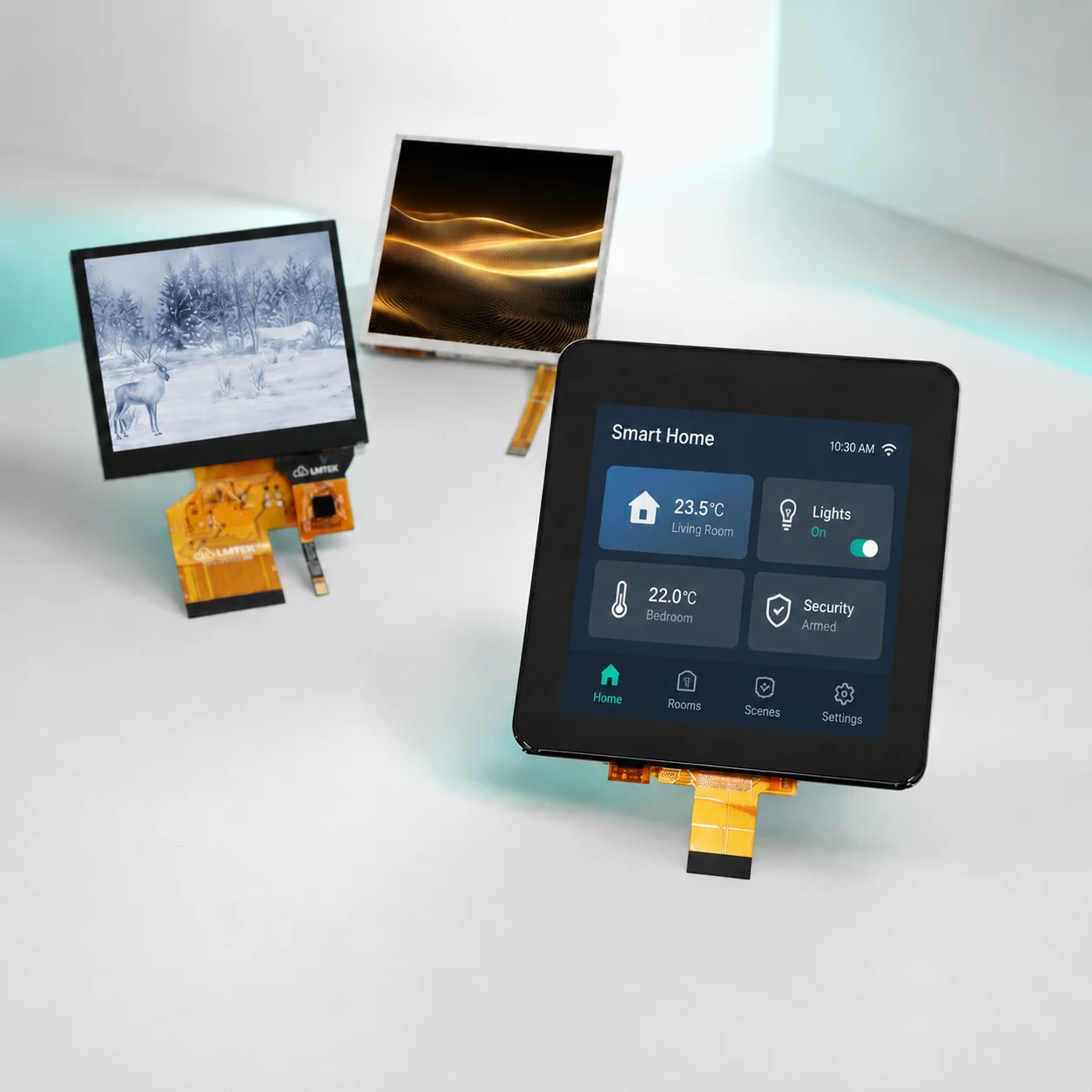

Square Display Modules for Embedded and Industrial Applications
Compact square TFT and LCD display modules for smart controls, industrial panels, portable devices and embedded interfaces.
Square displays help you build compact, balanced user interfaces when your product needs a 1:1 display format instead of a standard rectangular screen. LMTEK provides square display module options for embedded systems, smart controls, industrial panels, portable devices and custom display projects. Your square display project can be reviewed by size, resolution, interface, brightness, touch requirement, FPC direction, cover lens design and mechanical integration needs.
Project Review Focus
OEM / ODM Ready
Custom from 2.0″ to 15.6″
Compact 1:1 Display Modules for Balanced Product Interfaces
LMTEK supplies square display and square LCD display modules for product teams developing compact embedded interfaces, smart controls, industrial panels and portable devices.
Balanced UI in a 1:1 Format
A square display module is designed for balanced UI layouts where icons, values, menus and status information need to fit within a compact 1:1 display area.
Typical Review Points
OEM / ODM Manufacturer Support
If you are looking for a square display manufacturer for an OEM/ODM device, LMTEK can help review your display, touch and interface requirements before sample validation.
Start Your Project Review
Share your target specifications, and LMTEK can help recommend a suitable square display module, datasheet, mechanical drawing or project-based customization path.

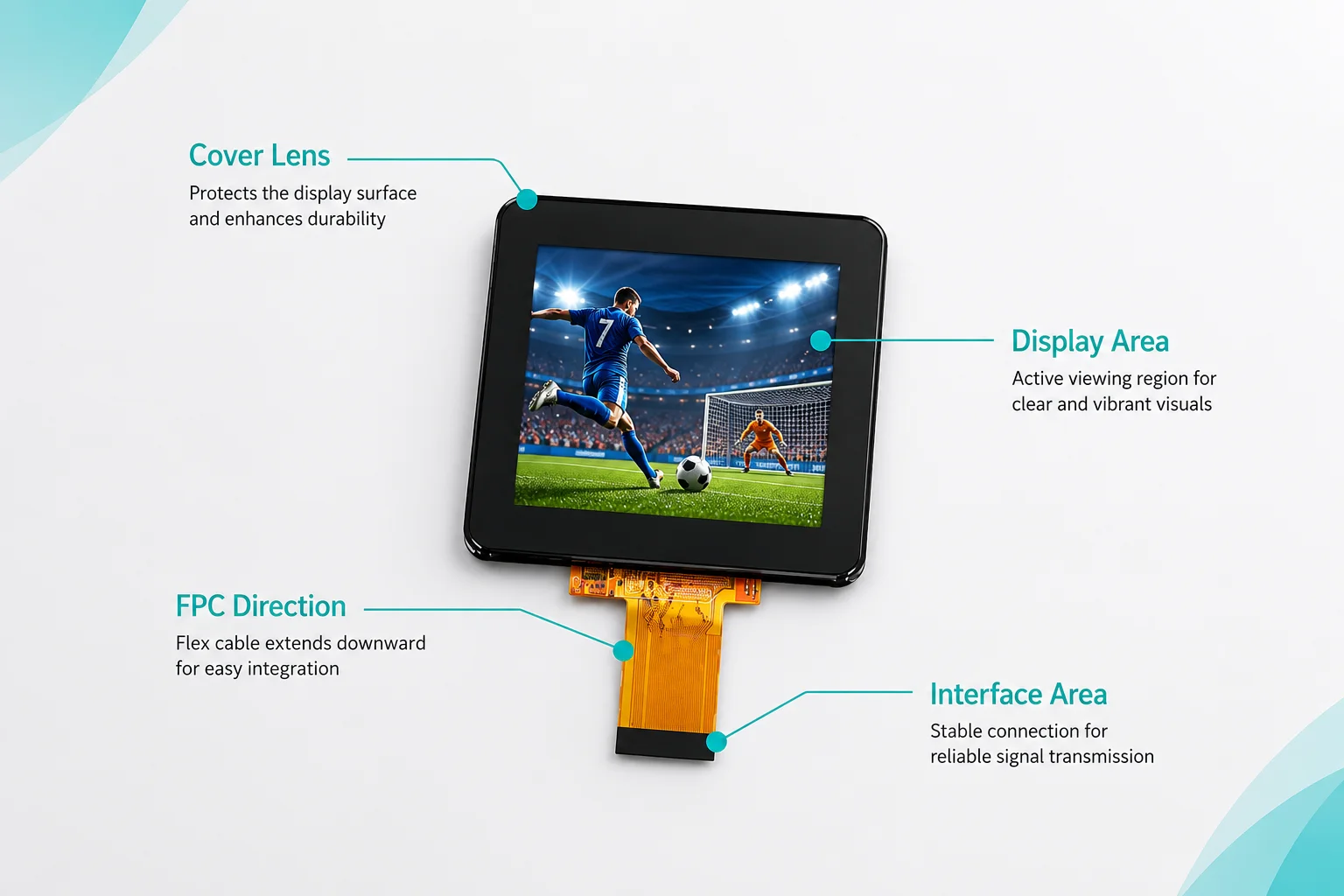

What Is a Square Display Module?
A square display module is a TFT LCD module with a square active area or a near 1:1 aspect ratio. It may also be called a square TFT LCD, square TFT LCD display, square LCD display, square LCD module or square display module, depending on the product category and application.
Compared with a standard rectangular TFT display, a square display is often selected because of UI balance, front-panel structure and product ID. It allows your interface to show icons, values, menus, status tiles, images and touch controls in a compact display area that fits small panels, smart devices and embedded products.
Also Known As

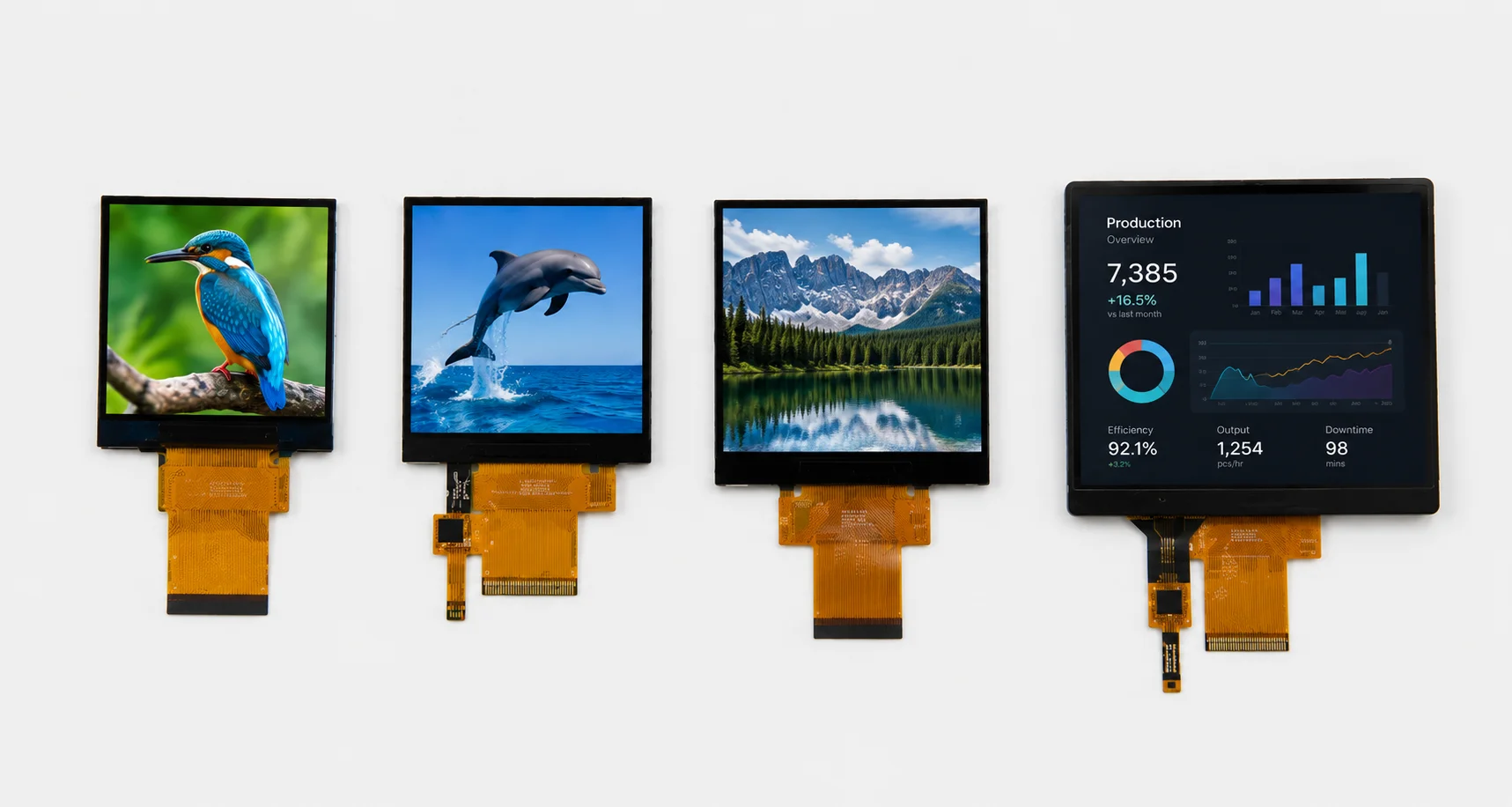

Square vs. Rectangular TFT Display
Key selection differences
| Factor | Square TFT | Rectangular TFT | Aspect Ratio | 1:1 (square) | 16:9 / 4:3 / etc. | UI Layout | Balanced, icon-centric | Wide / landscape | Panel Fit | Compact square cutout | Standard wide cutout | Use Case | Controls, HMI, IoT | Media, dashboards | Product ID | Distinctive form | Conventional form | Touch Support | RTP / CTP available | RTP / CTP available |
|---|
What Fits in a Square Display Area
When to Choose a Square Display
Choose a square display when your UI needs a balanced 1:1 area for icons, values, menus, status tiles or compact touch controls. It is suitable for products where the display should feel centered, compact and visually balanced on the front panel.
Square Display
Best choice when your UI needs a balanced 1:1 area. Ideal for icons, values, menus, status tiles and compact touch controls on a centered front panel.
Best Fit for Your Use CaseRound Display
May be a better fit if your product requires a circular dial, radial interface or watch-style UI with rotational navigation.
Consider for Dial / Radial UIBar LCD / Rectangular TFT
More suitable for long status strips, progress bars, narrow equipment panels or larger content areas needing standard layout flexibility.
Consider for Strip / Wide LayoutBest Fit Application Examples
LMTEK Square Display Product Series
LMTEK offers square display product series for projects that require compact display modules, square LCD screens, square touch displays or 1:1 aspect ratio display modules for equipment-level integration.
You can select a product by size, resolution, active area, module dimension, interface, brightness, touch requirement and mechanical fit. For faster evaluation, request the available model list, datasheet and mechanical drawing for your selected square display series.
Compact square-format display modules for versatile embedded applications.
Square Display Module Series Detail

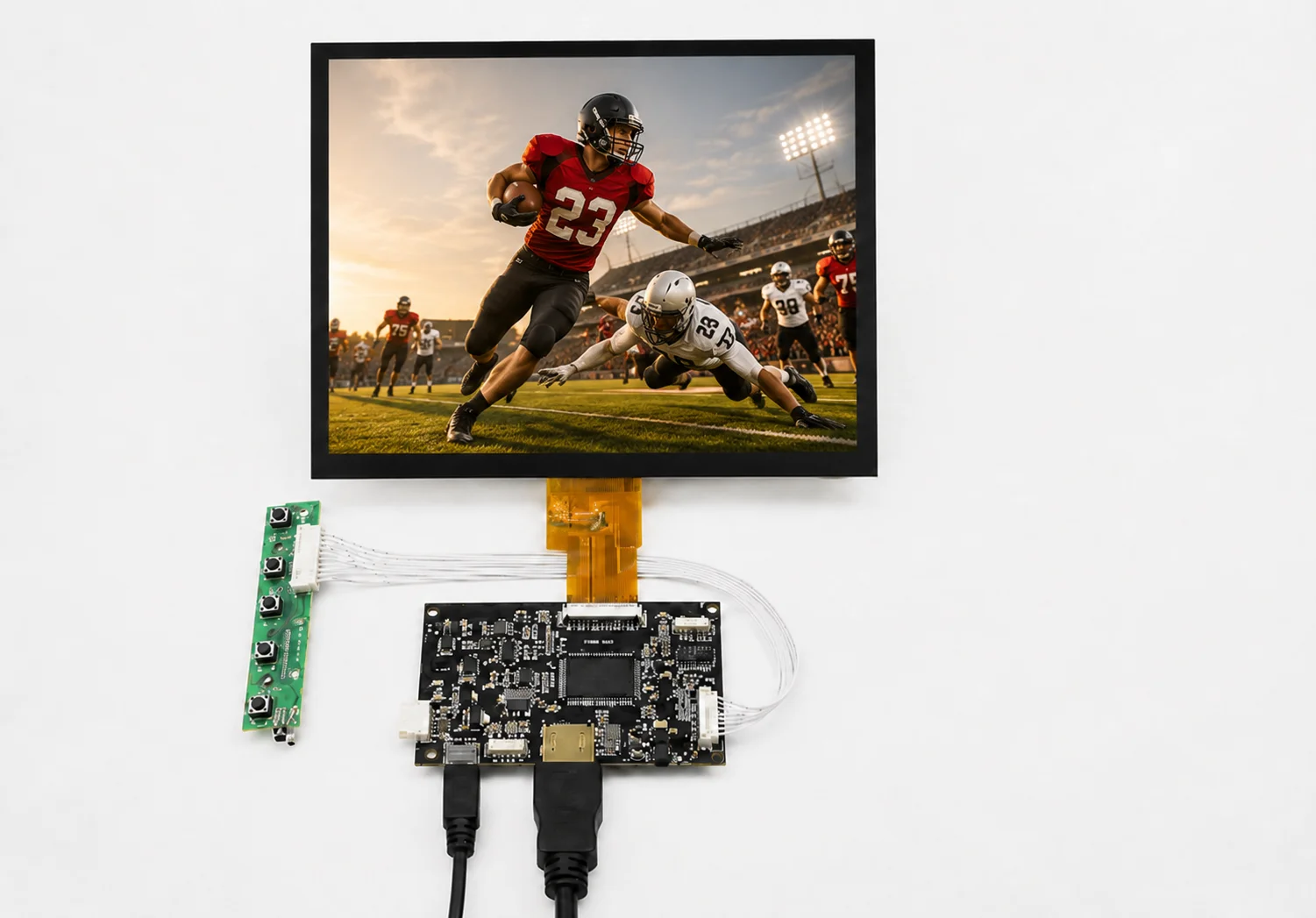

Small Square Display Modules
Small square display modules are suitable for compact products that need a clear graphical interface in a limited front-panel area. They can be used for portable devices, compact instruments, handheld products, small status screens and smart control interfaces.
Typical Review Points

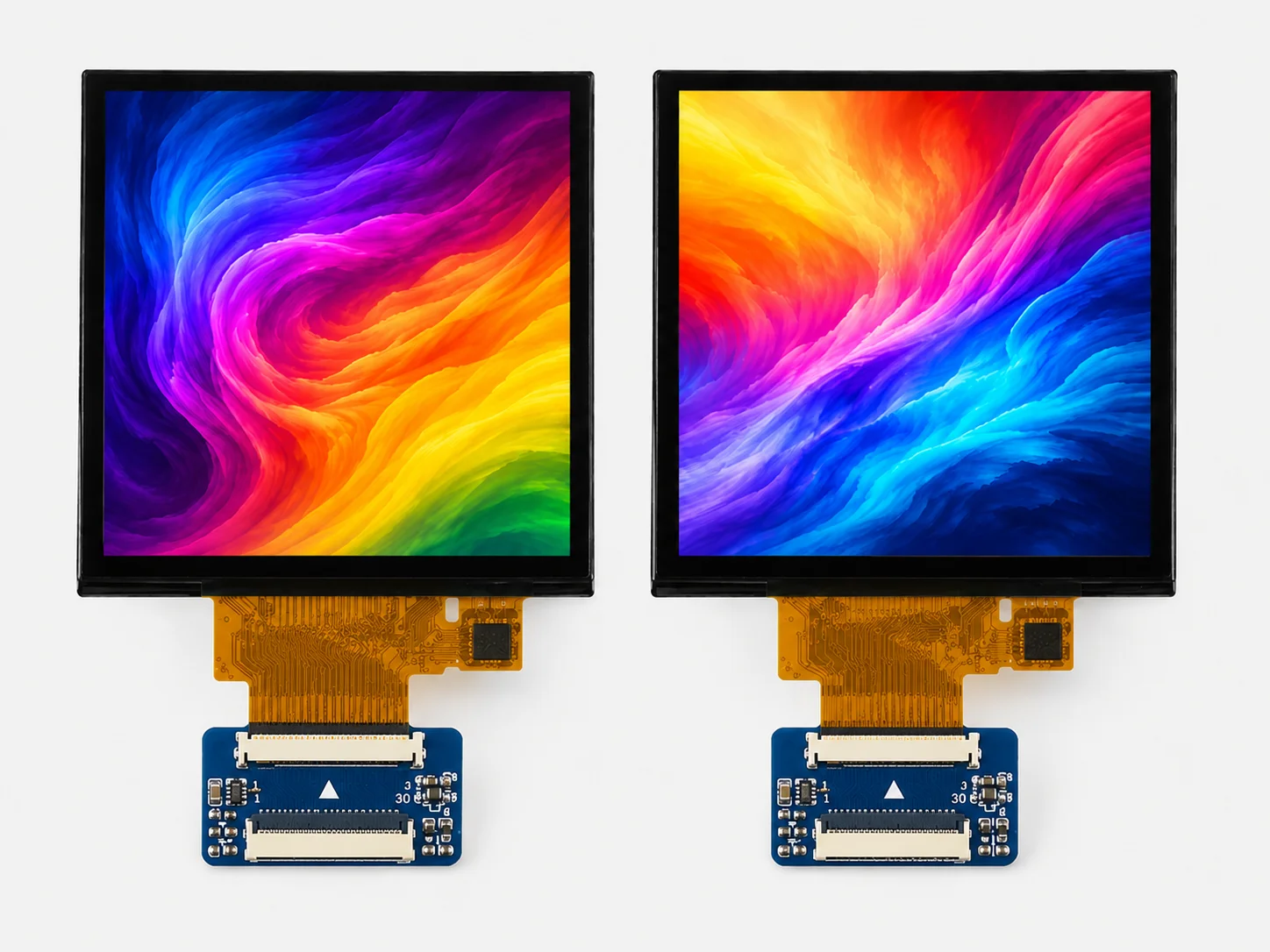

Square IPS TFT Display Options
Square IPS TFT display options may be suitable when your application requires wider viewing angles and more consistent visual performance. These options are often considered for smart control panels, wall-mounted devices, compact HMIs and industrial interface designs.
IPS availability depends on the selected model, size and project requirements.

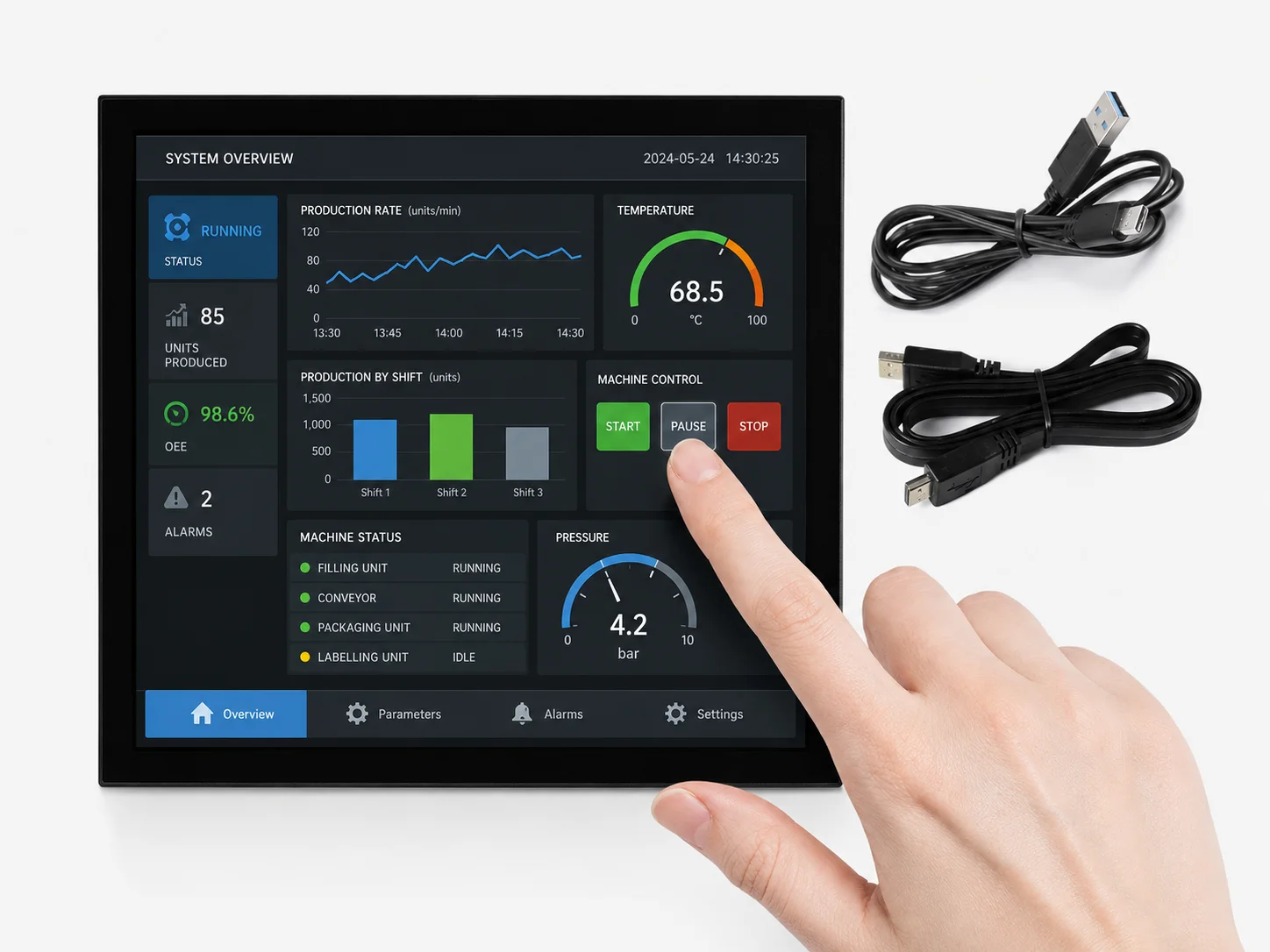

Square Touch Display Modules
Square touch display modules are suitable when your product requires direct user interaction through a compact 1:1 screen. Capacitive touch, cover lens design, bonding method and surface treatment can be reviewed together based on the selected model and project requirements.
Capacitive Touch (CTP)
Multi-touch, high sensitivity, project-dependent
Cover Lens & Bonding
Optical bonding, AR/AG/AF surface treatment
Commonly Considered For
- Smart home controls
- Compact HMIs
- Appliance panels
- Portable devices
- Industrial control interfaces
CTP Available
Model-dependent
Key Advantages of Square Displays
1:1 Aspect Ratio for Balanced UI Layouts
A square display gives your interface equal horizontal and vertical space. This format works well for icons, values, status tiles, menus, grid layouts, simple graphics and compact touch controls.
Compact Form Factor for Small Front Panels
Square LCD display modules are useful when your product has limited front-panel space but still needs a graphical user interface. They can fit into compact housings, wall-mounted controls, handheld instruments and small equipment panels.
Clear Visual Feedback for Icons, Values and Status Screens
Compared with simple LEDs or segment displays, a square TFT LCD can show richer information in a compact format. Your product can display icons, numbers, warning colors, menu items, graphics and status feedback within a small square screen.
Flexible Integration with Touch and Embedded Systems
LMTEK reviews touch, cover lens, bonding, display interface and platform requirements during project evaluation. A square display with SPI interface may be suitable for compact low-pin-count designs, while a square display with MIPI interface or RGB interface may be considered for higher-resolution embedded platforms.
Typical Applications of Square Displays
Square Display for Smart Home and Building Control
A square display for smart home control can be used in thermostats, lighting controls, HVAC panels, wall-mounted controllers and building automation interfaces. The 1:1 format works well for temperature values, mode icons, schedules, status colors and compact touch menus.
Square LCD Display for Industrial Control Panels
Square LCD display modules can work as compact status screens, parameter displays or operator interfaces in industrial equipment. They are suitable for machines, instruments, control boxes and panel-mounted devices that require clear visual feedback in a small display area.

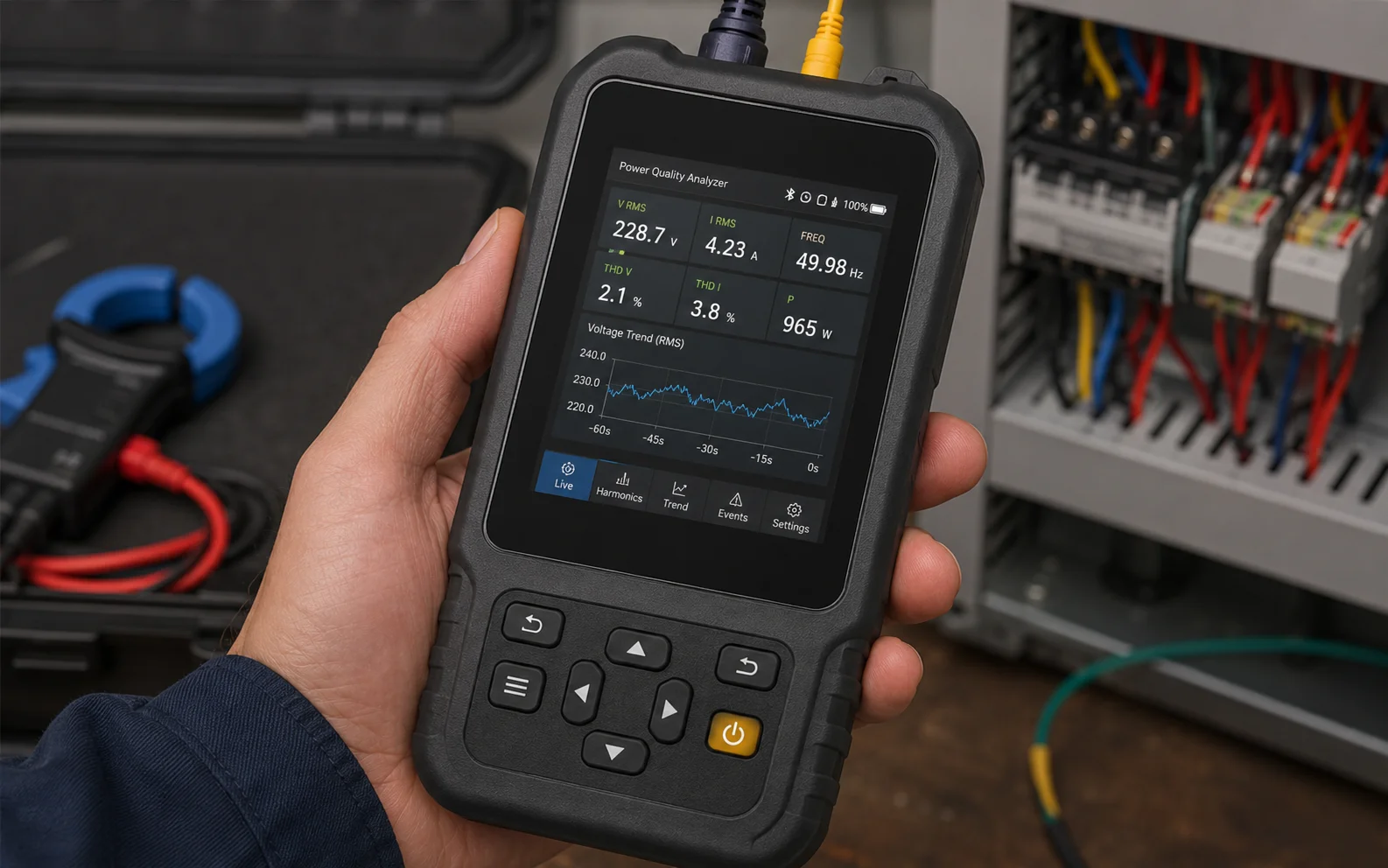

Square Display Module for Portable and Handheld Devices
A square display module can be used in portable instruments, handheld devices, measurement tools and compact monitoring products. Your interface can show values, battery status, warnings, icons and simple menus without using a large rectangular display.

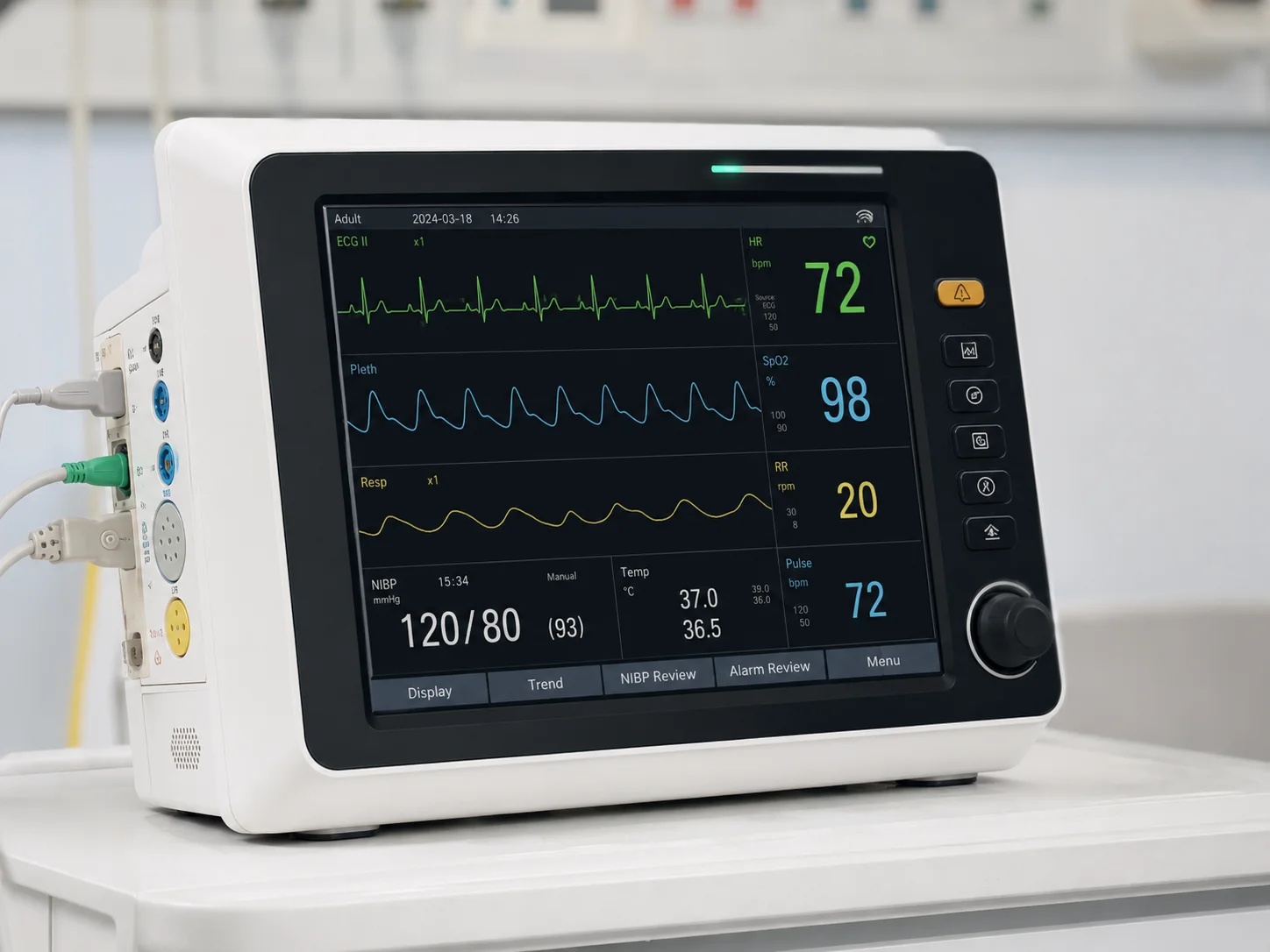

Square TFT LCD for Medical and Healthcare Interfaces
Selected healthcare-related devices may use square TFT LCD modules for compact readings, monitoring feedback or simplified control interfaces. For these applications, display selection should be reviewed based on readability, touch requirement, operating environment, mechanical fit and any project-specific compliance needs.
This section does not constitute a medical certification claim.
Square Touch Display for Smart Appliances and Compact HMIs
Square touch display modules are suitable for appliance control panels, coffee machines, kitchen equipment, compact HMIs and smart device interfaces. The square format supports icon-based control, menu selection, status display and direct touch interaction in a compact front-panel area.
How to Select a Square Display Module
A square display module should not be selected by size alone. To find a suitable square TFT LCD for your product, your team should review display, electrical, touch and mechanical requirements together.
Size, Active Area and Mechanical Opening
Confirm the target display size, active area, visible area and mechanical opening required by your product design. For square displays, the display area, cover lens, enclosure and FPC routing should be reviewed together.
Resolution and UI Layout
Choose a resolution that supports your icons, values, menus, status tiles and touch targets. Common square display layouts often use centered values, icon grids, compact menus and simple graphical feedback. Higher resolution may improve UI clarity, but it should also match your processor capability and power budget.
Interface and Processor Compatibility
Review your processor or controller platform before selecting SPI, RGB, MIPI DSI, MCU, LVDS, eDP or other display interface options. A square display with SPI interface may fit compact embedded products with limited pin count. A square display with RGB or MIPI interface may be considered for higher-resolution UI designs. Final interface support depends on the selected model and project platform.
Brightness and Viewing Environment
Define whether the display will be used indoors, semi-outdoors, inside equipment panels or under stronger ambient light. Brightness requirements should be confirmed by model and backlight design. For wall-mounted controls, portable devices and industrial panels, readability should be reviewed together with viewing angle, installation position and cover lens material.
Touch, Cover Lens and Bonding
Confirm whether your product needs no touch, capacitive touch or another touch solution. A square display with touch should be reviewed together with cover lens shape, printing area, surface treatment, bonding method and front-panel design. If your application requires a stronger front surface or improved optical performance, cover glass and bonding options should be evaluated during the project review stage.
FPC Direction, Mounting and Lifecycle
For compact square LCD modules, FPC exit direction, connector position and mounting space can strongly affect integration. These details should be reviewed before sample selection. Share your expected sample timeline, estimated annual volume and lifecycle requirement so LMTEK can recommend a more practical product path for validation and production.
Ready to Evaluate Your Square Display Requirements?
Share your project specifications with LMTEK. Our engineering team will review your display, touch, interface and mechanical requirements and recommend a suitable product path.
Need a Custom Square Display?
Project-Based Support for FPC, Interface, Touch and Mechanical Fit
If your project requires more than a standard square display module, LMTEK can review selected customization needs based on project feasibility and production requirements.
Typical requirements may include FPC direction, pin definition, interface adjustment, touch panel matching, cover lens design, brightness tuning, bonding method and mechanical fit. For detailed customization options, please visit our Custom TFT Display page.
Related Product Categories
Explore LMTEK's full range of display and touch solutions for industrial and embedded applications.

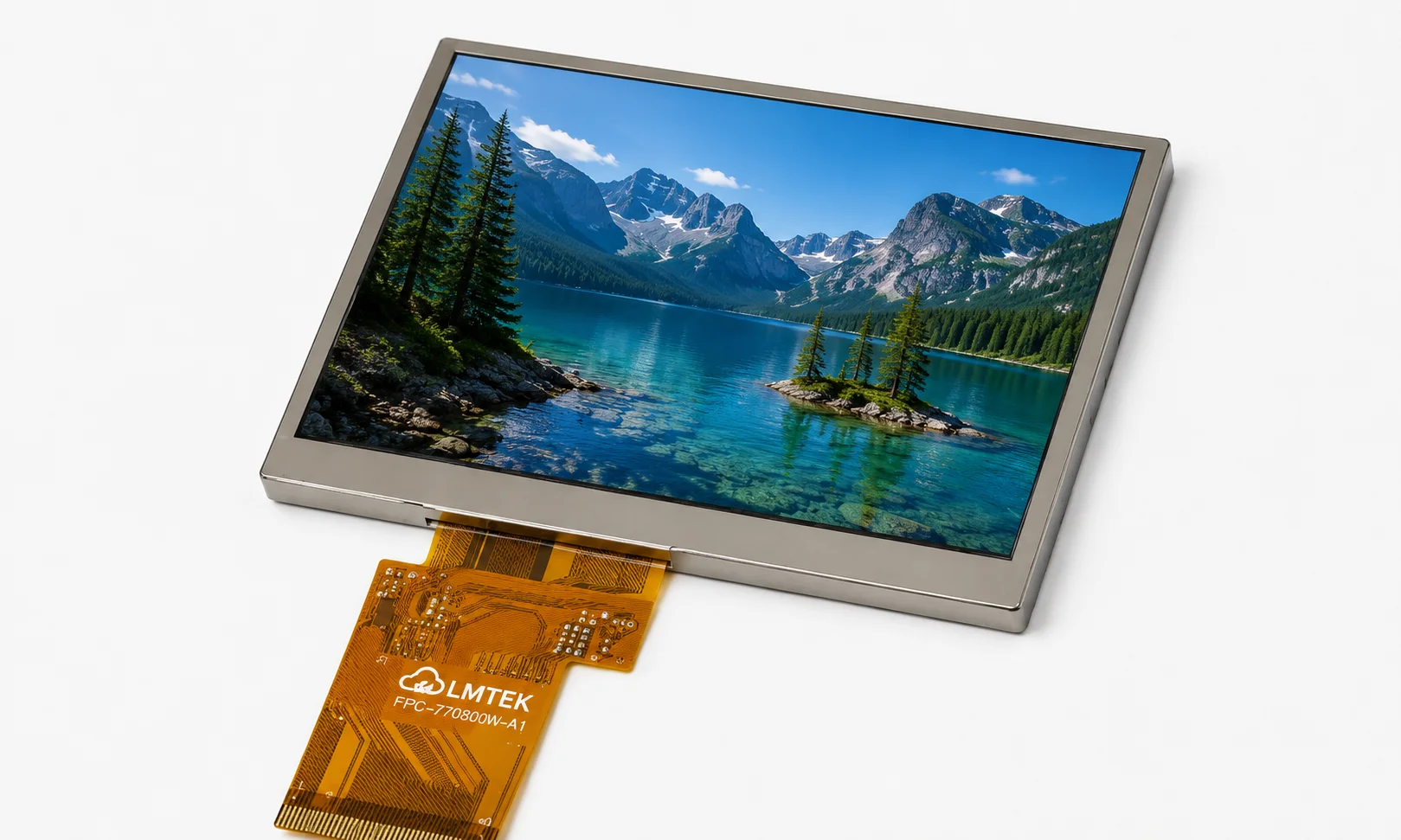

TFT Displays
Explore LMTEK TFT display modules with size, resolution, brightness and interface options for industrial and embedded applications.
View TFT Displays
Custom TFT Displays
Need changes to FPC, pin definition, touch, backlight, cover lens or mechanical fit? Review LMTEK's project-based custom TFT display options.
View Custom TFT Displays

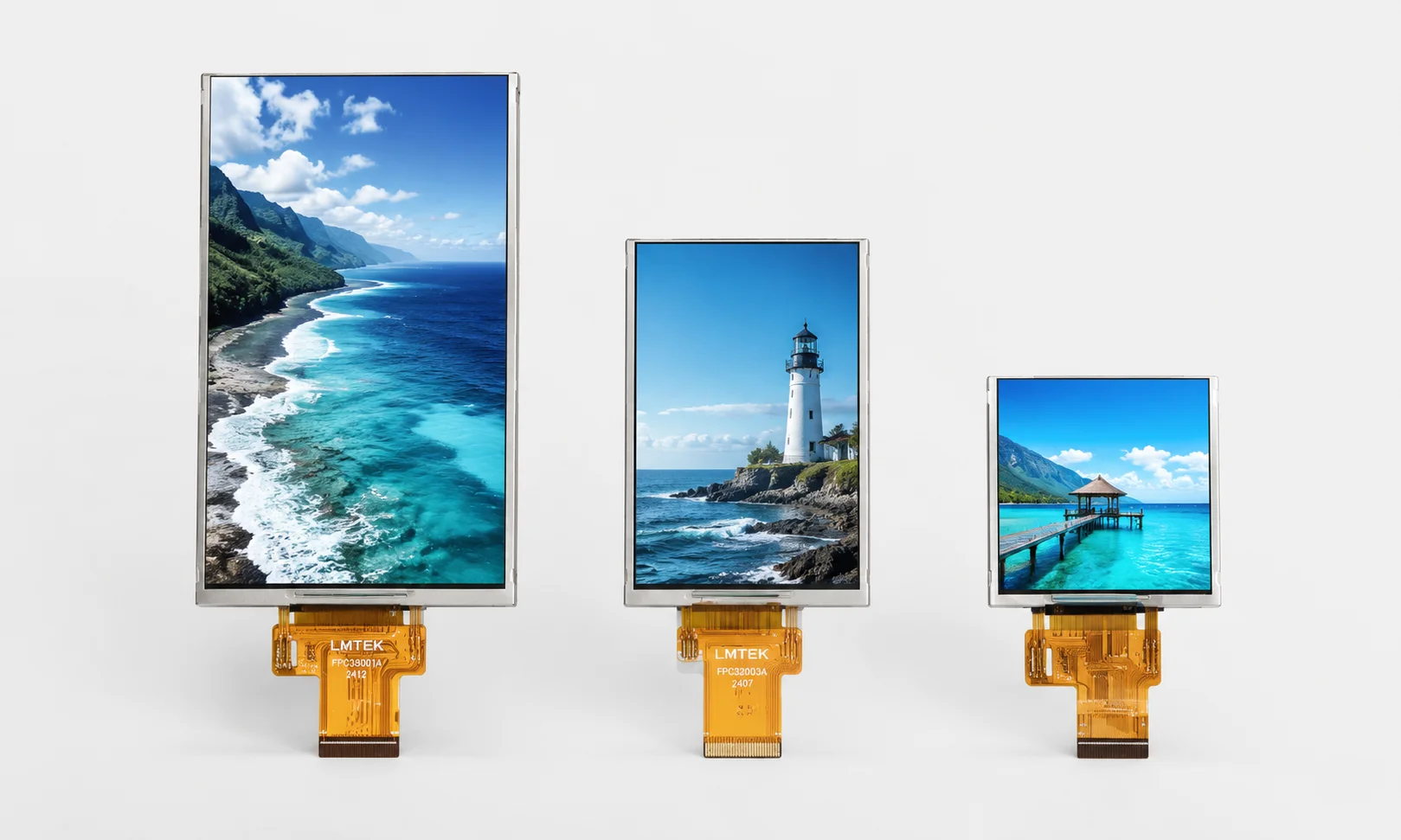

IPS TFT Displays
Choose IPS TFT displays when your application requires wide viewing angles and consistent visual performance.
View IPS TFT Displays

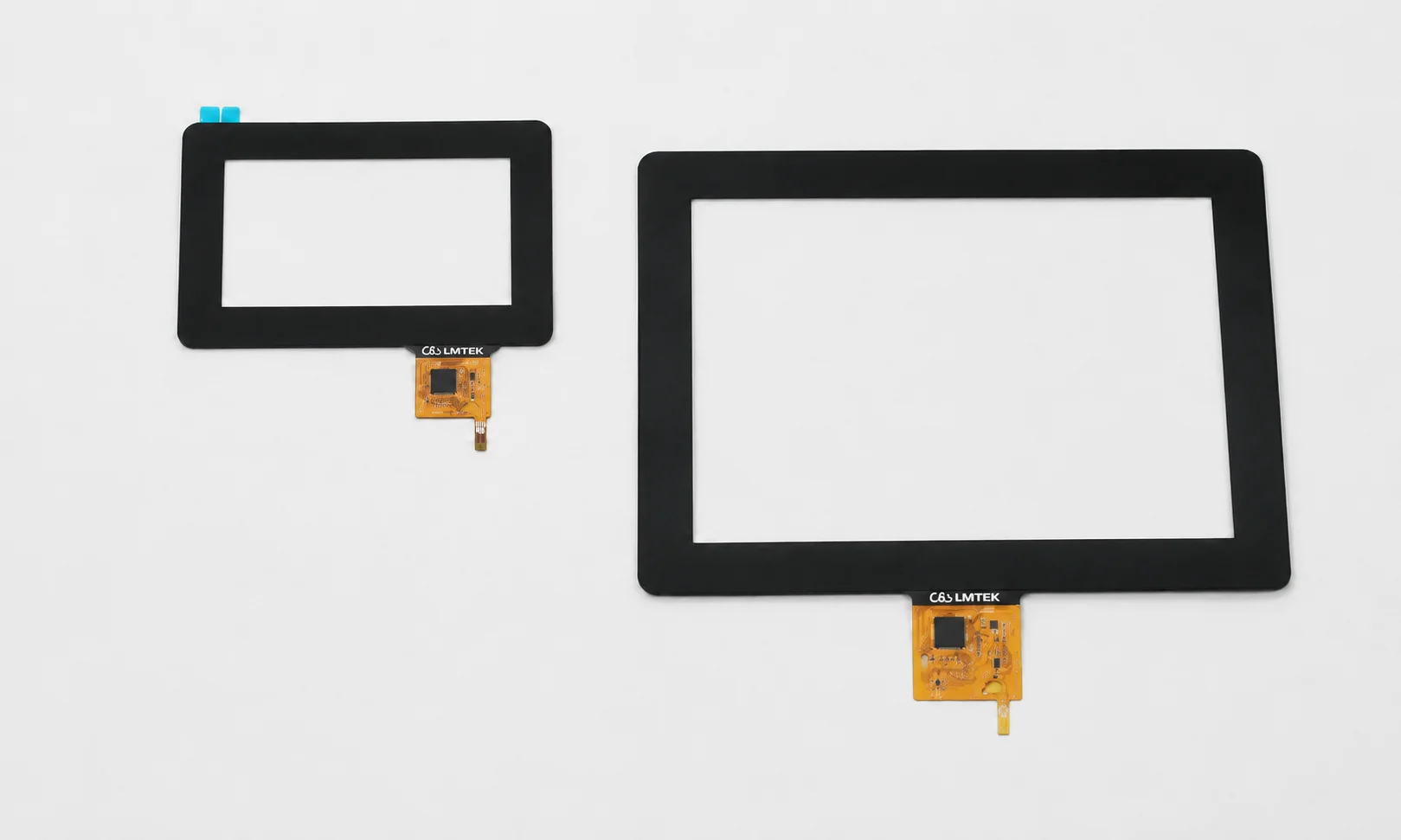

Touch Screens
Review resistive and capacitive touch screen options with cover lens, surface treatment, bonding and interface support.
View Touch Screens

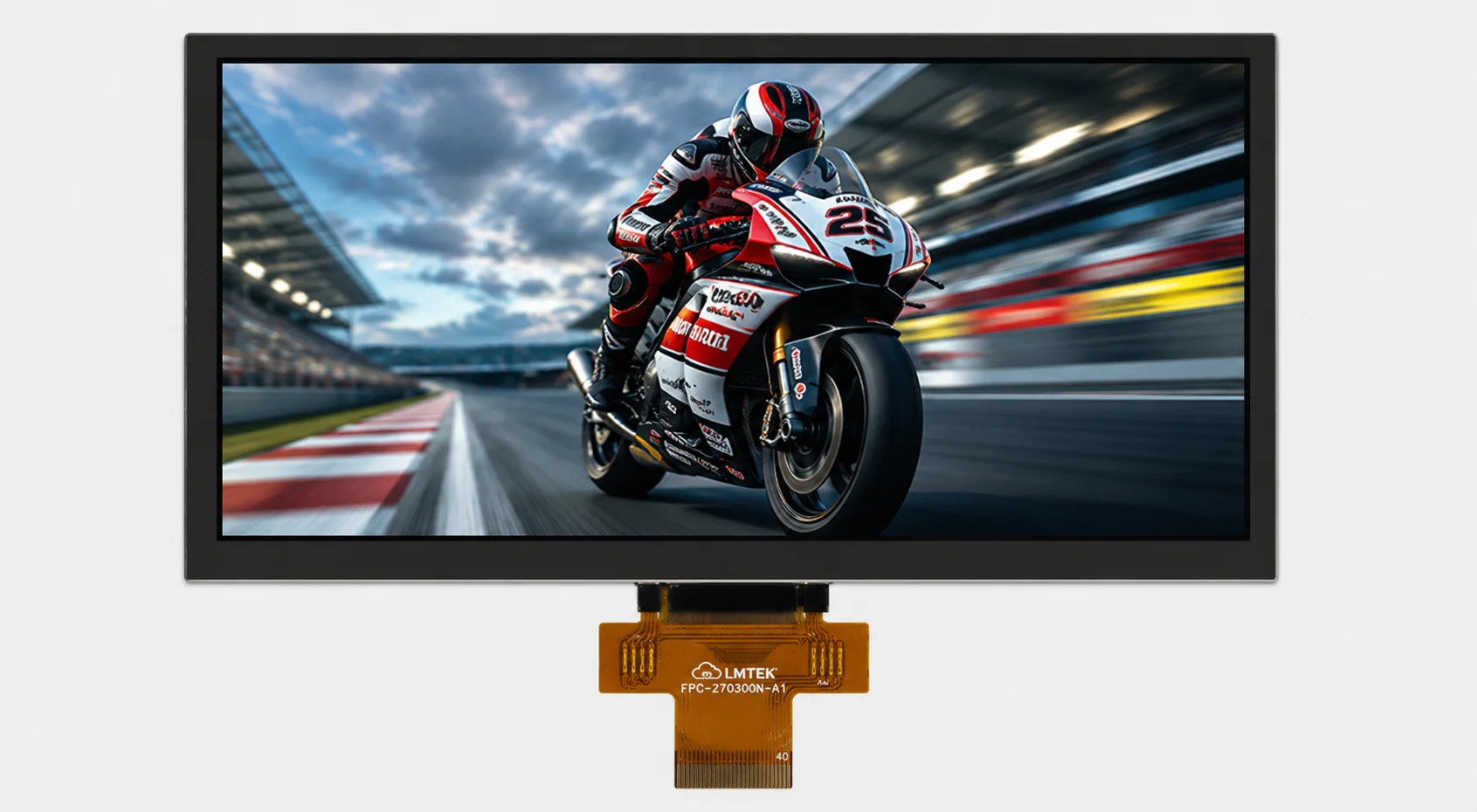

MIPI TFT Displays
Explore MIPI display options for compact embedded systems and high-resolution display interfaces.
View MIPI Displays

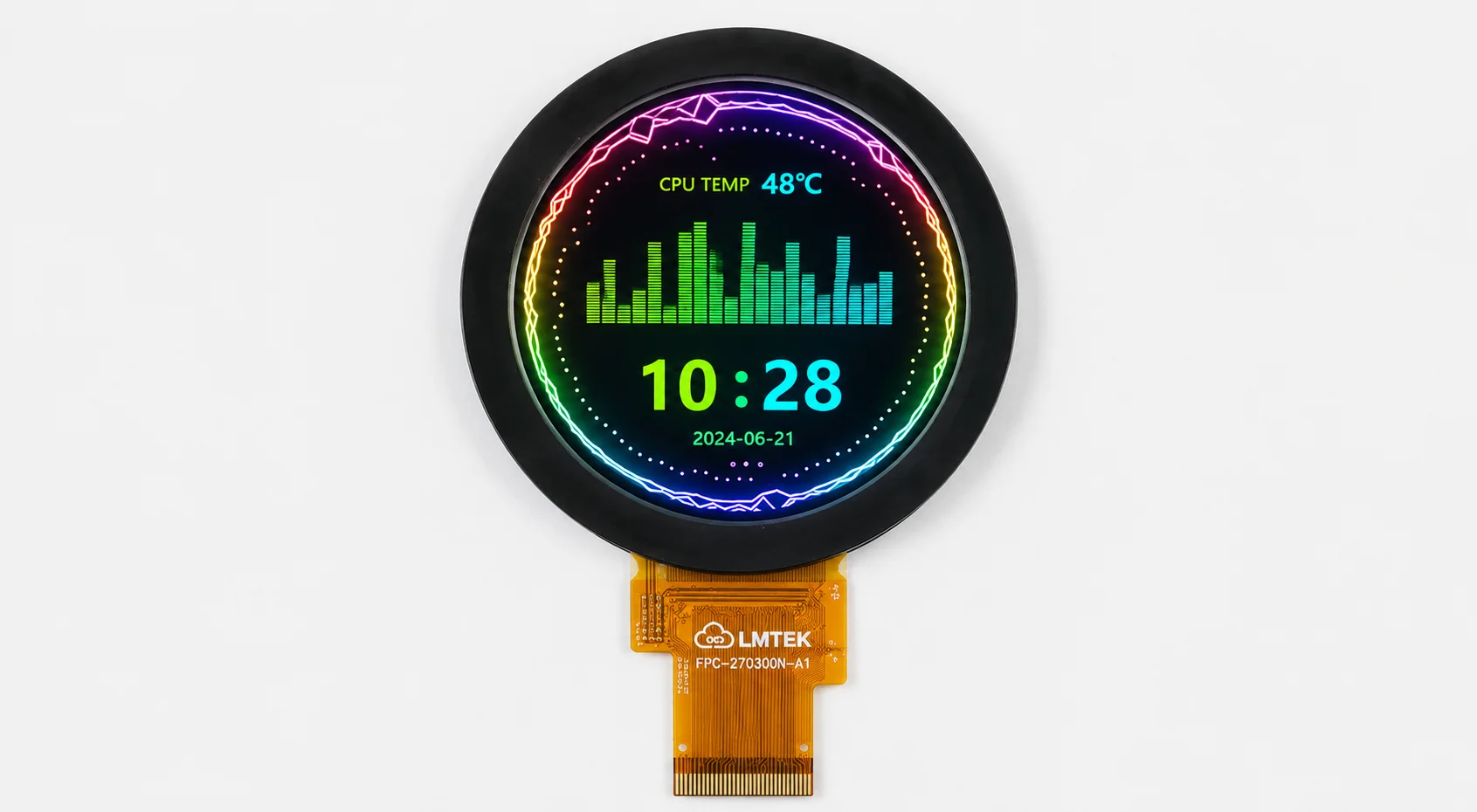

Round Display
Explore round display modules for circular interfaces, smart knobs, meters and compact control dials.
View Round Display Options

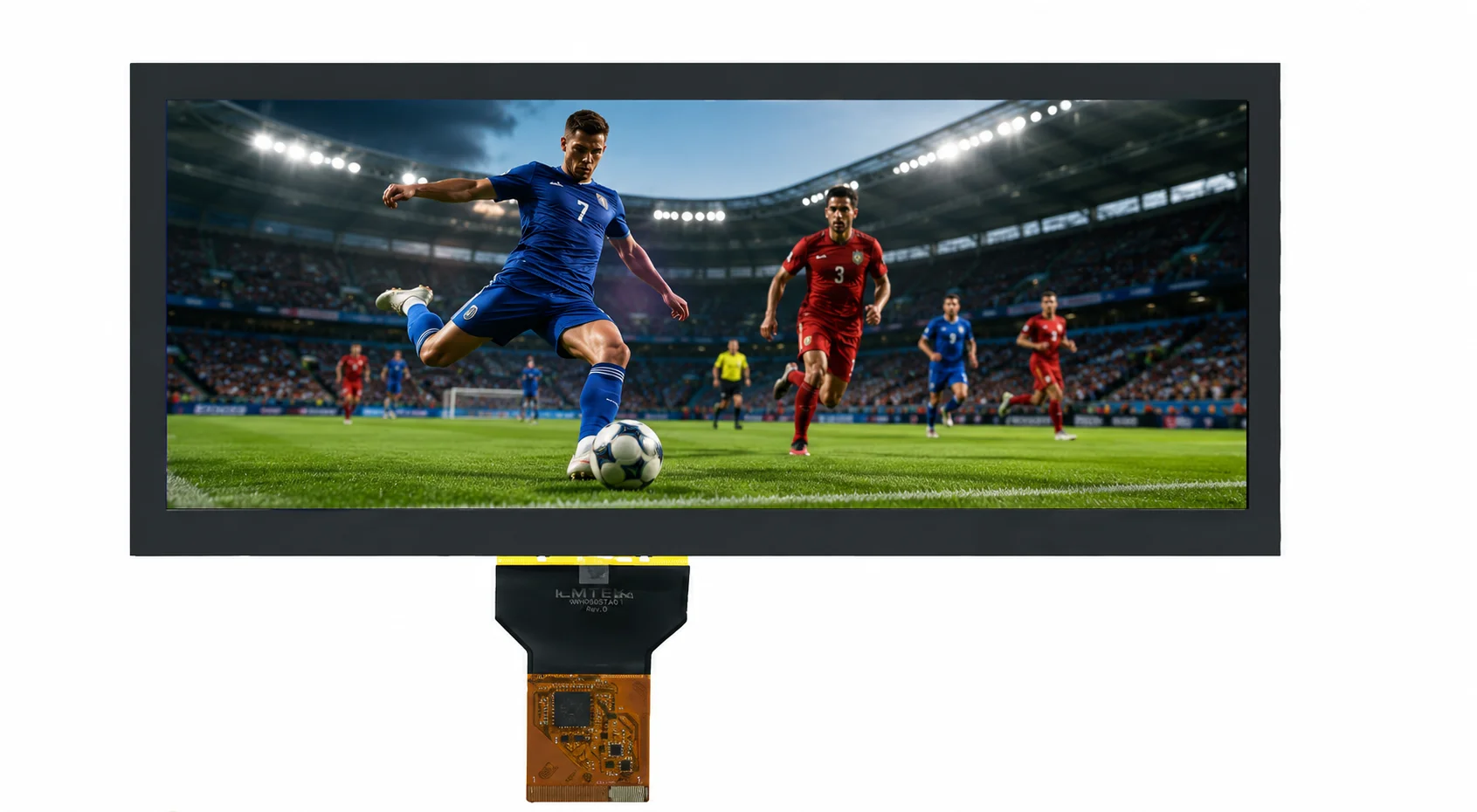

Bar LCD Display
Explore bar LCD display modules for long-format layouts, status bars, narrow panels and equipment front strips.
View Bar LCD Display OptionsSquare Display FAQ
Common questions about square display modules, specifications and customization options.
What is a square display module?
What is the difference between a square display and a standard rectangular TFT display?
Where are square displays commonly used?
Can LMTEK provide a square display with touch?
Which interfaces are available for square TFT LCD modules?
Can LMTEK support a custom square display?
Share Your Square Display Requirements
Send us your target specifications and application details. LMTEK will review your display size, active area, resolution, interface, touch requirement, mechanical constraints and project timeline to help recommend a suitable square display module or customization path.
Your specifications do not need to be final. Share your current design target, and our team will help review available product series, technical fit and next steps for sample validation.
Recommended Information to Submit
- Target display size
- Active area and visible area
- Resolution requirement
- Display interface
- Brightness requirement
- Touch or no-touch requirement
- Cover lens and front-panel design
- FPC direction and connector position
- Mounting space
- Operating environment
- Application and expected annual volume
- Existing datasheet or mechanical drawing, if available
- Sample and production timeline
Bring your size, resolution, interface, environment and timeline. LMTEK will help review suitable square display options or a project-based customization path.
