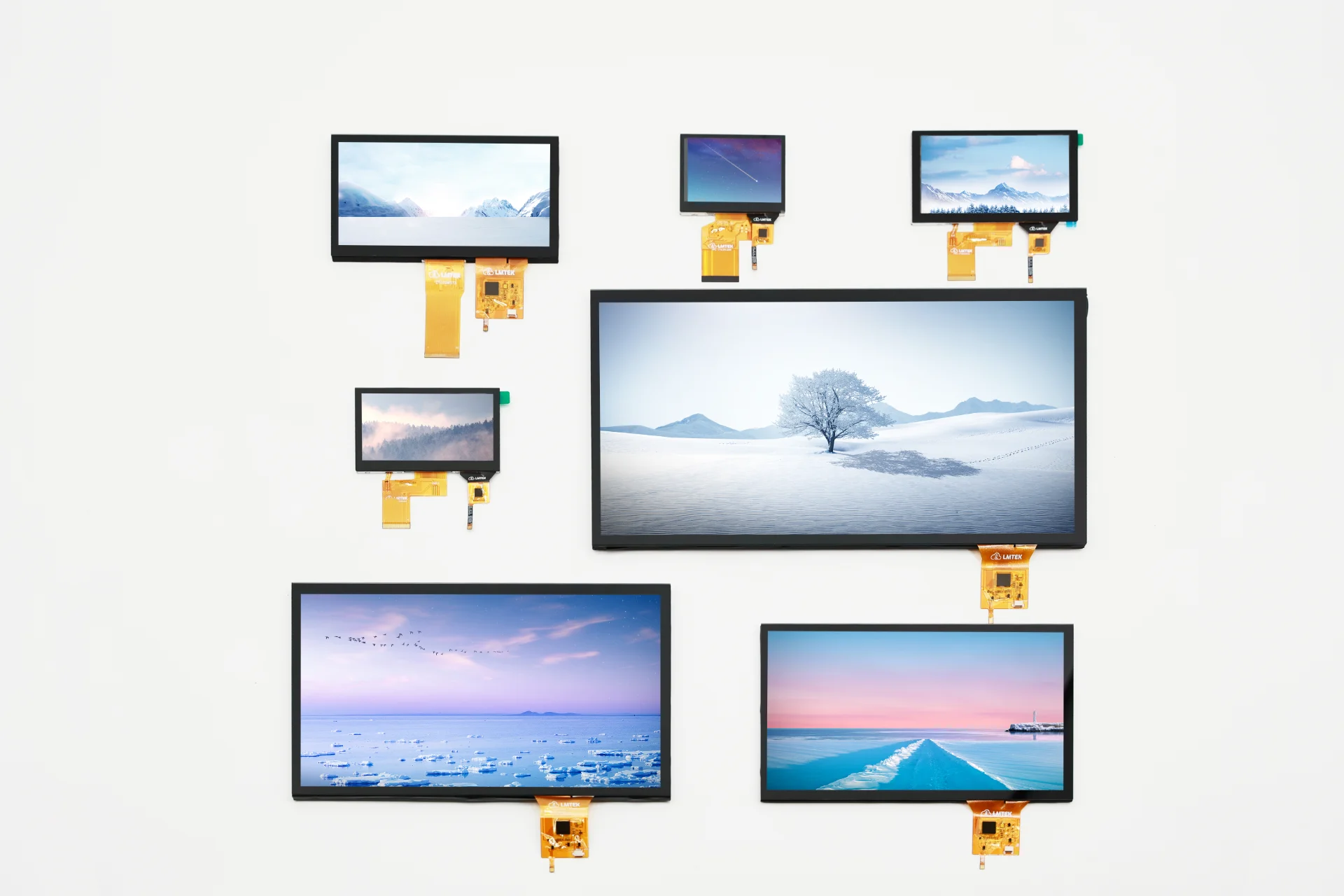

Landscape TFT Display Modules for Industrial HMI and Embedded Interfaces
Horizontal TFT LCD modules for industrial HMIs, control panels, embedded systems and landscape touch display projects.
A landscape TFT display is selected when your UI needs horizontal space for dashboards, charts, video windows or multi-pane information.
LMTEK provides landscape TFT display and horizontal TFT LCD module options for industrial HMIs, equipment panels, smart control terminals, energy systems and embedded display projects. Your project can be reviewed by size, resolution, native or rotated orientation, aspect ratio, interface, touch option, brightness, viewing direction, FPC direction and mechanical fit.
Landscape TFT LCD Modules for Horizontal Display Interfaces
LMTEK supplies landscape TFT display modules for product teams building horizontal HMI layouts, equipment control panels, embedded terminals and smart control systems.
Landscape displays are used when the interface needs dashboard views, trend charts, status overviews, camera preview windows, horizontal menus or multi-zone data pages.
Typical check points include size, resolution, active area, module dimension, native landscape orientation, rotation support, interface, touch mapping, brightness, viewing direction, FPC exit direction and enclosure stack-up.
LMTEK can help match display, touch, FPC, interface, backlight and mechanical requirements before sample validation.
What Is a Landscape TFT Display?
A landscape TFT display is a TFT LCD module used in horizontal orientation. The long side is horizontal and the short side is vertical.
A landscape TFT LCD may use native landscape resolution, or a selected TFT display may be rotated by the host system. Common landscape-oriented examples may include 800×480, 1024×600, 1280×800 or 1920×1080, depending on confirmed model availability.
For production projects, this should not be assumed without validation. Your team should verify pixel direction, viewing direction, touch coordinate mapping, FPC exit direction, connector location, interface timing and mounting structure.
Native Landscape Display vs Rotated Portrait Display
Native Landscape Display
A native landscape display is usually easier to align with a horizontal UI and wide front panel.
Rotated Portrait Display
A rotated portrait display may work in software tests, but the controller, host platform, framebuffer rotation, touch mapping, FPC location and viewing direction must be checked before sample selection.
Confirm by datasheet:
When to Choose a Landscape TFT Display
Choose a landscape TFT display when the product layout is horizontal and the UI is designed around wide information display.
Landscape Display Fit at a Glance
| Choose Landscape TFT Display When | Consider Other Display Formats When |
|---|---|
|
UI uses dashboard, charts, video or multi-pane layout
|
UI uses vertical menus or single-column workflows
|
|
Product has a wide equipment panel or horizontal front area
|
Enclosure requires portrait, square, round or bar display layout
|
|
Touch buttons are arranged horizontally
|
Touch interaction is designed vertically
|
|
Application needs status overview or data visualization
|
Product only needs small values or simple icons
|
|
Product is an industrial HMI, control terminal or equipment display
|
Product needs circular, narrow-bar or compact vertical layout
|
Typical Use Cases
Landscape TFT displays are used when horizontal space improves the UI layout. They are often selected for dashboards, wide control screens, multi-zone HMI pages, camera preview windows or status overview panels.
Important Note
Software rotation alone does not solve touch mapping, FPC position, viewing direction, connector placement or enclosure tolerance.
LMTEK Landscape TFT Display Product Series
LMTEK offers landscape TFT display product series for horizontal UI projects that require TFT LCD matching, touch integration, interface review, FPC alignment, brightness selection and mechanical validation.
LMTEK's landscape TFT display options can be reviewed across confirmed standard sizes such as 3.5", 4.3", 5.0", 7.0", 10.1", 12.1" and 15.6", depending on current model availability and datasheet confirmation.
Wide-Range Landscape TFT Displays
Discover LMTEK's broad lineup of Landscape TFT Displays, offering reliable performance, diverse sizing options, and proven compatibility.
| LMTEK P/N | Size | Resolution | Viewing(T/B/L/R) | Interface-PIN | AA Size(W*H) | Outline Size(W*H*T) | Brightness | Contrast | OP temp |
|---|---|---|---|---|---|---|---|---|---|
| LM035GMN9001 | 3.5" | 320*240 | IPS | RGB(54PIN) | 70.08*52.56 | 76.9*63.9*3.26 | 350 | 800 | -20~70 |
| LM035GMN9101 | 3.5" | 320*240 | 12:00(70/60/70/70) | RGB/SPI/MCU(60PIN) | 70.08*52.56 | 76.84*63.84*3.27 | 300 | 500 | -20~70 |
| LM043QHC9002 | 4.3" | 480*272 | 12:00(70/50/70/70) | RGB(40PIN) | 95.04*53.86 | 105.5*67.2*4.53 | 400 | 500 | -20~70 |
| LM043QMN9001 | 4.3" | 480*272 | IPS | RGB(40PIN) | 95.04*53.86 | 105.5*67.2*2.95 | 500 | 800 | -20~70 |
| LM043WMN9001 | 4.3" | 800*480 | IPS | RGB(40PIN) | 95.04*53.86 | 105.5*67.2*3.0 | 500 | 800 | -20~70 |
| LM050WMN9001 | 5.0" | 800*480 | IPS | RGB(40PIN) | 108.0*64.8 | 120.7*75.8*2.95 | 500 | 1000 | -20~70 |
| LM050QNN1001 | 5.0" | 480*272 | 12:00(70/50/70/70) | RGB(40PIN) | 110.88*62.83 | 120.7*75.8*3.0 | 350 | 500 | -20~70 |
| LM070WMN9101 | 7.0" | 800*480 | 12:00(70/50/70/70) | RGB(50PIN) | 154.08*85.92 | 164.9*100*5.7 | 500 | 500 | -20~70 |
| LM070SNN9001 | 7.0" | 1024*600 | IPS | LVDS(40p) | 154.21*85.92 | 164.9*100*2.8 | 350 | 800 | -20~70 |
| LM070WMN8001 | 7.0" | 800*480 | IPS | LVDS | 165.4*104.59*5.8 | 152.4*91.44 | 500 | 500 | -30~85 |
| LM080WMN1001 | 8.0" | 800*480 | 12:00(70/50/70/70) | RGB(50PIN) | 176.64*99.36 | 192.8*116.9*6.4 | 500 | 500 | -20~70 |
| LM080XNN9001 | 8.0" | 1024*768 | IPS | LVDS(40p) | 162.05*121.54 | 174*136*2.45 | 280 | 700 | -20~70 |
| LM084KNN1001 | 8.4" | 800*600 | 12:00(70/50/70/70) | LVDS(20PIN) | 170.4*127.8 | 203*142.5*5.7 | 350 | 500 | -20~70 |
| LM090WMN1001 | 9.0" | 800*480 | 12:00(70/50/70/70) | RGB(50PIN) | 198*111.7 | 210.7*126.5*5.05 | 500 | 500 | -20~70 |
| LM090SMN9001 | 9.0" | 1024*600 | IPS | LVDS | 196.6*114.15 | 211.1*126.5*5.05 | 500 | 500 | -20~70 |
| LM097XNN1001 | 9.7" | 1024*768 | 03:00(70/70/60/70) | LVDS(30PIN) | 196.61*147.46 | 210.2*166.3*3.55 | 350 | 500 | -20~70 |
| LM101SNN9001 | 10.1" | 1024*600 | IPS | LVDS(40p) | 222.72*125.28 | 235*143*2.9 | 350 | 800 | -20~70 |
| LM101HHN9001 | 10.1" | 1280*720 | IPS | LVDS | 125.82*223.68 | 238.6*148.0*6.5 | 800 | 800 | -30~80 |
| LM101INN9001 | 10.1" | 1280*800 | IPS | LVDS(40p) | 216.96*135.6 | 229.46*149.1*2.6 | 350 | 800 | -20~70 |
| LM102WNN1001 | 10.2" | 800*480 | 12:00(70/50/70/70) | RGB(60PIN) | 222*132.48 | 235*145.8*5.9 | 350 | 500 | -30~85 |
| LM104XHN9001 | 10.4" | 1024*768 | IPS | LVDS | 210.43*157.82 | 227*175.8*6.5 | 1000 | 800 | -30~80 |
| LM121IHN9001 | 12.1" | 1280*800 | IPS | LVDS | 261.12*163.2 | 278*184*13.6 | 1000 | 800 | -30~80 |
| LM133TSN9001 | 13.3" | 1920*1080 | IPS | EDP | 293.76*165.24 | 307.6*183.05*5.5 | 1200 | 800 | -20~70 |
| LM156TSN9001 | 15.6" | 1920*1080 | IPS | Dual LVDS | 344.16*193.59 | 360.0*212.35*5.7 | 1000 | 800 | -20~70 |
Key Advantages of Landscape TFT Displays

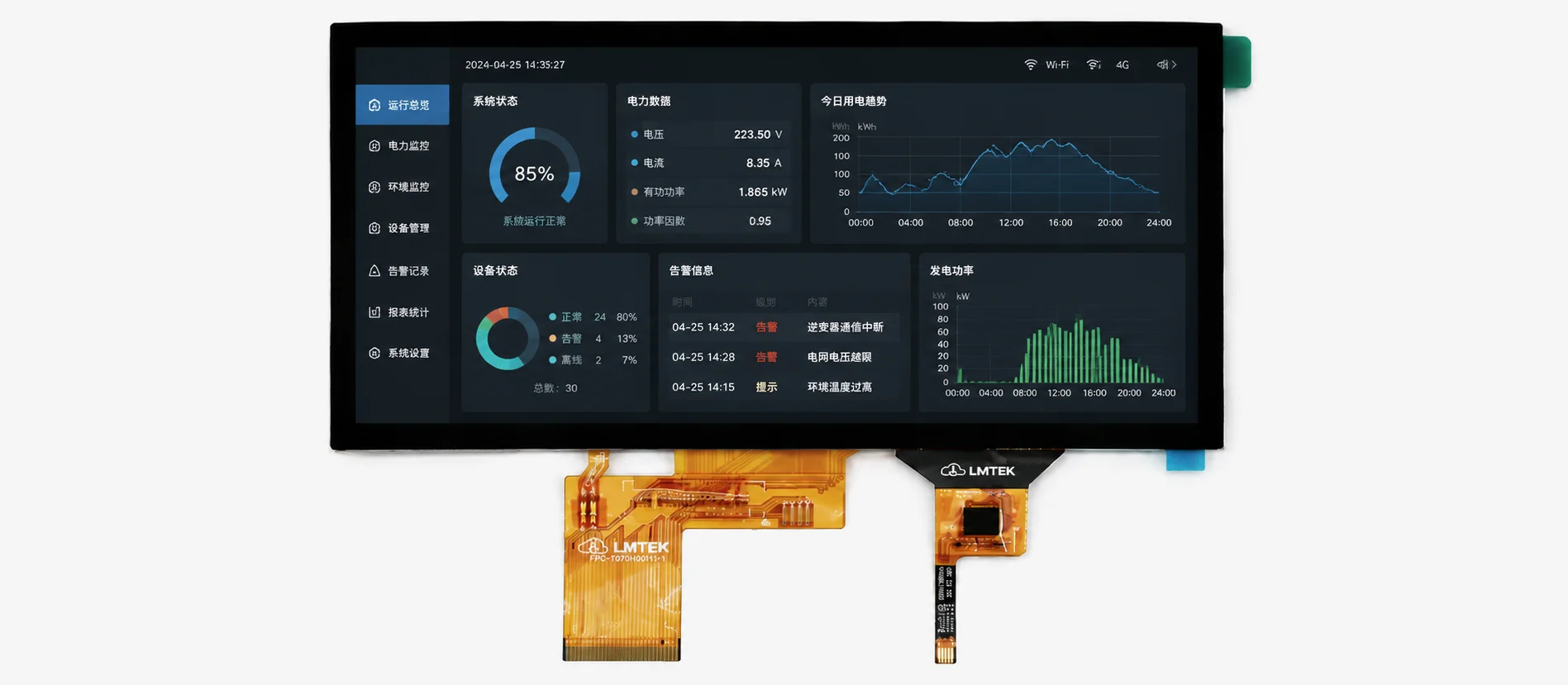

Horizontal UI Layout
Landscape TFT displays support dashboards, charts, video windows, status overviews and multi-pane UI pages.
- UI wireframe
- Pixel direction
- Resolution
- Aspect ratio

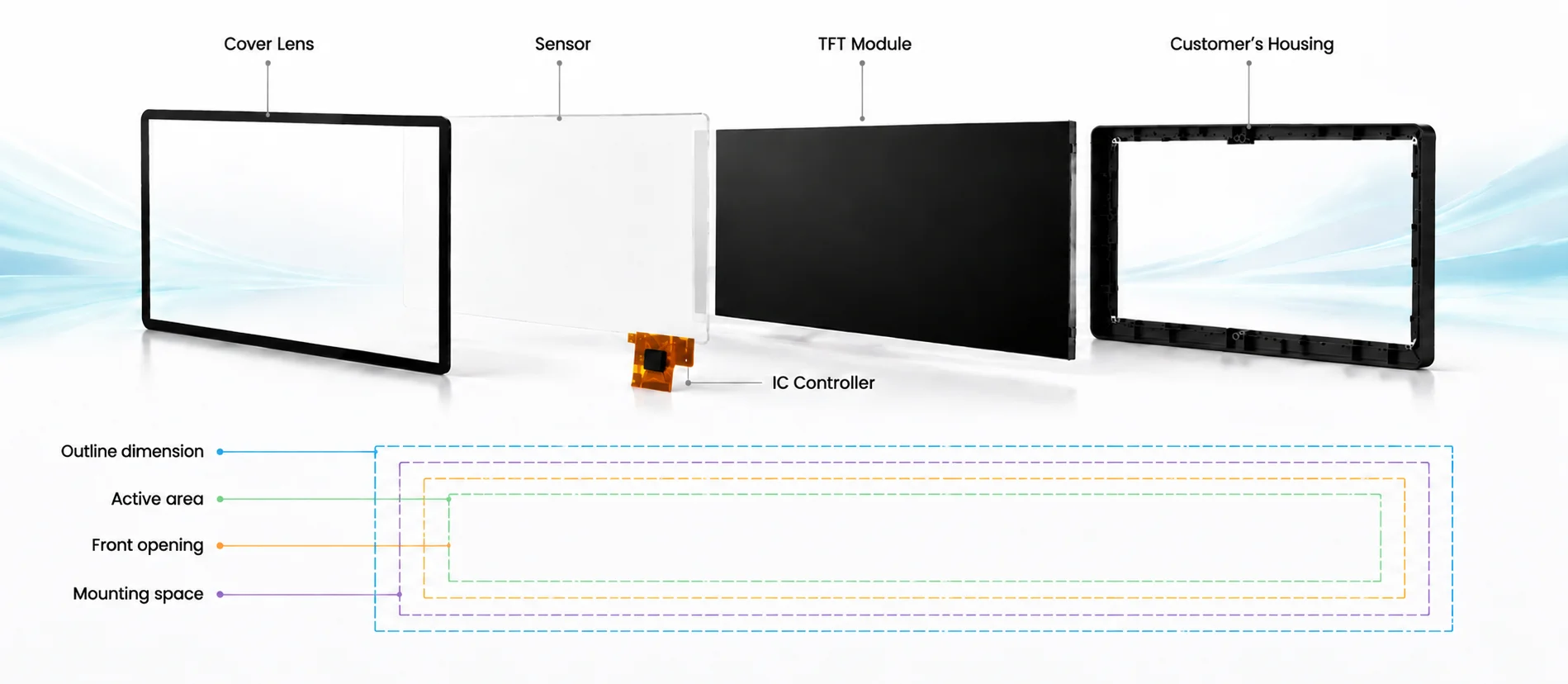

Wide Front-Panel Fit
A horizontal TFT LCD can fit operator panels, equipment dashboards, industrial terminals and control stations with wide front-panel space.
- Outline dimension
- Active area
- Front opening
- Mounting space

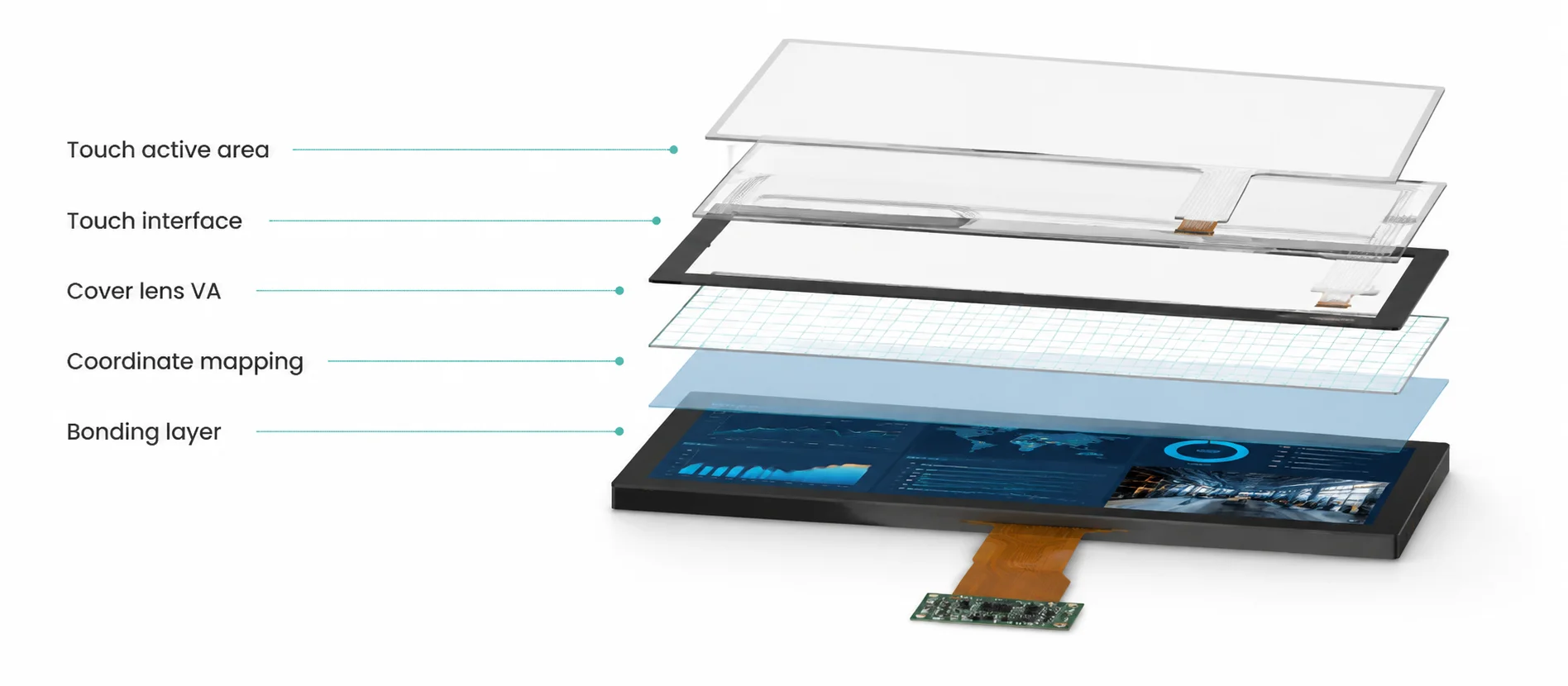

Touch and Display Alignment
Touch alignment must match landscape orientation. The display active area, touch area and cover lens opening should be checked together.
- Touch active area
- Touch interface
- Cover lens VA
- Coordinate mapping
- Bonding layer

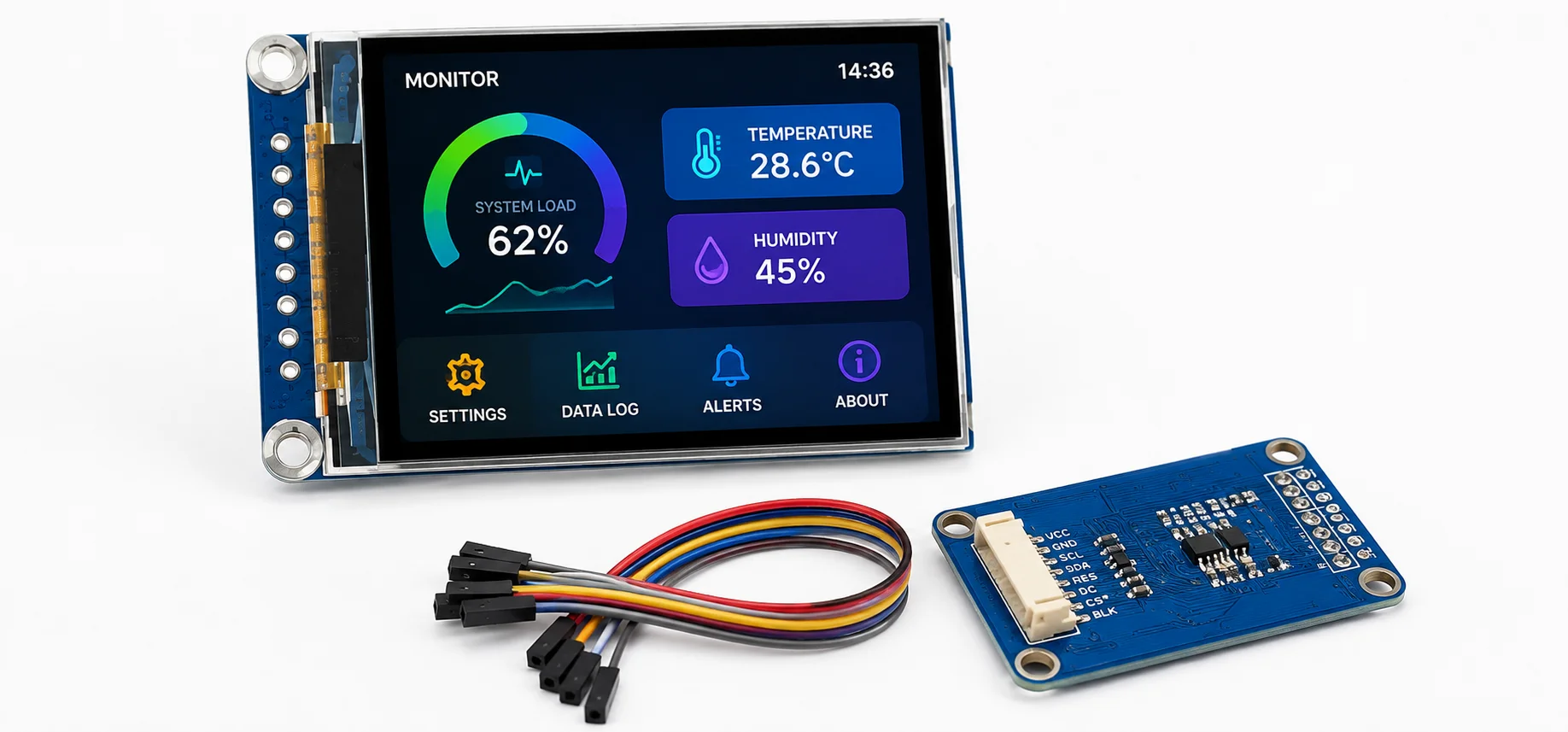

Interface, FPC and Mechanical Review
Landscape installation may change connector position and cable route. FPC direction and pin definition should be checked before PCB design.
- Interface
- HDMI controller board option
- Connector position
- FPC length
- Cable route
- PCB layout
Typical Applications of Landscape TFT Displays

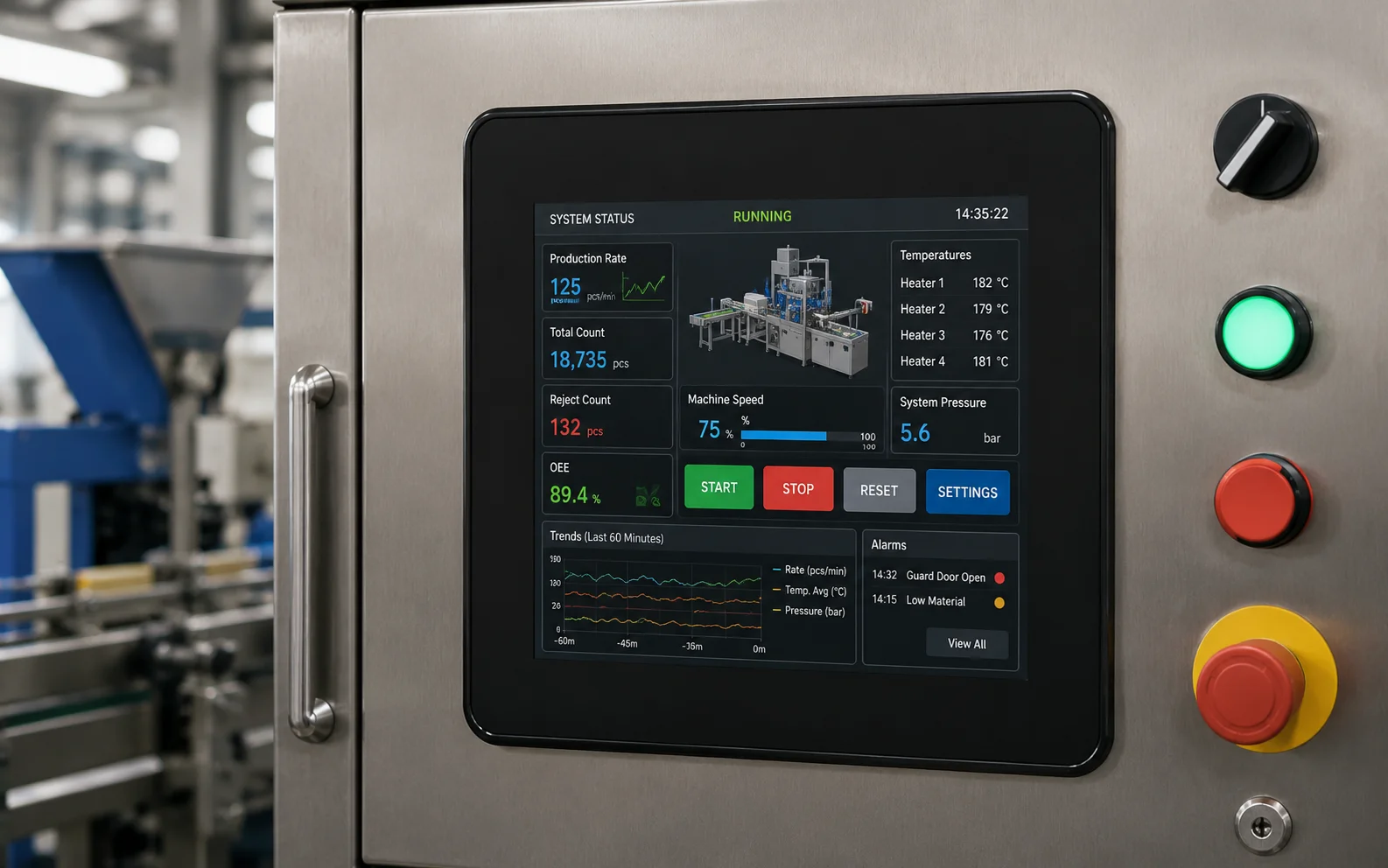

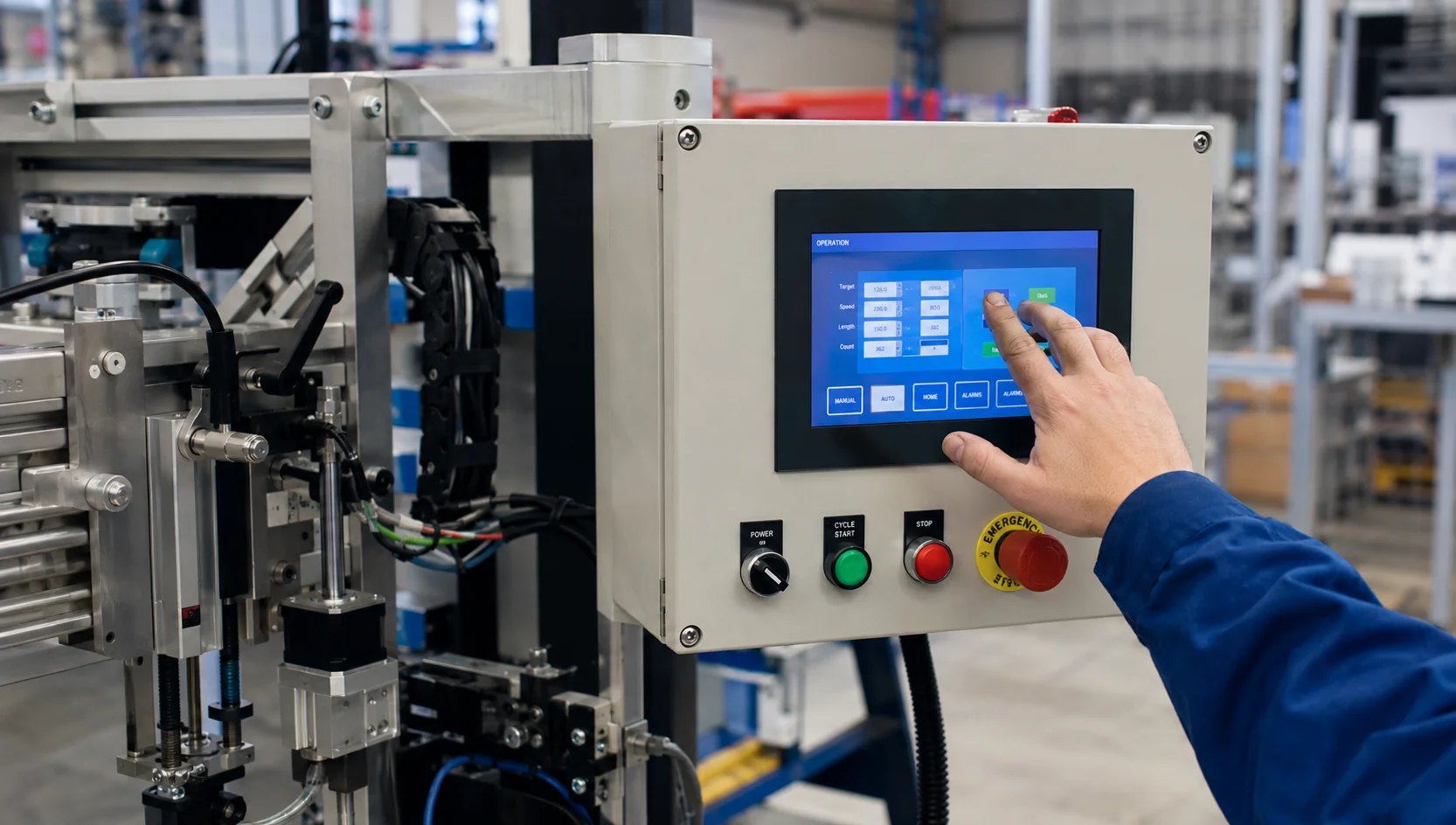

Landscape TFT Display for Industrial HMI Panels
Used for operator terminals, machine control panels and factory equipment interfaces.
Horizontal TFT Display for Equipment Dashboards
Used for status overview, trend display, parameter monitoring and multi-zone data pages.

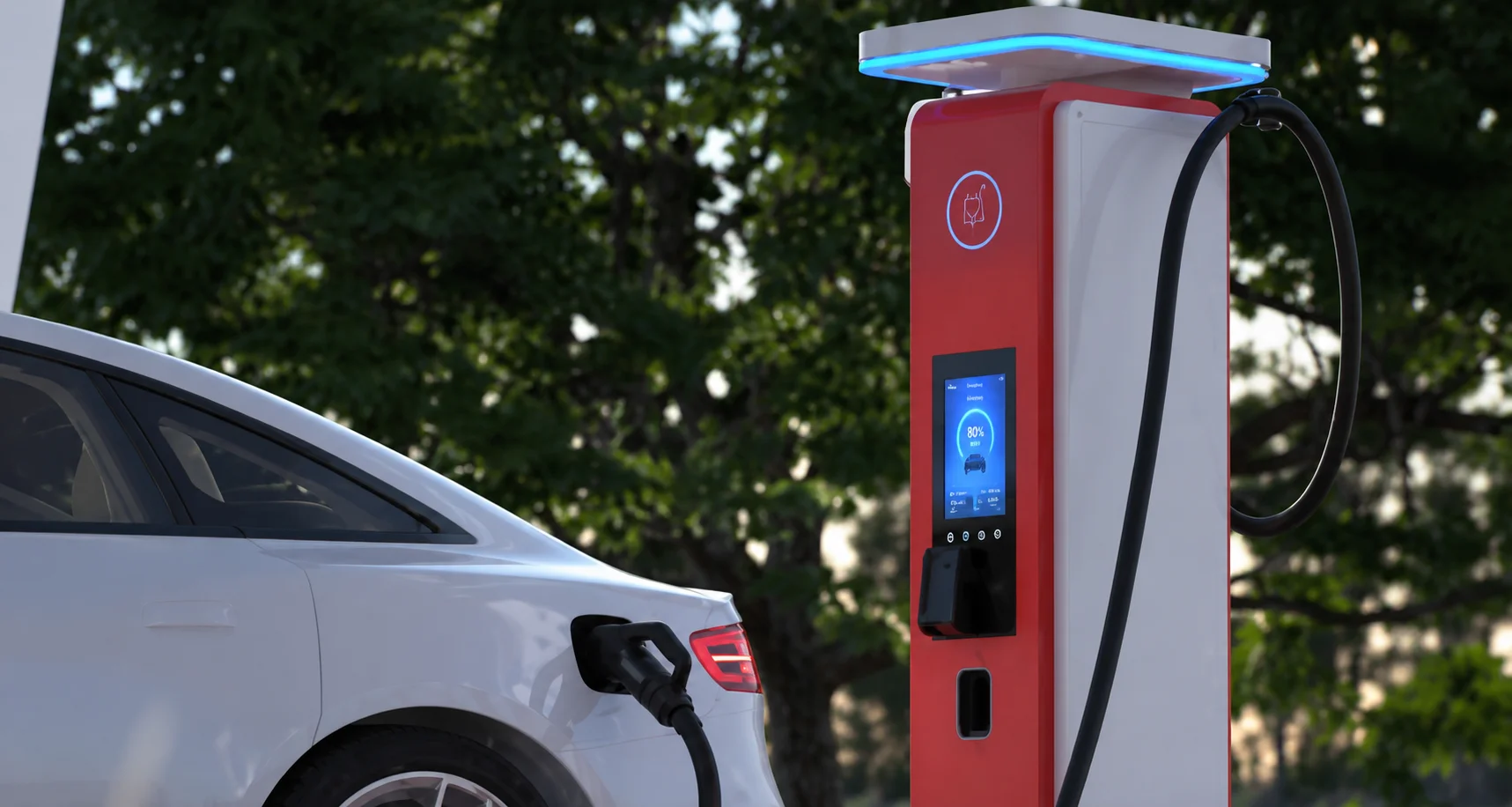

Landscape Touch Display for Energy and EV Charging Interfaces
Used for EV charging stations, energy management terminals and power monitoring panels.

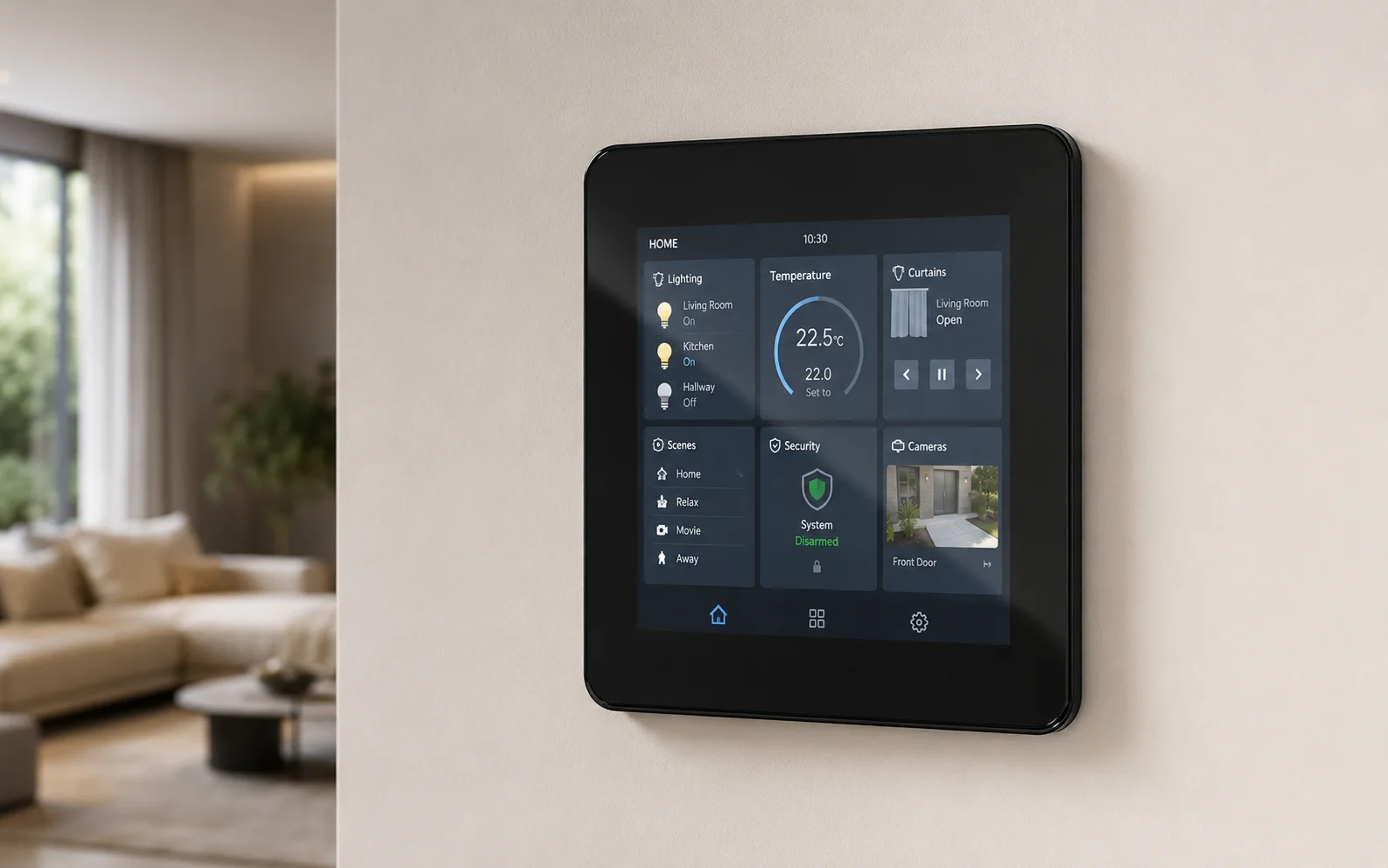

Landscape TFT LCD for Smart Building Controls
Used for HVAC panels, BMS terminals, lighting control dashboards and wall-mounted control panels.
Landscape Display Module for Embedded Systems
Used for embedded Linux / Android terminals, industrial SBC platforms and commercial electronics.

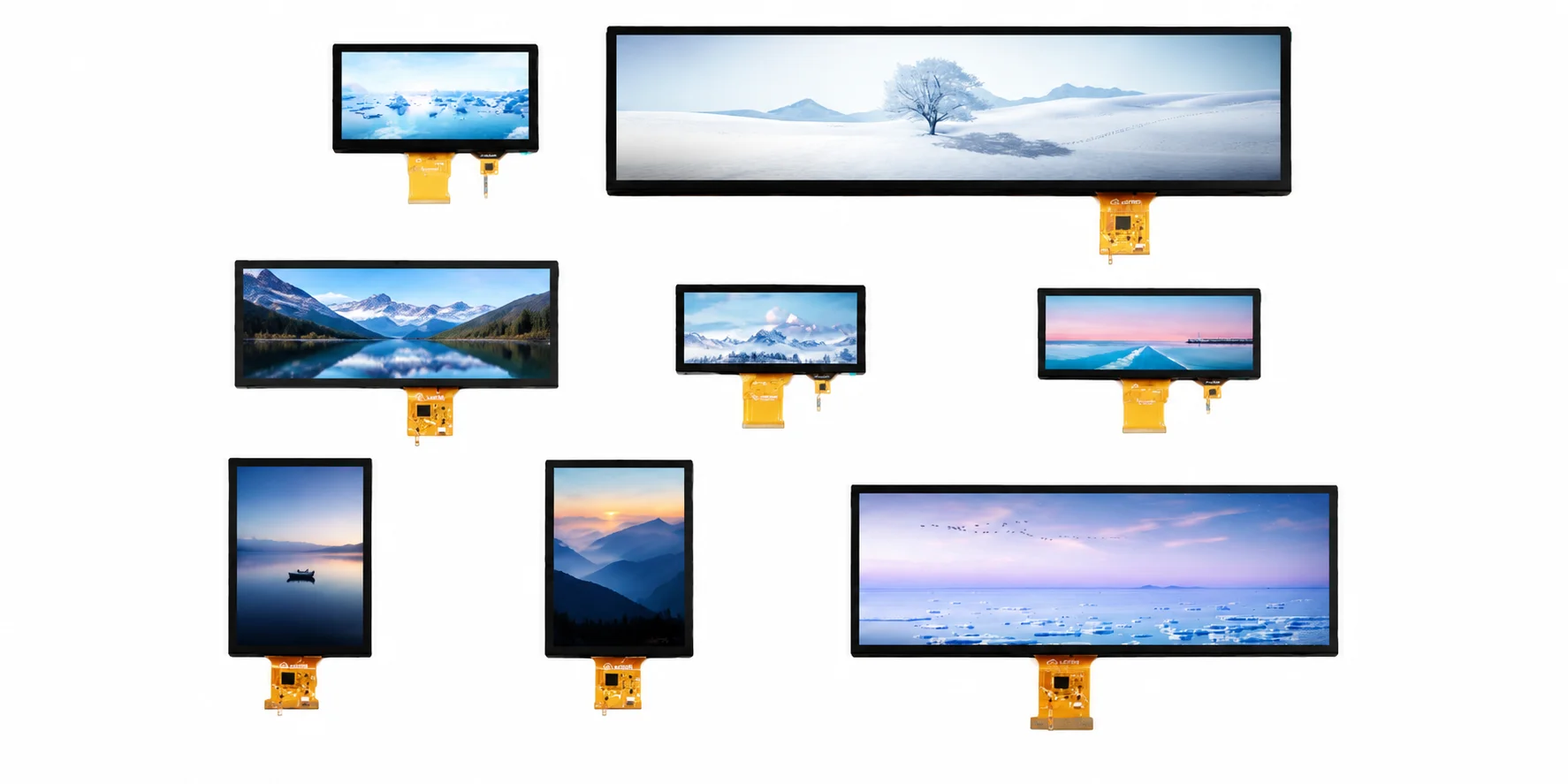

How to Select a Landscape TFT Display
A landscape TFT display should not be selected by diagonal size alone. The orientation affects UI layout, touch mapping, FPC route and enclosure fit.
Display Size and Resolution
Confirm size, resolution, active area, aspect ratio and UI content.
- Native landscape resolution
- Rotated display support
- Confirmed datasheet values
Native Landscape Orientation and Software Rotation
Confirm whether you need a native landscape TFT display or a portrait module rotated by software.
- Host platform
- Driver support
- Framebuffer rotation
- Touch coordinate mapping
Aspect Ratio and UI Layout
Confirm whether the display ratio supports your content structure. A landscape display may be suitable for dashboard pages, video preview, dual-column menus, trend charts or multi-zone control pages.
- Aspect ratio
- UI wireframe
- Font size
- Button layout
Viewing Direction and Installation Angle
Confirm viewing direction after horizontal installation. TN panels can have direction-dependent viewing behavior; IPS or VA may be considered where viewing angle matters.
- 6 o'clock / 12 o'clock direction
- IPS / TN / VA
- User eye position
Touch Option and Touch Mapping
Confirm whether the project needs RTP or PCAP touch. Touch coordinates must match rotated or native landscape UI.
- Touch type
- Touch interface
- Cover lens
- Bonding
- Calibration
Interface and Host Platform
Confirm interface based on resolution, processor support, FPC length, EMI and software bring-up. HDMI should be reviewed as a controller-board-based option, not as a native bare-panel interface unless the selected display assembly includes the required controller board.
FPC Direction, Connector and Mechanical Fit
Confirm FPC exit direction, tail length, connector position, mounting space and enclosure opening.
- FPC drawing
- Connector pitch
- Mainboard position
- Stack-up tolerance
Brightness, Backlight and Operating Environment
Confirm brightness, dimming, backlight current, thermal design and indoor / semi-outdoor readability.
- Brightness value
- PWM / analog dimming
- Temperature
- Power budget
Sample Validation and Production Planning
Confirm datasheet, drawing, sample plan, UI test, touch test and production schedule.
- Sample quantity
- Validation criteria
- PCN need
- Alternative model review
Need a Custom Landscape TFT Display?
Project-Based Support for Touch, FPC, Interface and Mechanical Fit
LMTEK can review selected customization requirements for landscape display projects. Typical items include touch matching, cover lens, bonding, FPC direction, pin definition, interface review, HDMI controller board option, brightness tuning, backlight optimization, front-panel structure and mechanical fit.
For detailed customization options, please visit our Custom TFT Display or Touch Screens page.
