SPI Display Modules for Compact Embedded Interfaces
SPI TFT LCD modules for compact devices, embedded controllers, industrial panels and low-pin-count graphical UI projects.
SPI Display help embedded product teams add color graphical interfaces when PCB space, host I/O pins and display connection complexity need to be carefully controlled.
LMTEK provides SPI Display module options for compact embedded devices, industrial controllers, portable instruments, appliance interfaces and custom display projects. Your SPI Display project can be selected by size, resolution, SPI signal definition, controller IC, initialization requirement, touch option, brightness, FPC direction and mechanical fit.
Project Review Focus
SPI TFT LCD Modules for Low-Pin-Count Embedded Systems
LMTEK supplies SPI Display modules for product teams developing compact devices, embedded controllers, industrial electronics and portable equipment. An SPI TFT LCD is typically selected when your product needs a small display, limited signal lines and a practical graphical UI without a wide parallel display bus.
Typical Selection Parameters

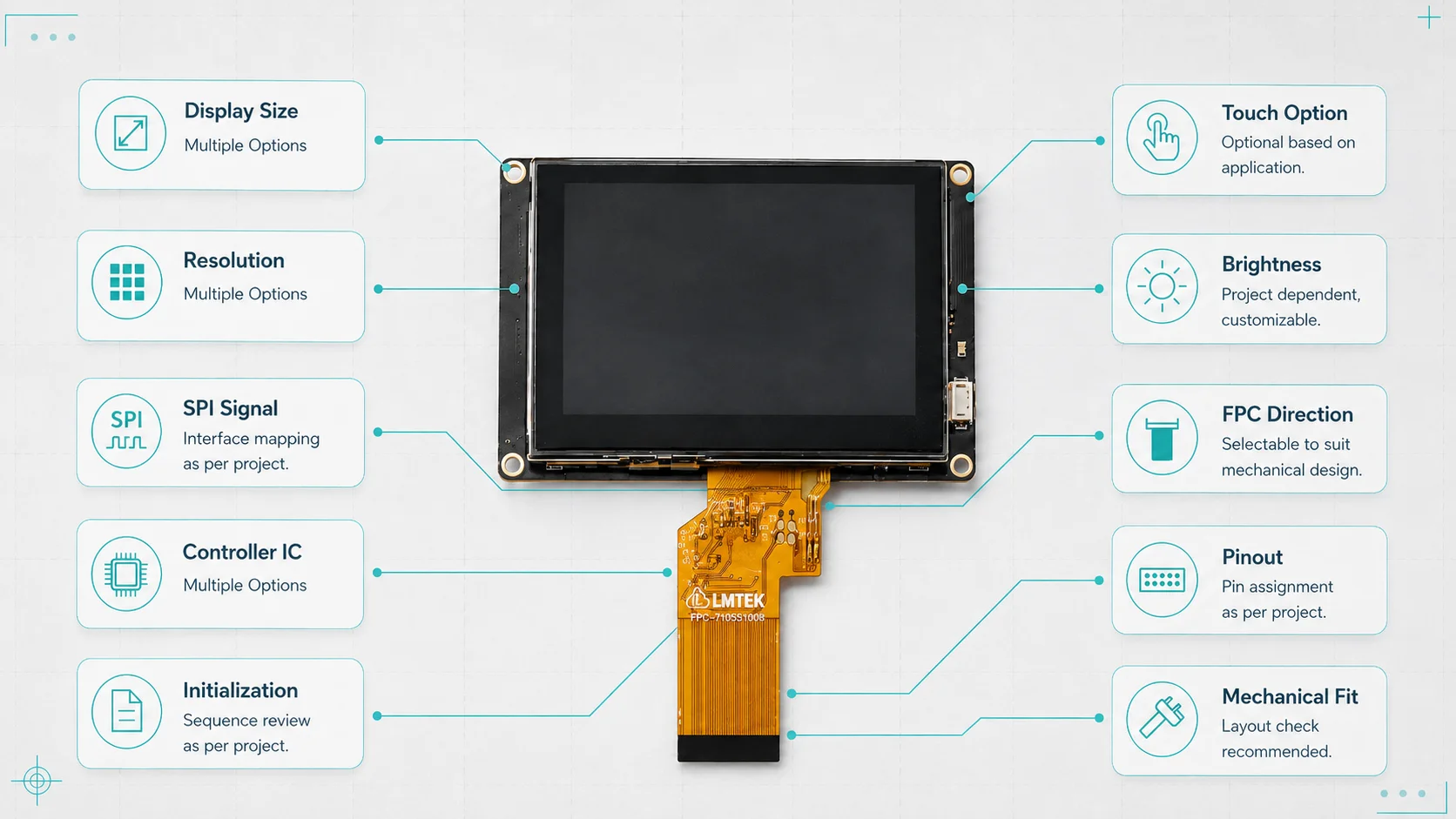

Typical selection points include display size, resolution, SPI signal definition, controller IC, initialization sequence, touch support, brightness, FPC direction, pinout and mechanical structure.
OEM / ODM Project Support
If you are looking for an SPI Display manufacturer for an OEM/ODM project, LMTEK can help match display, touch, FPC, backlight and mechanical options to your controller platform, enclosure design and sample validation timeline.
Reduce Development Risk
This helps your team reduce pinout mismatch, FPC redesign, display bring-up uncertainty and validation delays.
Size & Resolution
From 1.3" to 4.0" SPI modules
Controller IC
ST7789, ILI9341, GC9A01 & more
Touch Options
Resistive or capacitive touch
FPC & Brightness
Custom FPC direction & backlight
What Is an SPI Display Module?

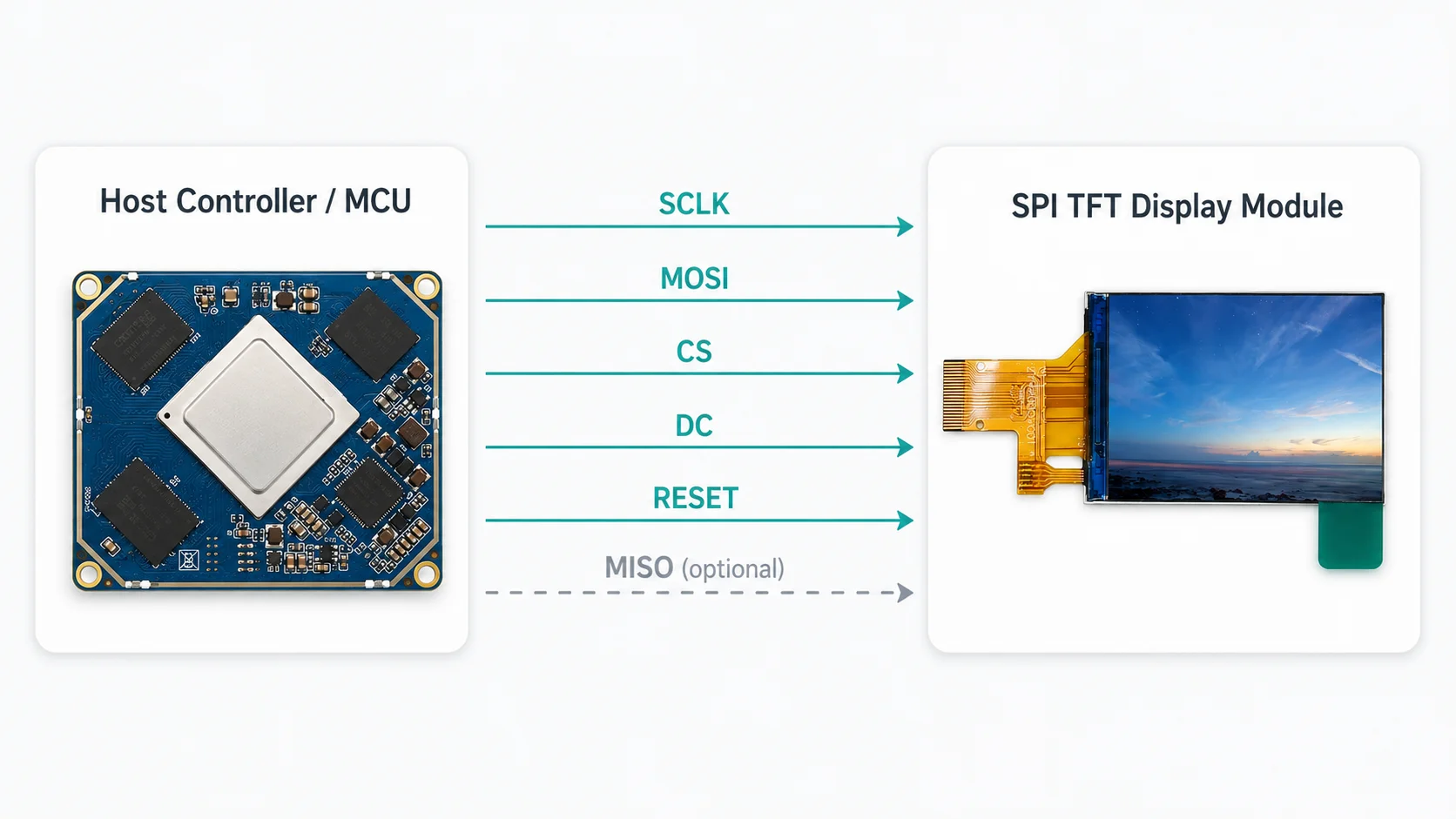

Typical SPI Signal Lines
* Final signal definition depends on the selected display controller and module design. Always verify with the product datasheet.
Interface Comparison
| Interface | Signal Lines | Bandwidth | Best For |
|---|---|---|---|
| SPI This | Few (4-6) | Low-Medium | Icons, menus, status UI |
| RGB | Many (18-24) | High | Full-color video, animation |
| MIPI DSI | Medium (4-8) | Very High | Smartphone-grade displays |
| LVDS | Medium | High | Industrial large panels |
When to Choose an SPI Display
Choose an SPI Display when your host controller has limited I/O pins and your product needs a compact display for simple graphical information.
SPI Display are often used when your UI focuses on values, icons, menus, alarms, status feedback or parameter settings instead of continuous high-speed graphics.
Interface Fit at a Glance
| Choose SPI Display When | Consider Other Interfaces When |
|---|---|
|
Your host controller has limited I/O pins
|
Your UI needs high frame rate or video
|
|
Your product uses a small TFT display
|
Your resolution is too high for SPI bandwidth
|
|
Your interface shows icons, values or status screens
|
Your product needs continuous graphical output
|
|
Your PCB or FPC space is limited
|
Your SoC supports MIPI DSI or RGB directly
|
|
Your project needs a simple embedded display interface
|
Your HMI requires larger industrial panels with LVDS or eDP
|
SPI is not automatically the best choice for every display project. For complex GUI, larger HMI panels, video display or Android / Linux graphical systems, RGB, MIPI, LVDS, HDMI or eDP may be more suitable.
LMTEK SPI Display Product Series
LMTEK offers SPI Display product series for embedded products that require low-pin-count display interfaces, compact TFT LCD modules, touch matching, brightness review or project-based FPC and pin definition support.
For faster evaluation, request the available model list, datasheet, SPI signal definition, controller IC information, pinout and mechanical drawing for your selected SPI Display series.
Final specifications should be verified by confirmed LMTEK model number, datasheet and project requirements. SPI mode, controller IC, initialization support, refresh expectations, brightness, operating temperature and touch option are model-dependent.
LMTEK can support model selection, sample validation and production planning based on your application, host controller, enclosure design and project timeline.
Compact

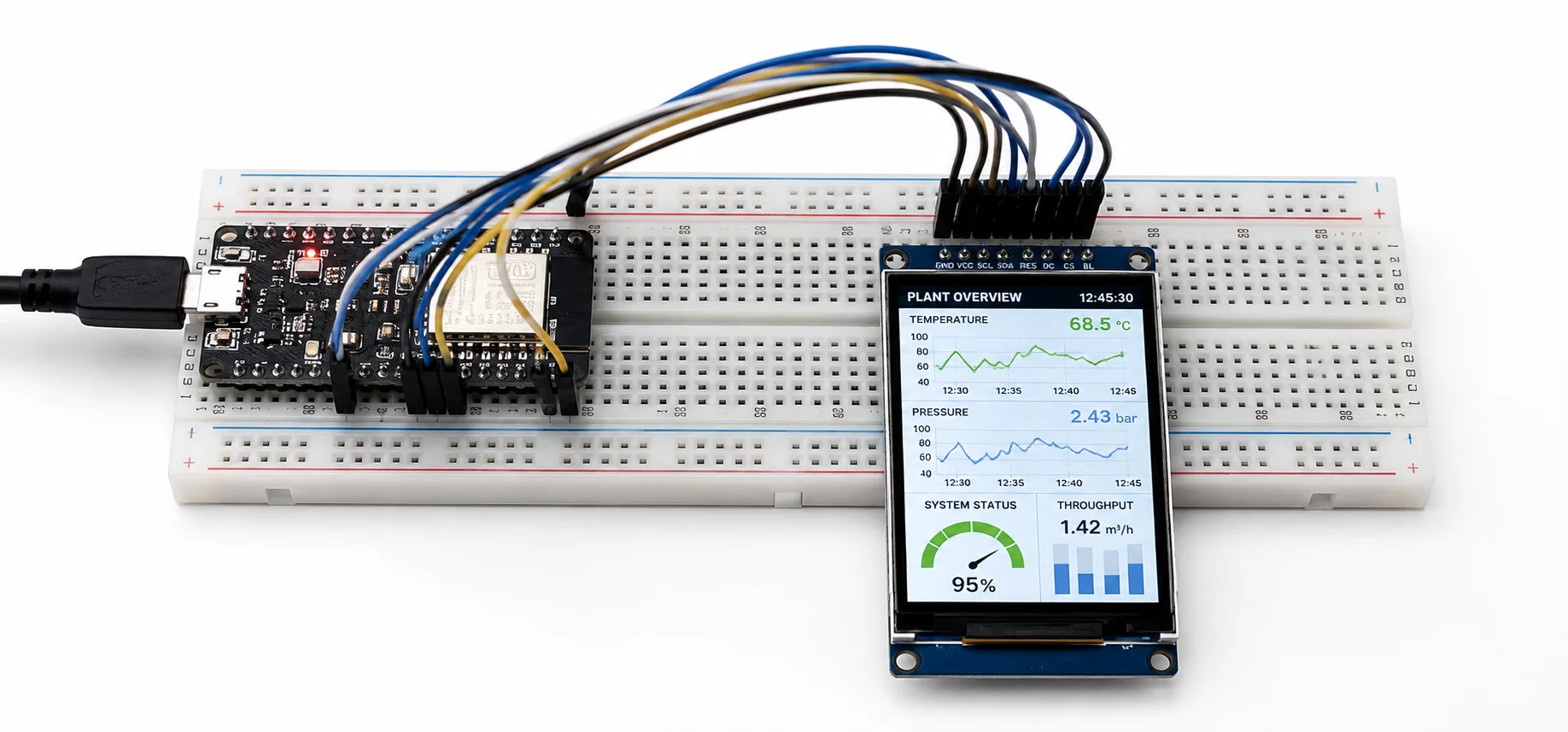

Small SPI Display Modules
Small SPI Display modules are suitable for selected compact devices where space, pin count and simple UI requirements need to be balanced.
Request Small SPI Display Options
MCU

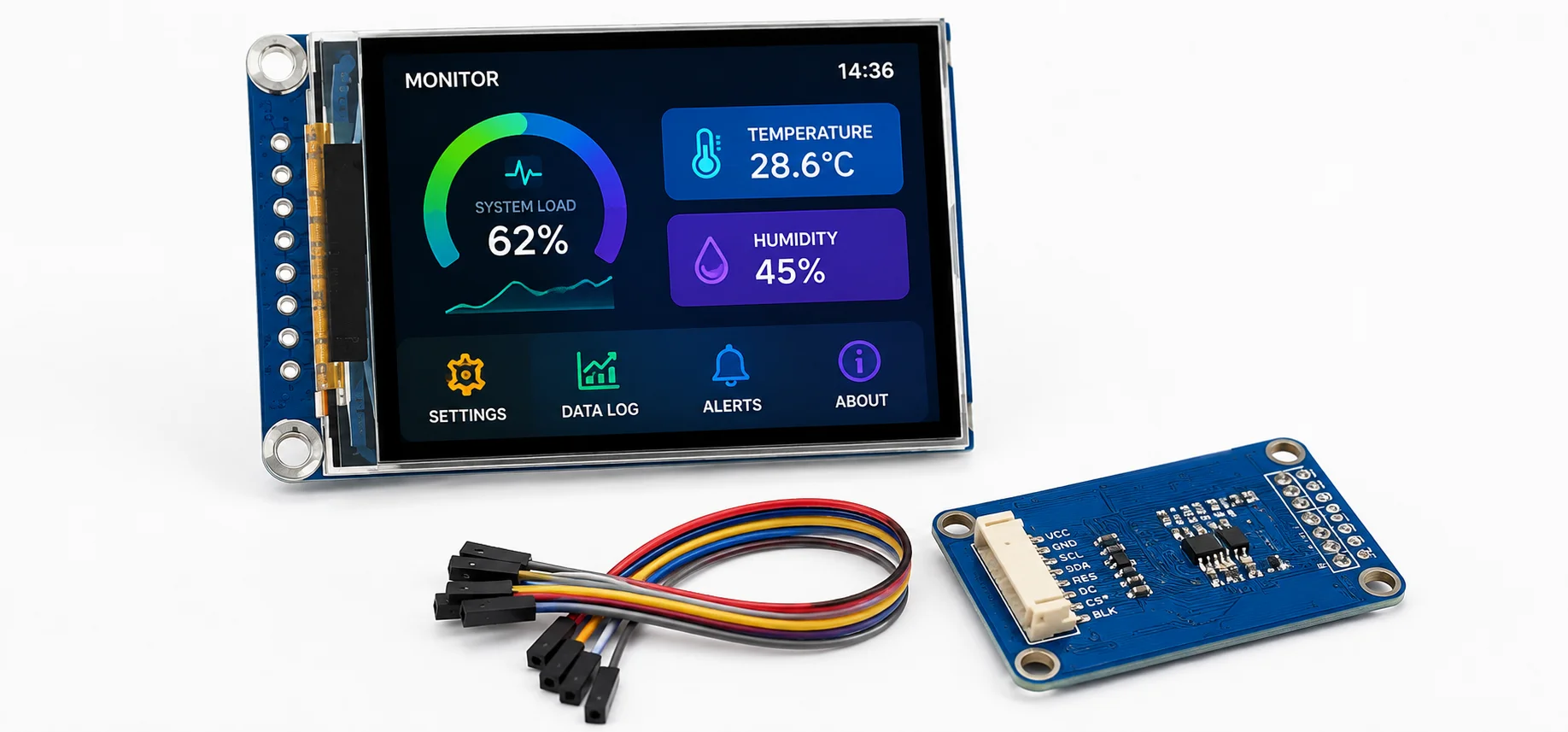

SPI Display for MCU-Based Devices
SPI Display are often considered for MCU-based systems where the host controller supports SPI communication and the UI does not require high-speed graphical refresh.
Check SPI TFT Options for MCU Platforms
Touch

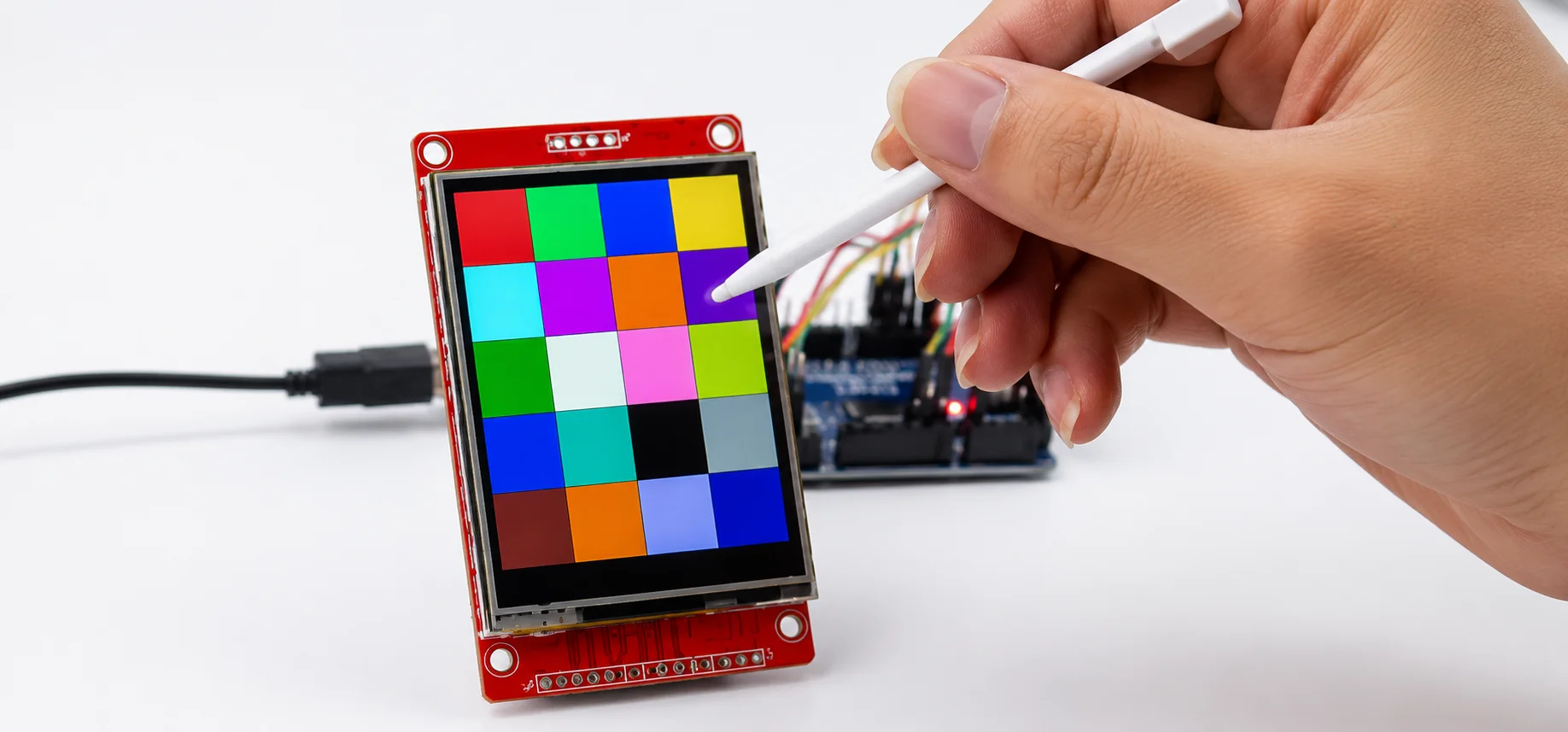

SPI Display with Touch
An SPI Display with touch is suitable when your product requires simple user interaction in a compact front-panel design. Touch selection should be checked together with touch interface, cover lens, bonding method, FPC routing and operating environment.
Review SPI Touch Display OptionsKey Advantages of SPI Display
Low Pin Count for Compact Designs
SPI Display reduce display signal line count compared with wider parallel interfaces. This makes them practical for compact embedded devices where PCB space, connector size and host I/O resources are limited.
Suitable for Simple Embedded UI
SPI TFT LCD modules are commonly used for values, icons, menus, warning indicators, status pages and parameter settings. Suitable refresh performance depends on display size, resolution, controller IC, update area and host capability.
Practical for MCU-Based Systems
SPI interface can be a practical display path for MCU-based devices, compact control terminals and portable electronics where the product does not require a high-speed video interface.
FPC, Pin Definition, Touch and Backlight Support
LMTEK helps align SPI Display selection with FPC direction, pin definition, touch matching, cover lens design, backlight brightness and mechanical structure. This helps your team validate the display as part of the complete embedded interface.
Ready to Evaluate an SPI Display?
Contact LMTEK for model selection, sample validation and production planning tailored to your application, host controller and project timeline.
Typical Applications of SPI Display

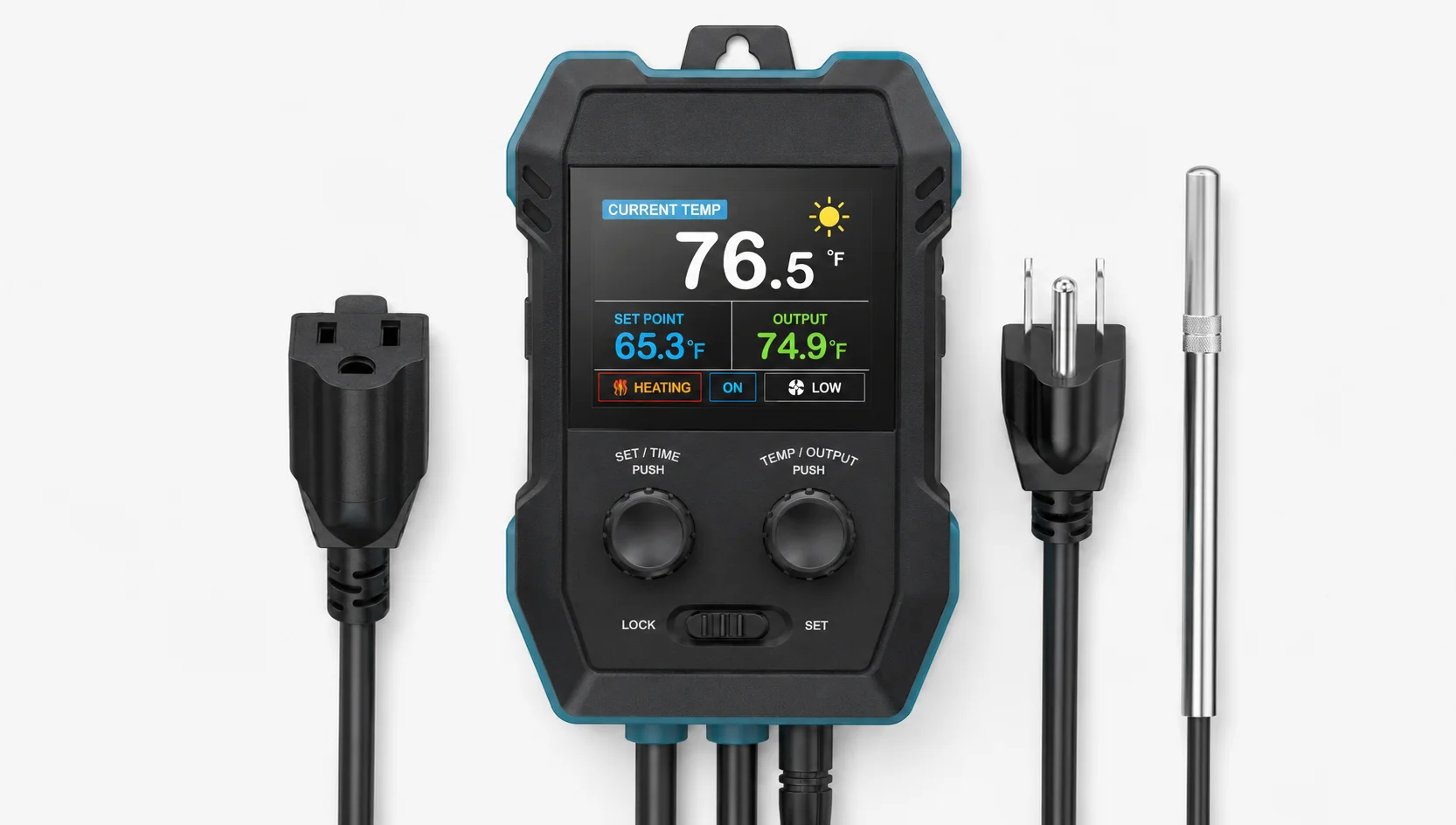

SPI Display for Compact Industrial Controllers
SPI Display can be used in small industrial controllers, status panels, equipment sub-interfaces and parameter setting terminals.

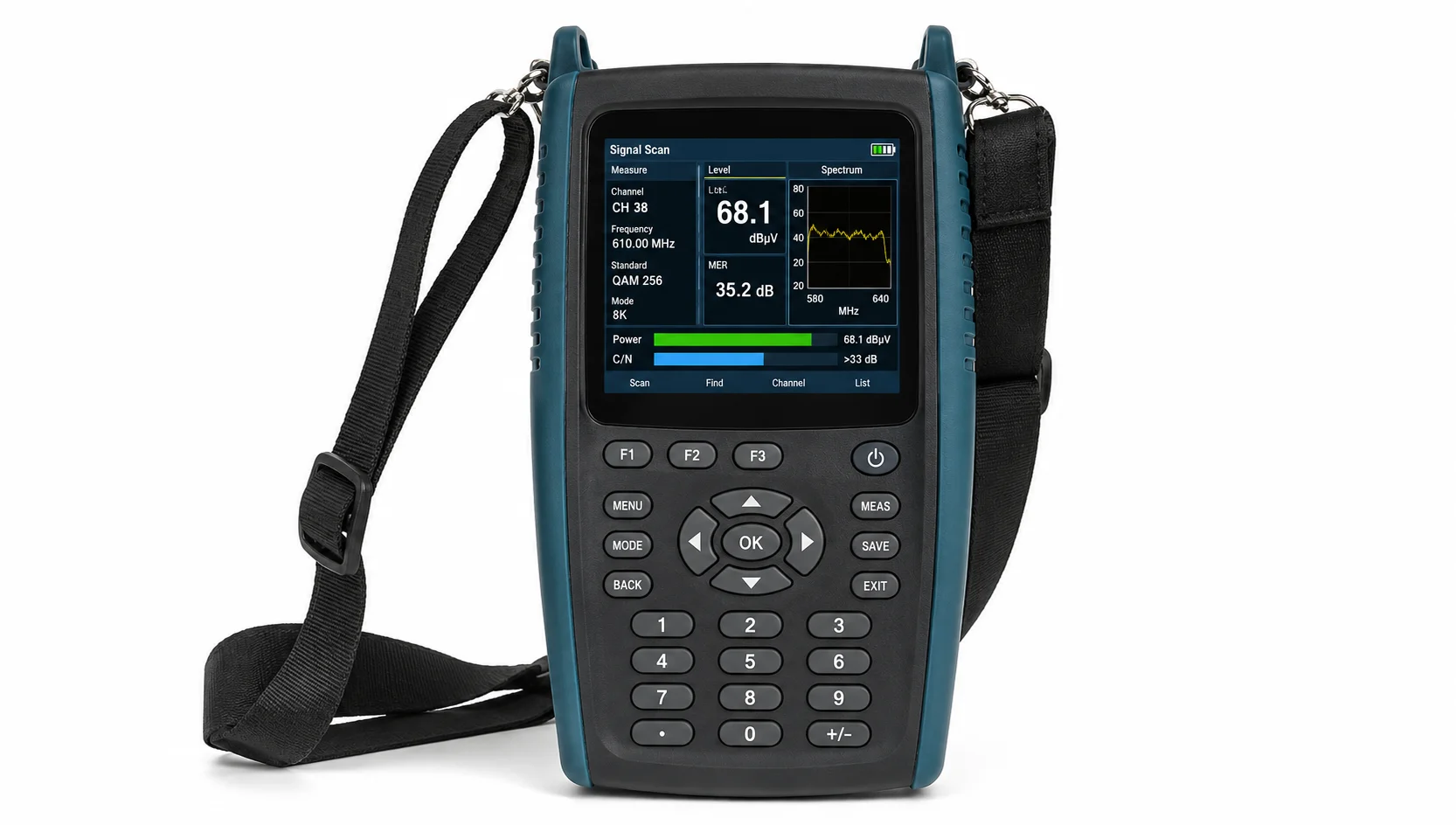

SPI TFT LCD for Portable Devices
SPI TFT LCD modules are suitable for portable instruments, handheld devices, measurement tools and compact monitoring equipment.

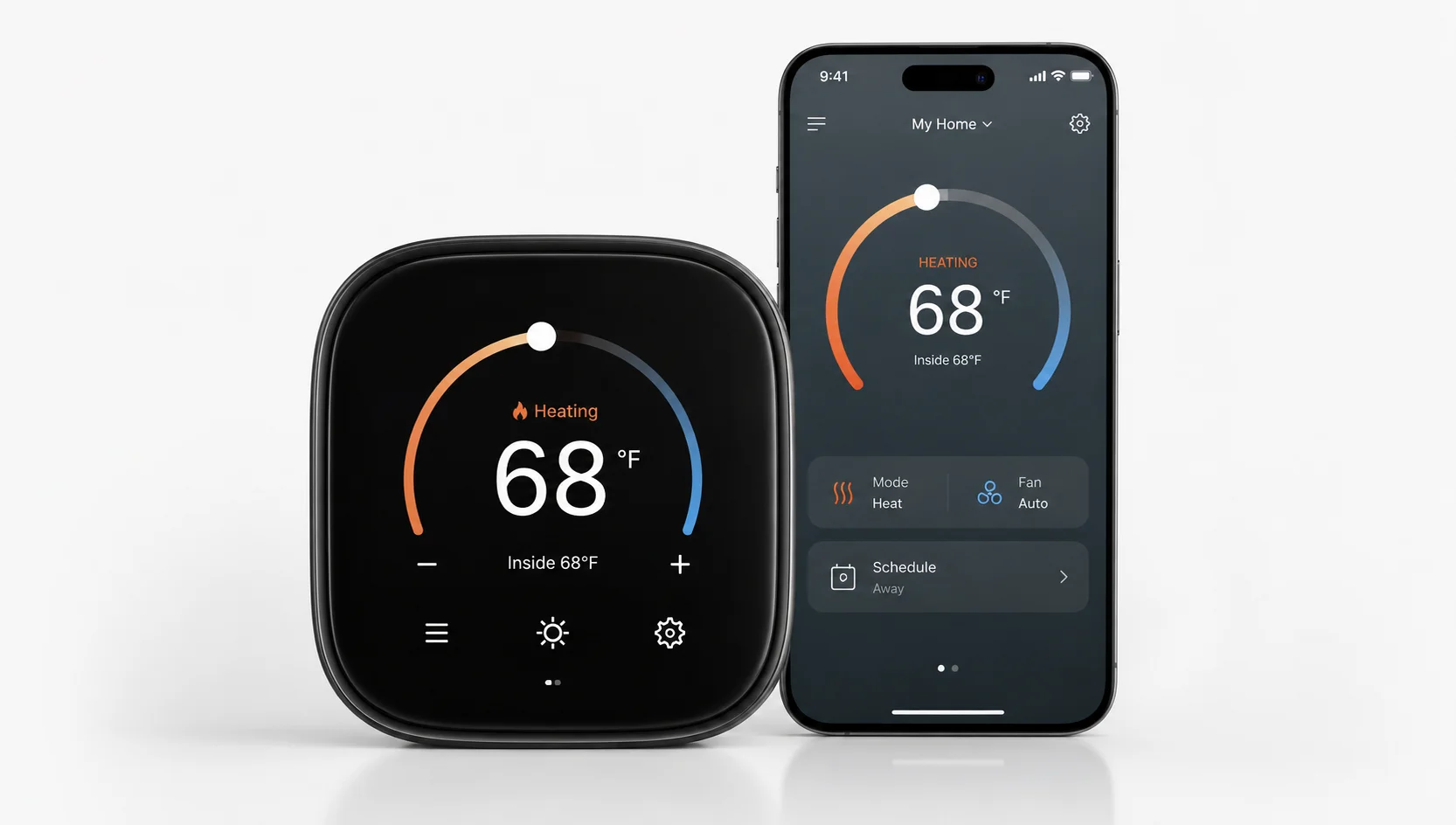

SPI Display Module for Smart Building Controls
SPI display modules can support small wall-mounted controllers, sensor terminals, HVAC sub-panels and compact smart building interfaces.

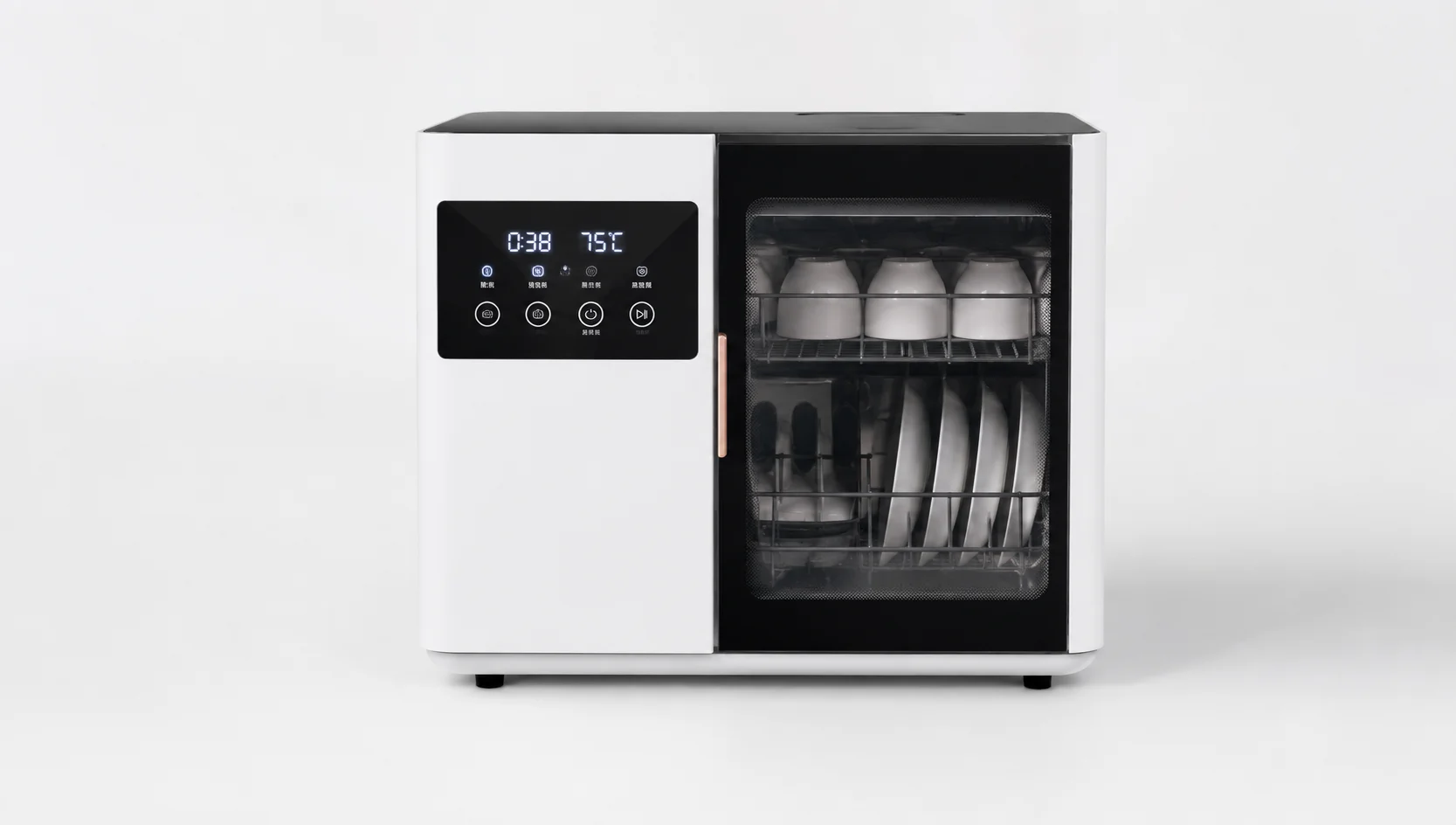

SPI Display for Appliance Interfaces
SPI Display may be used in appliance panels, kitchen equipment, white goods, mode selection interfaces and status feedback screens.

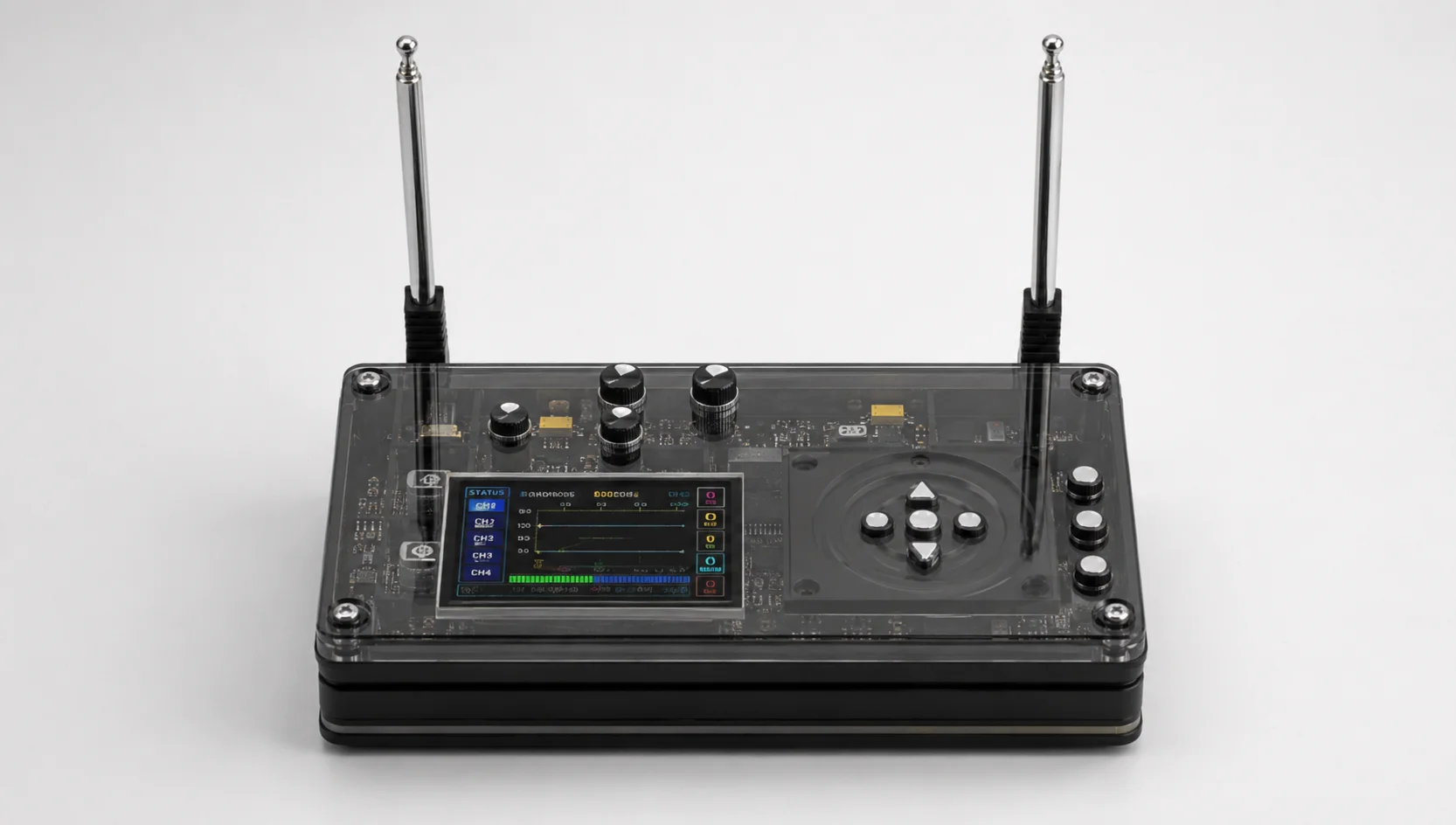

SPI Touch Display for Embedded Products
SPI touch displays may be considered for embedded products that need basic interaction, compact structure and display-touch integration in a small front-panel area.
How to Select an SPI Display Module
An SPI Display module should not be selected by size alone. Your team should confirm display size, resolution, SPI signal definition, controller IC, touch interface and FPC requirements before sample validation.
Display Size and Resolution
Confirm the target display size, resolution and UI content. SPI Display are often selected for small displays and simple UI, but final suitability depends on controller IC, SPI speed and host capability.
SPI Interface and Signal Definition
Confirm SCLK, MOSI, CS, DC, RESET, MISO or any additional control signals required by the selected module. Pin definition should be verified by datasheet.
Controller IC and Initialization Sequence
Check LCD controller IC, initialization sequence, command set, reference code and platform documentation before sample selection. These items are important for display bring-up.
Refresh Rate, Partial Update and UI Complexity
For SPI projects, refresh expectations should be evaluated by full-screen update frequency, partial update area, UI complexity and host firmware design. If your UI requires complex animation, video, frequent full-screen refresh or rich graphical transitions, RGB, MIPI, LVDS or HDMI may be more suitable than SPI.
FPC, Pinout and Mechanical Fit
Review FPC direction, connector pitch, pinout, mounting space and enclosure fit before validation. This can reduce PCB redesign and mechanical integration risk.
Touch Interface and Cover Lens
If touch is required, confirm whether the project needs RTP or PCAP, and check I²C, USB, SPI or other touch interface options together with cover lens, printing area and bonding method.
Brightness, Backlight and Power Budget
Check brightness, backlight voltage/current, PWM dimming requirement and power budget. Brightness should be confirmed by model and operating environment.

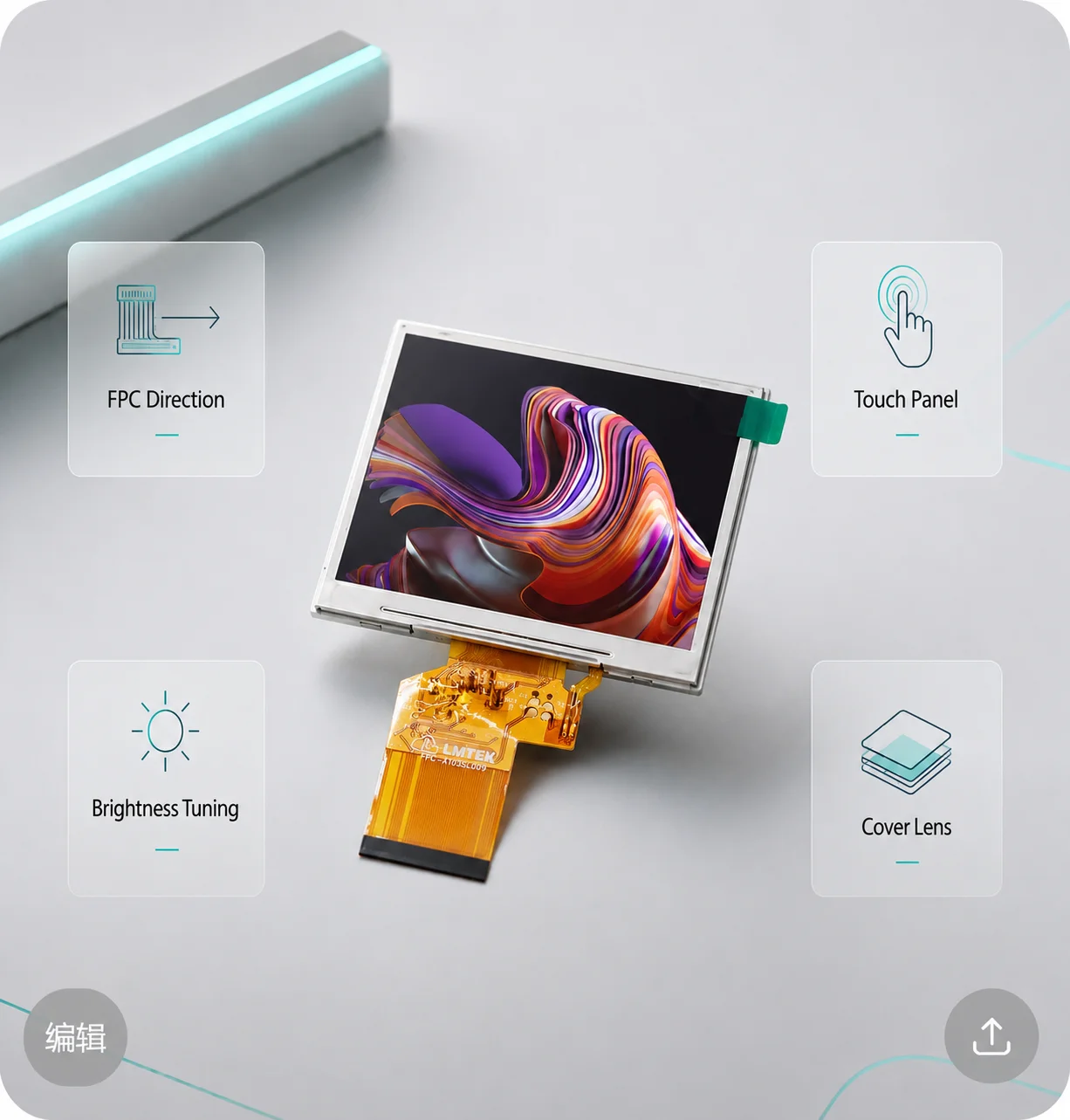

Need a Custom SPI Display?
Project-Based Support for FPC, Pin Definition, Touch and Backlight
If your project requires more than a standard SPI Display module, LMTEK can evaluate selected customization needs based on project feasibility and production requirements.
Typical requirements may include FPC direction, pin definition, SPI signal alignment, controller IC discussion, initialization support review, touch panel matching, cover lens design, brightness tuning, bonding method and mechanical fit.
For detailed customization options, please visit our Custom TFT Display page.
Related TFT Display Interface Categories

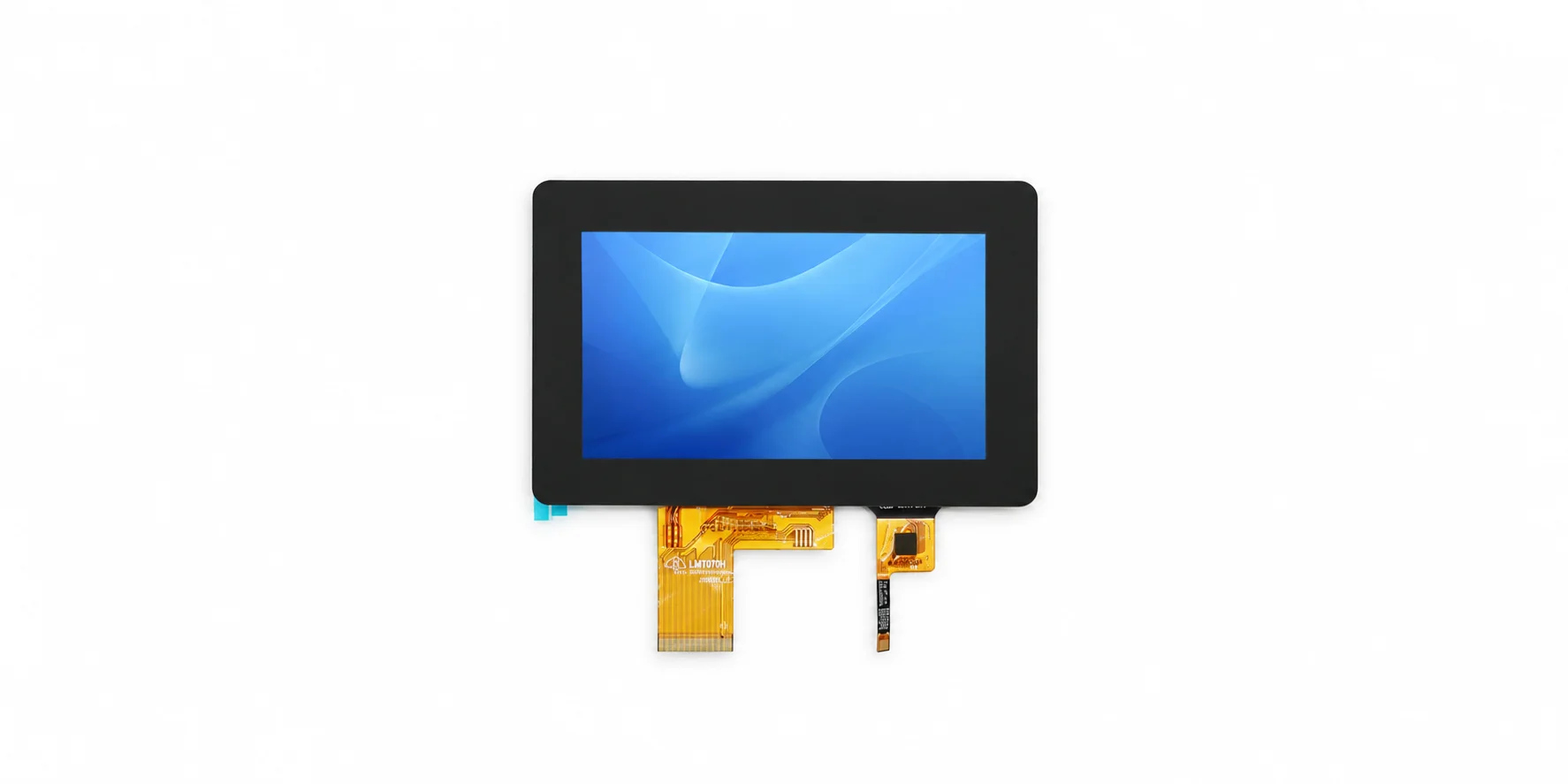

TFT Displays
Explore LMTEK TFT display modules with size, resolution, brightness, touch and interface options for industrial and embedded applications.
View TFT Displays

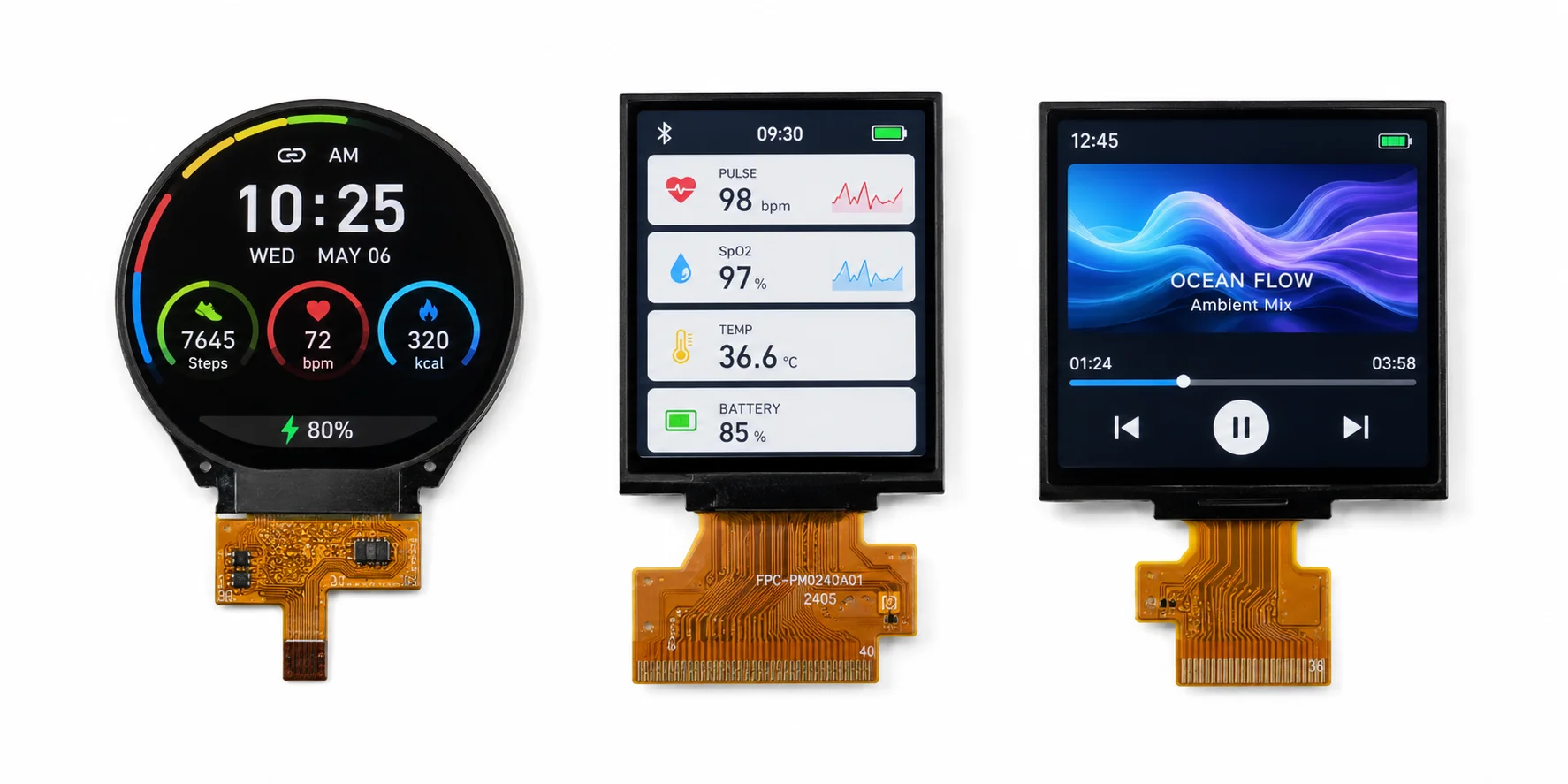

Custom TFT Displays
Need changes to FPC, pin definition, touch, backlight or mechanical fit? Review LMTEK's project-based custom TFT display options.
View Custom TFT Displays

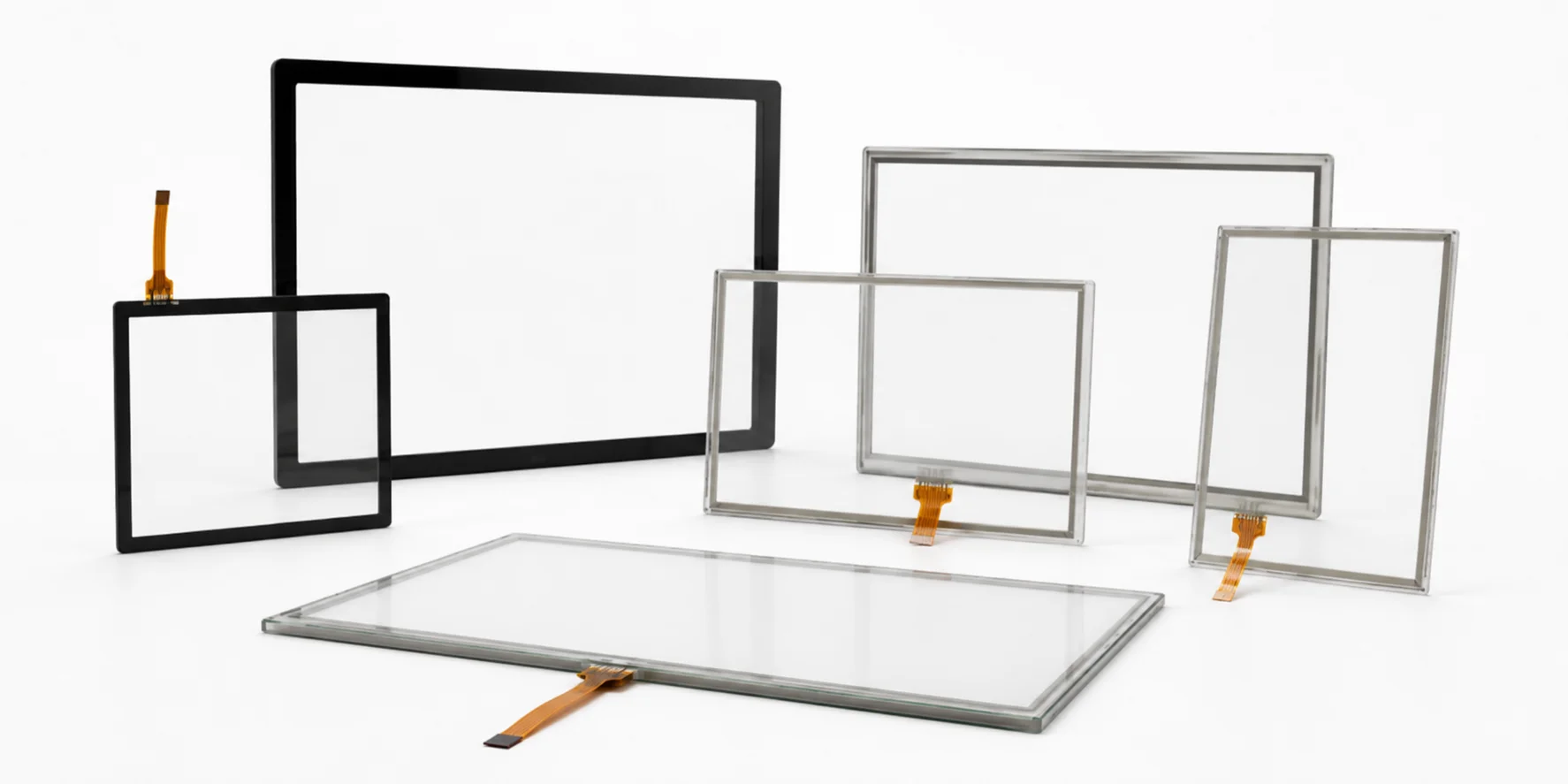

Touch Screens
Review resistive and capacitive touch screen options with cover lens, surface treatment, bonding and interface support.
View Touch Screens

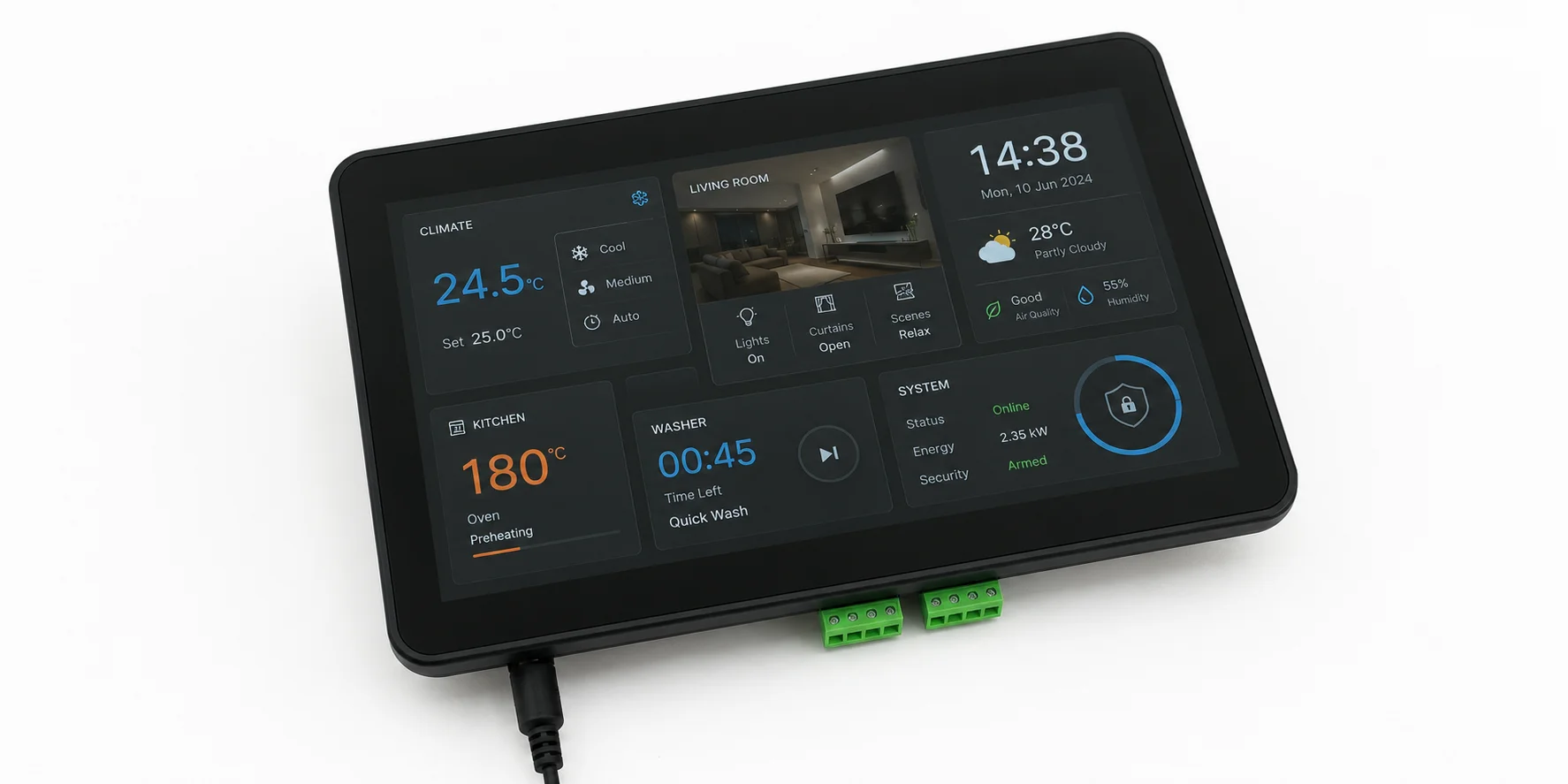

Embedded SBC / HMI-Ready Platform
Explore display, touch, embedded SBC, I/O and mechanical integration support for platform-based HMI development.
Explore HMI-Ready Platforms

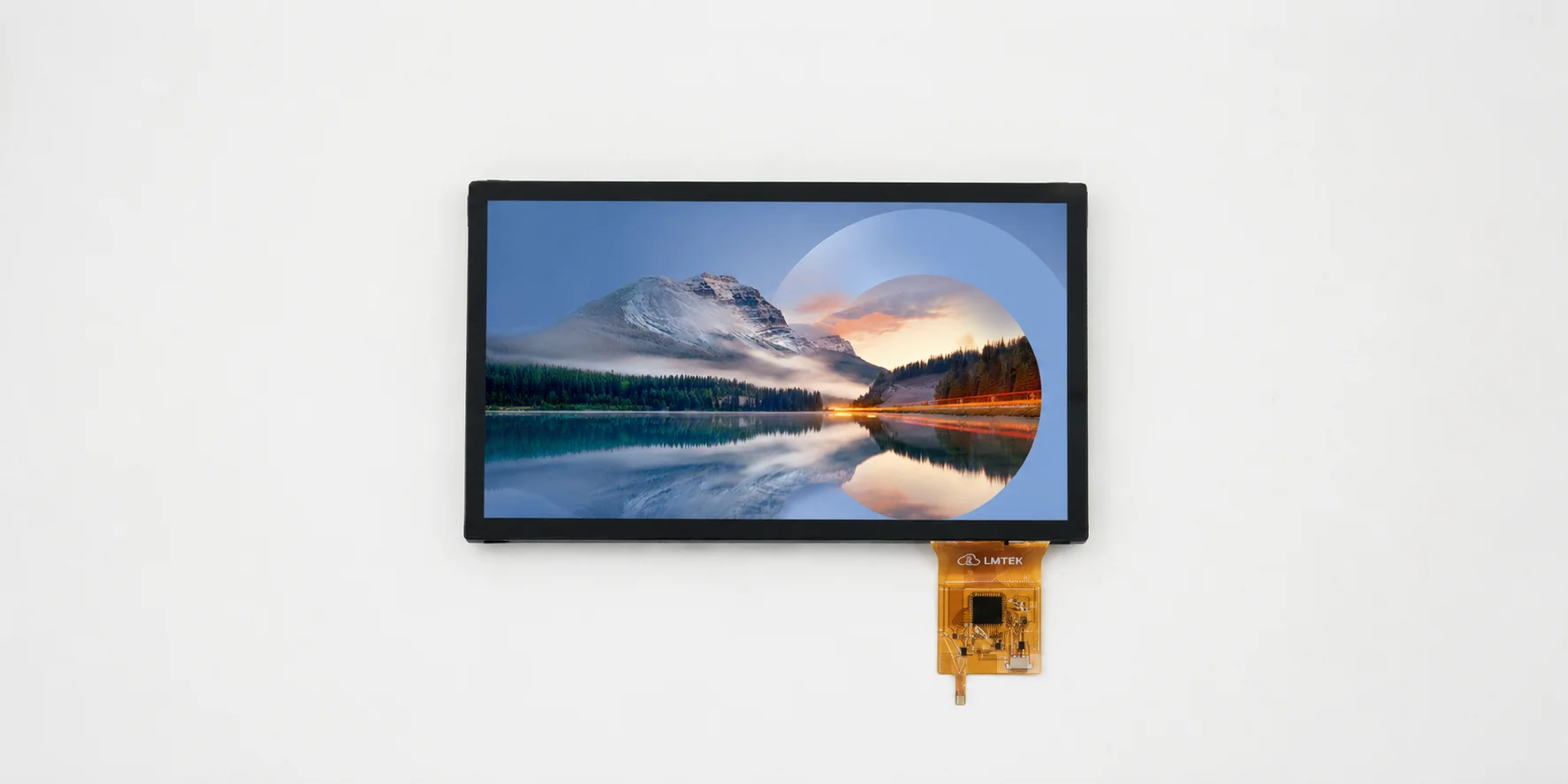

HDMI TFT Displays
Explore HDMI TFT display options for controller-board-based integration, SBC projects and fast sample validation.
View HDMI TFT Displays

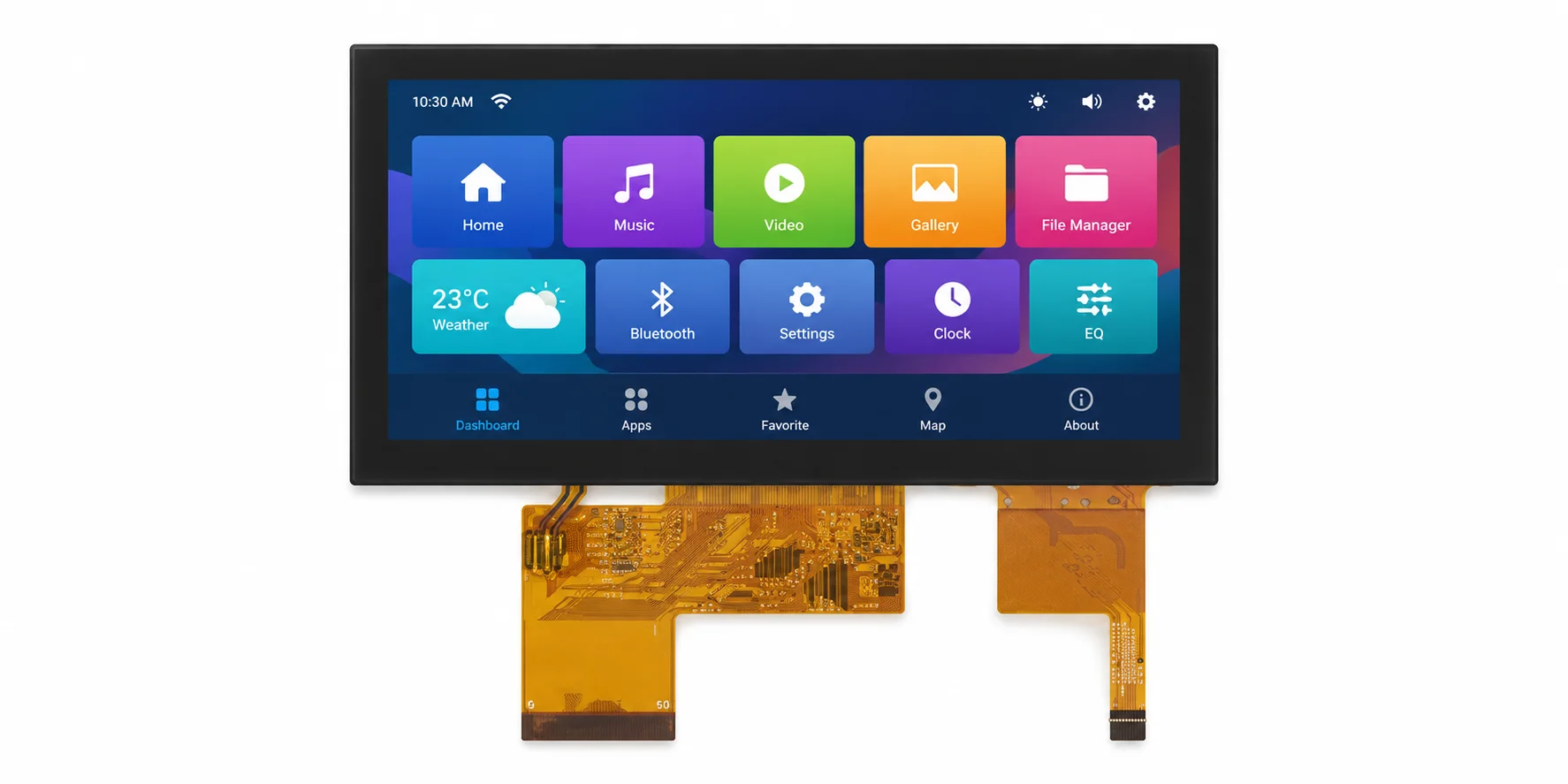

eDP Displays
Review eDP display options for high-resolution embedded computing platforms and industrial display systems.
View eDP Displays

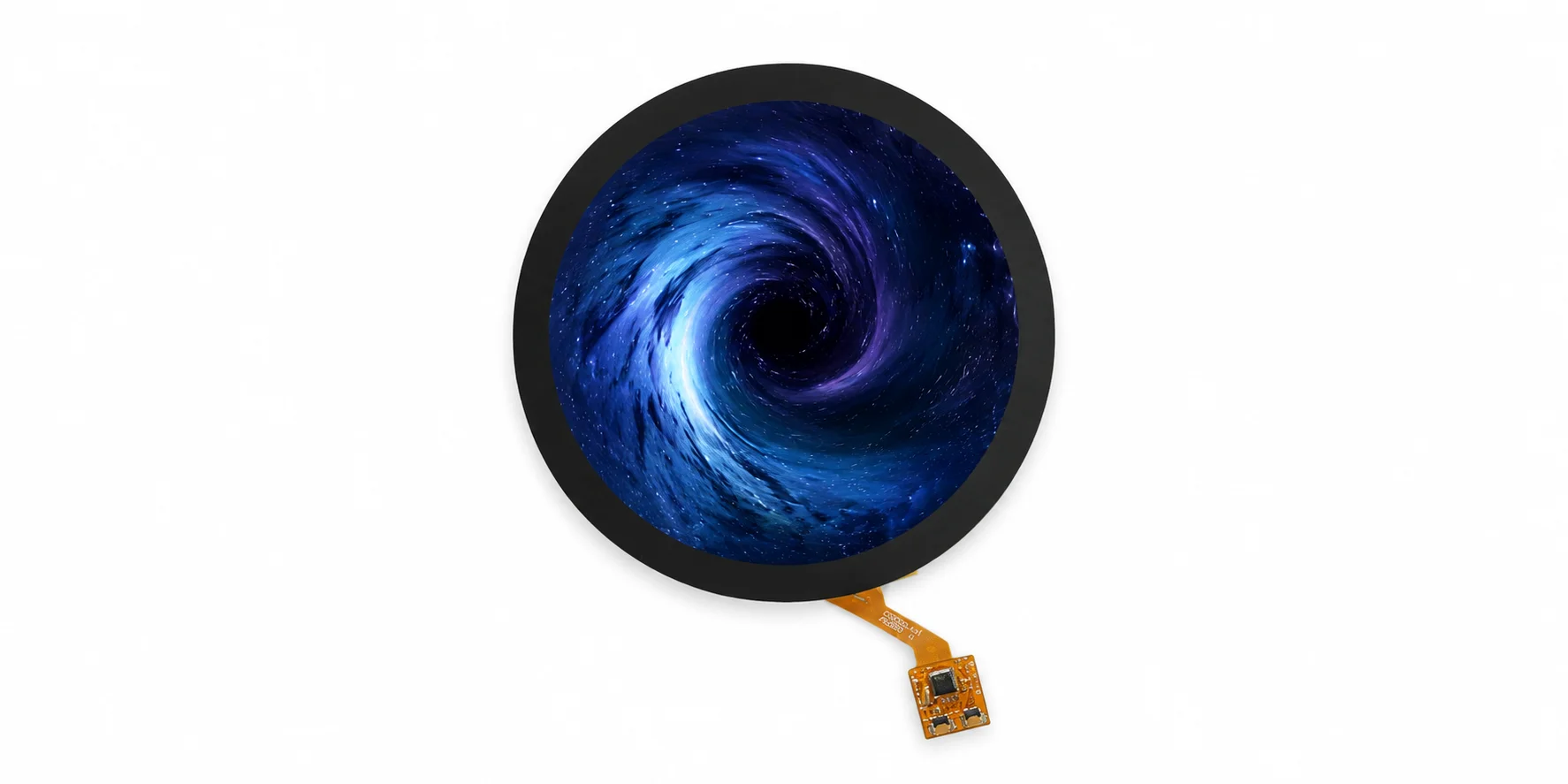

MIPI Displays
Explore MIPI DSI display options for compact embedded systems, SoC platforms and panel-level integration.
View MIPI Displays

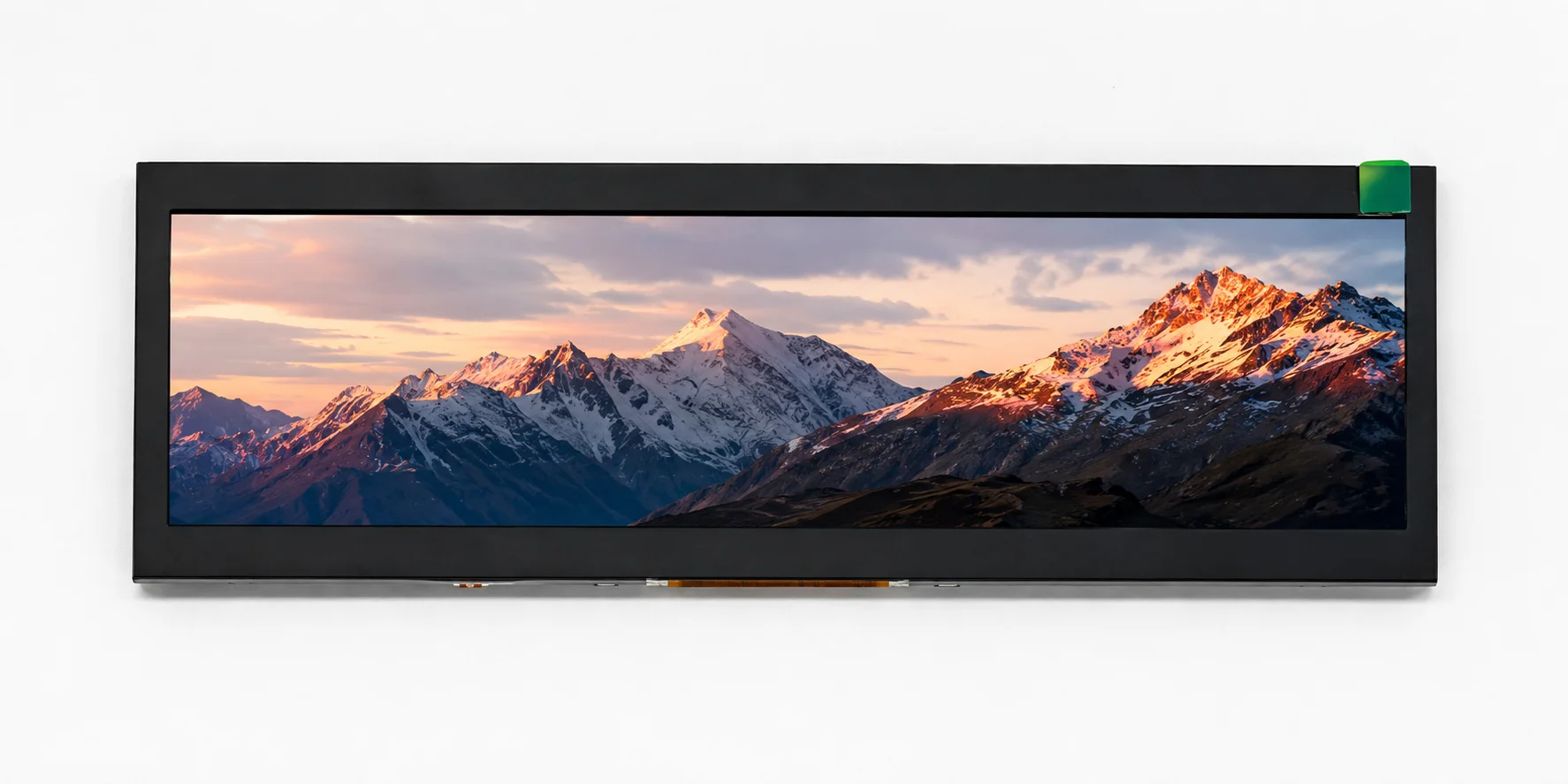

LVDS Displays
Review LVDS display options for industrial HMIs, larger TFT panels and applications that need stronger signal stability.
View LVDS DisplaysSPI Display FAQ
What is an SPI Display?
What is the difference between SPI Display and MCU TFT display?
What is the difference between SPI Display and RGB TFT display?
Is SPI suitable for high-resolution TFT displays?
Can SPI Display support touch?
Which applications are suitable for SPI Display?
Can LMTEK customize the FPC or pin definition for SPI Display?
Share Your SPI Display Requirements
Send us your target specifications and application details. LMTEK will review your display size, resolution, SPI interface, controller IC, touch requirement and mechanical constraints to help recommend a suitable SPI Display module or customization path.
Recommended Information to Submit
- Target display size
- Resolution requirement
- SPI interface requirement
- Host controller or MCU platform
- Controller IC requirement, if any
- SPI mode / frequency requirement, if available
- Expected UI content and refresh requirement
- Full-screen or partial update expectation
- Pin definition or existing FPC drawing
- Touch requirement: no touch / RTP / PCAP
- Touch interface: I2C / USB / SPI / other
- Brightness requirement
- Backlight control method
- Operating environment
- Application and expected annual volume
- Existing datasheet or reference panel
- Sample and production timeline
